Connector Identification

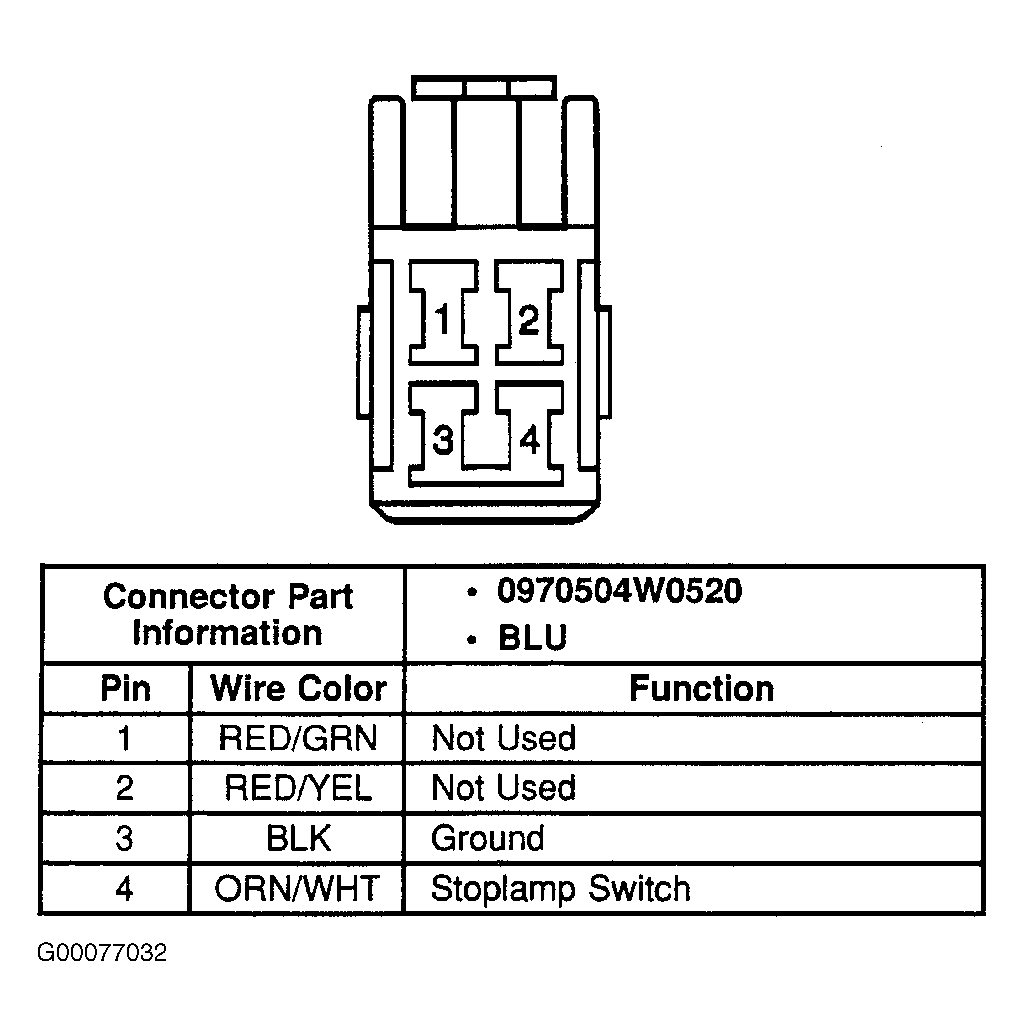

Fig 1: Identifying Shift Lock Control Solenoid Connector Terminals

Courtesy of GENERAL MOTORS CORP.

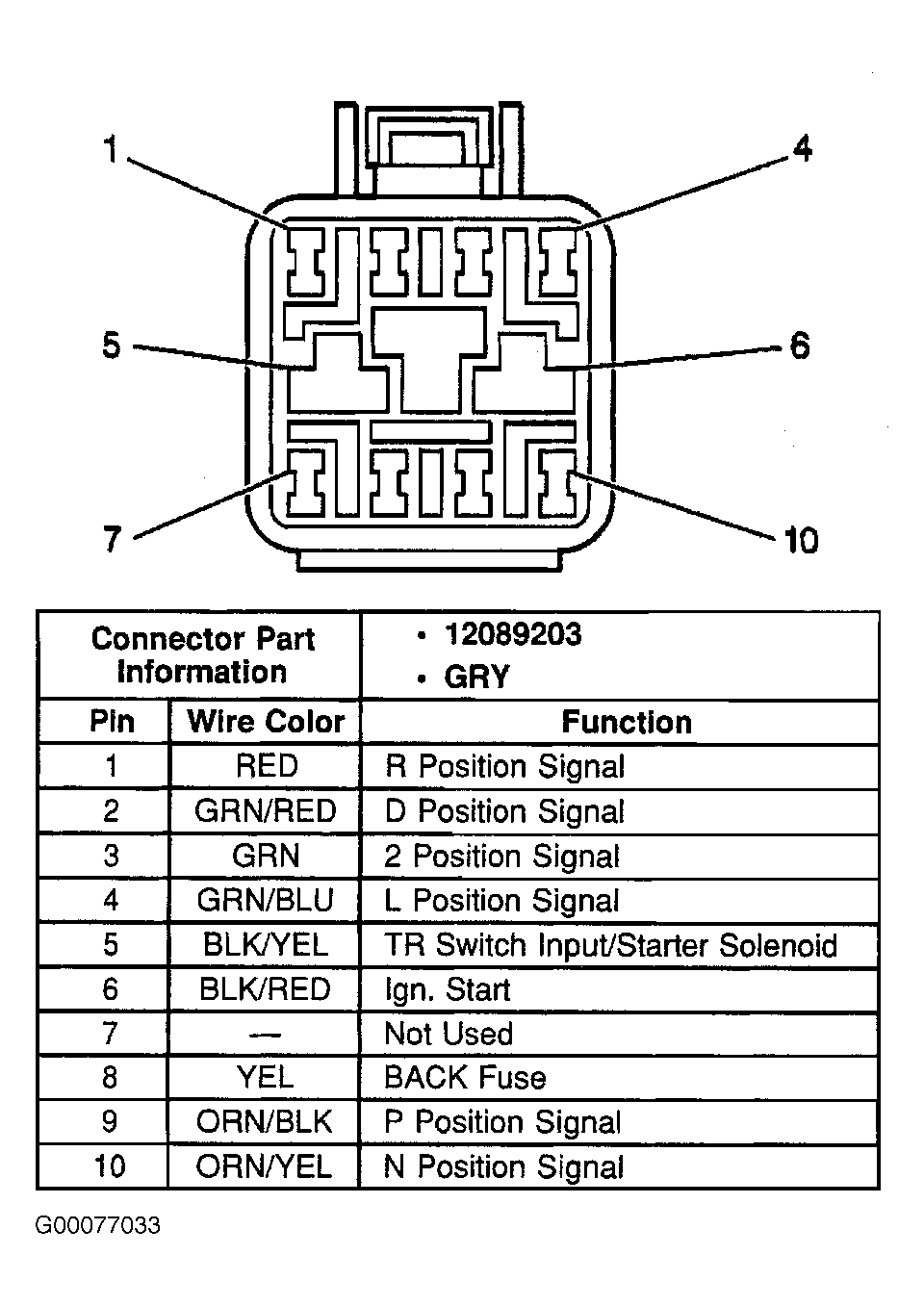

Fig 2: Identifying Transaxle Range Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.
