Cruise Control Switch: Installation

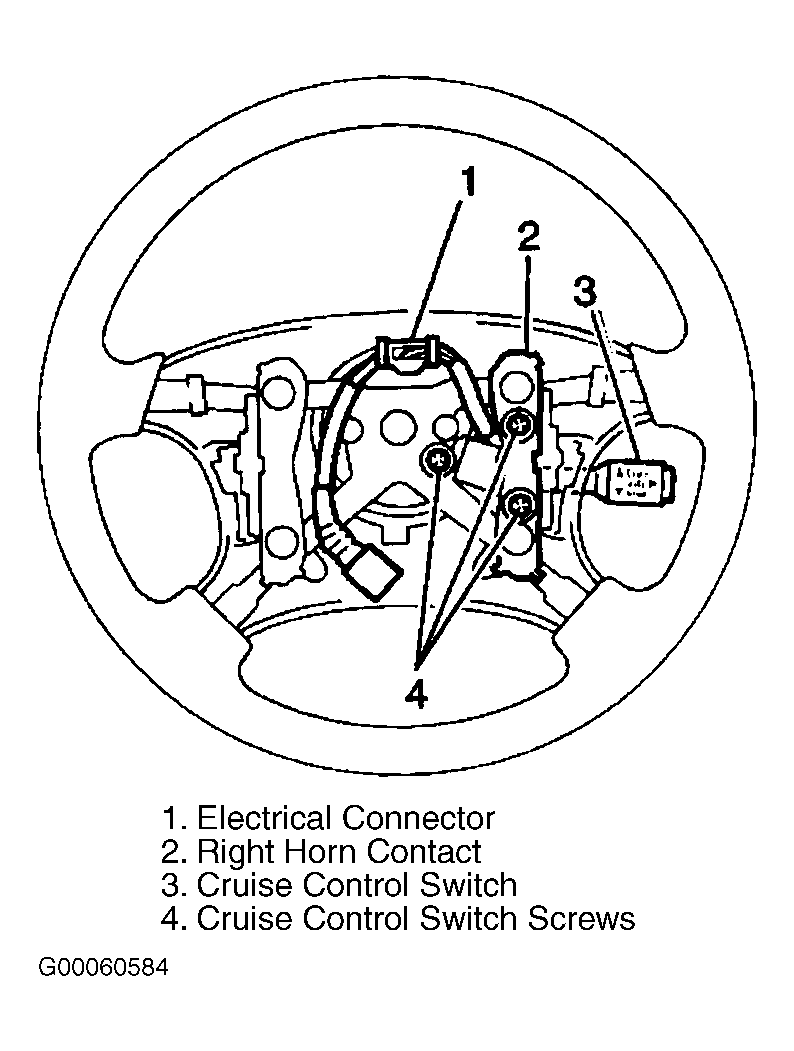

- Install cruise control switch (3) to vehicle. Secure switch with 3 screws (4). See Figure .
- Install right horn contact (2) to steering wheel. Secure contact with 2 Allen head bolts. Tighten horn contact bolts to 78 INCH lbs. (8.8 N.m).
- Install Red/Blue wire (2) to cruise control switch electrical connector (1). See Figure .
- Close TPA on top of cruise control switch electrical connector.
- Connect cruise control switch electrical connector (1) to steering wheel inflatable restraint module coil. See Figure .
- Install the steering wheel inflatable restraint module. See appropriate AIR BAG RESTRAINT SYSTEMS article.
