Accelerator Pedal (4.8L/5.3L/6.0L)

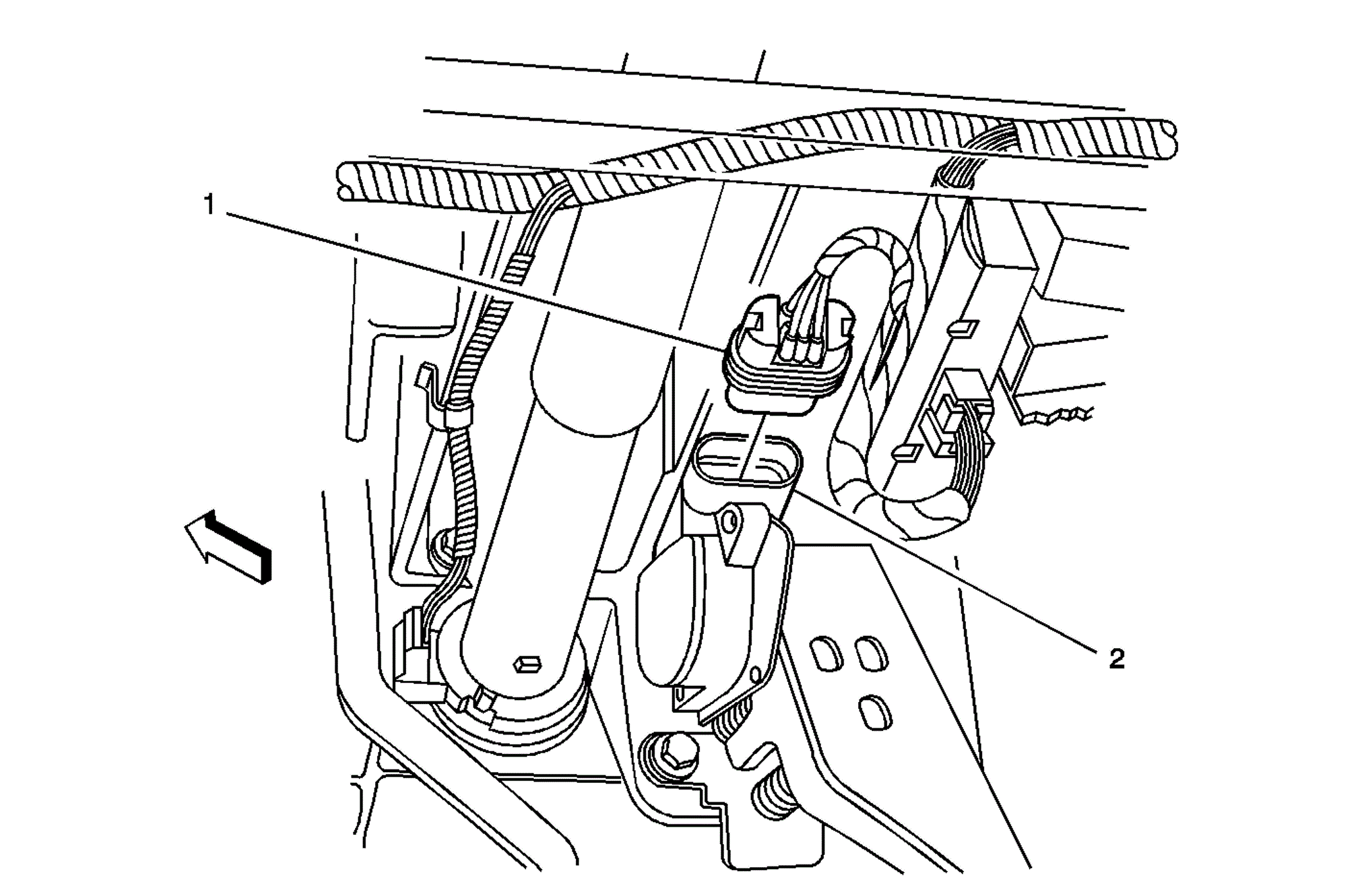

Fig 1: Accelerator Pedal
GM776287Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 APP Sensor Connector
2 APP Sensor
