Installation Procedure

Apply J 36850 to the input shaft bearing retainer seal surface.

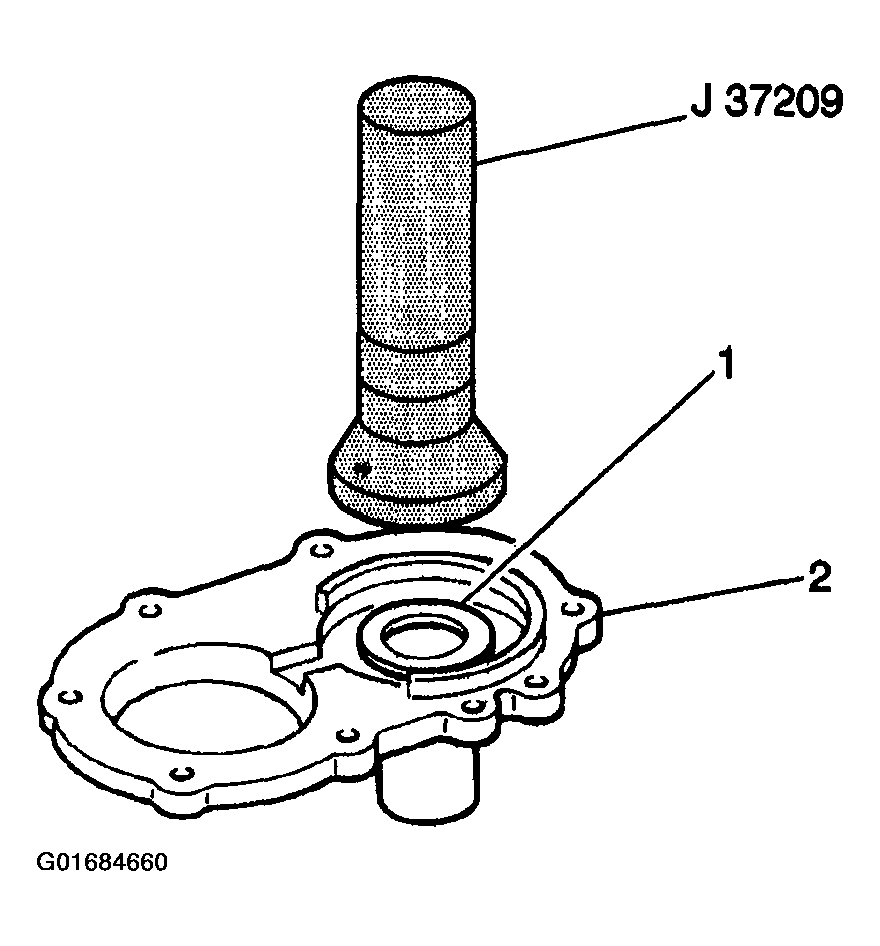

Use a hammer and the J 37209 in order to install the new front input shaft oil seal (1) into the input shaft bearing retainer (2).

Fig 1: Installing Front Input Shaft Oil Seal

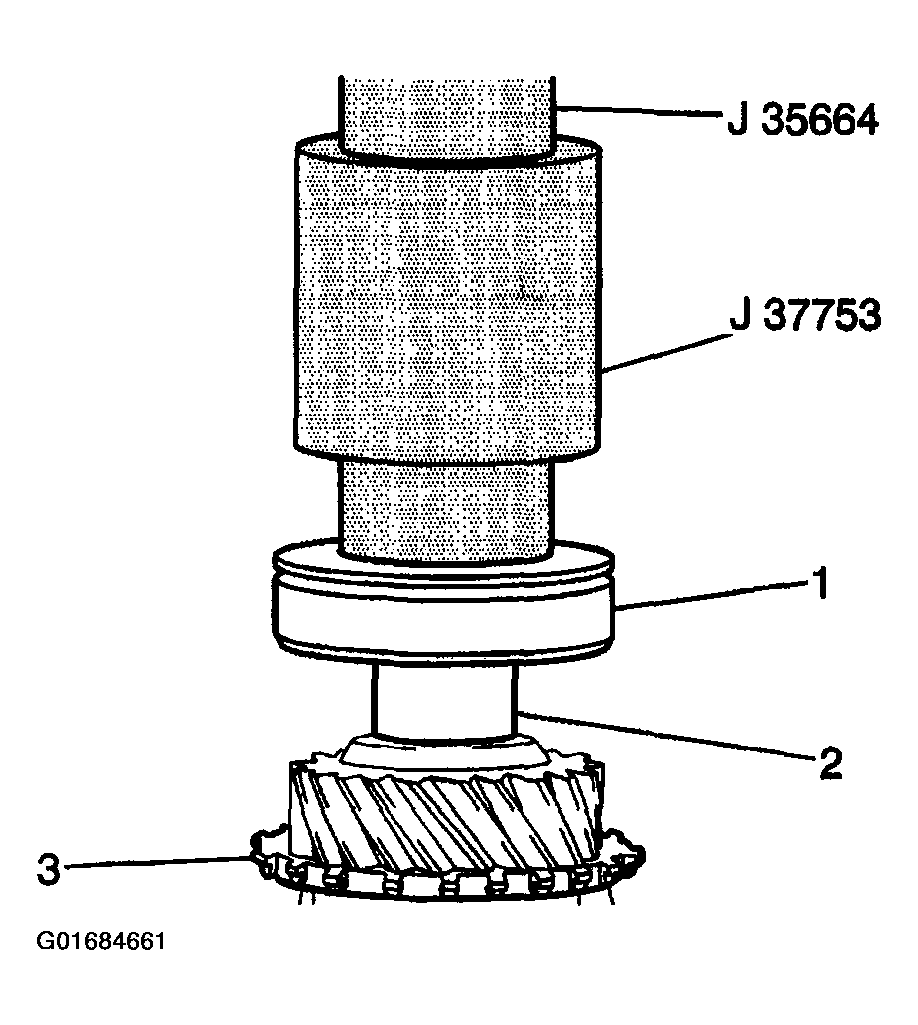

Use the J 37753 with the J 35664 and a press arbor in order to install the front input shaft bearing (1) onto the input shaft (2).

Fig 2: Installing Front Input Shaft Bearing
Install the front input shaft bearing C-clip (2) onto the input shaft.

Fig 3: Identifying Front Input Shaft Bearing C-Clip
Air-blow the lubrication oil hole (1).
Apply J 36850 to the input shaft needle bearing.

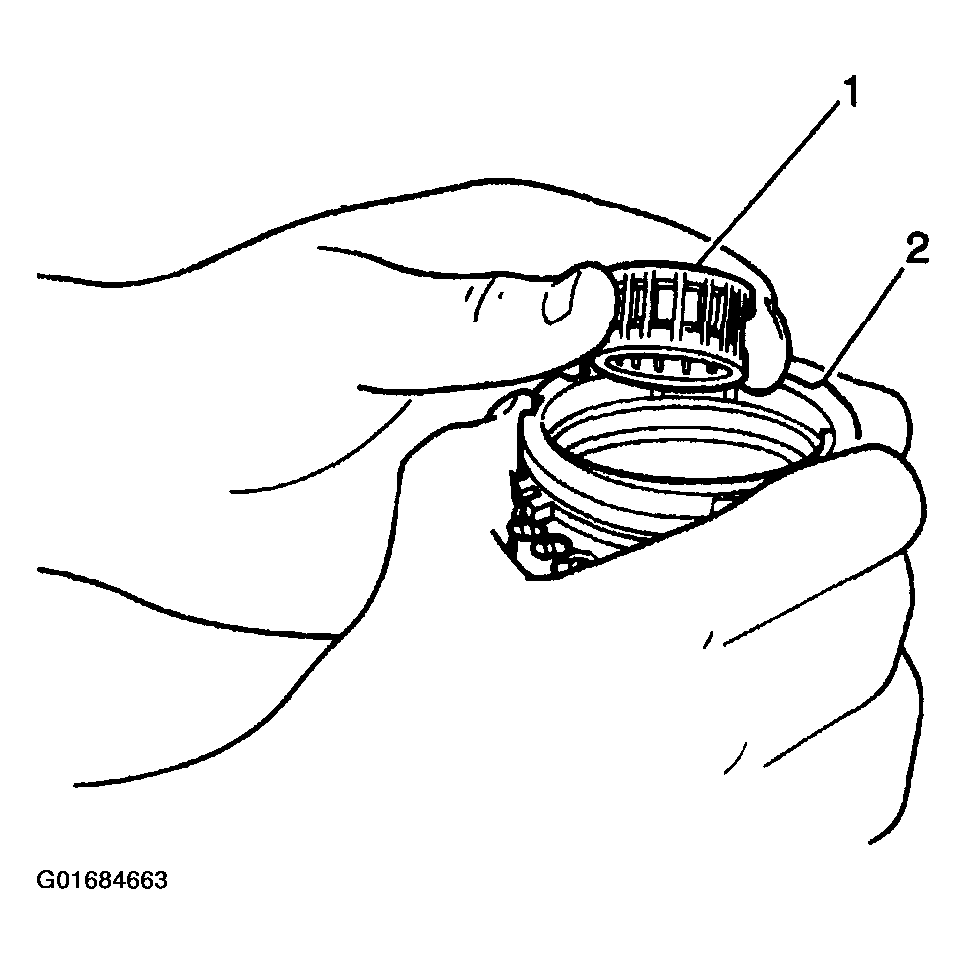

Install the input shaft needle bearing (1) into the input shaft (2).

Fig 4: Installing Input Shaft Needle Bearing
