Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 - Fig 3 .

COMPONENT LOCATIONS

Component	Location
Body Control Module	Below Right Side Of Instrument Panel, Right Of Glove Box
Data Link Connector	Below Steering Column, Bottom Of Knee Bolster
Instrument Panel Fuse Block	Behind Right Side Instrument Panel Endcap
Rear Side Door Actuator Control Module	Part Of Side Door Actuator Motor In Right Quarter Panel
Remote Control Door Lock Receiver	Behind Center Of Dash, Near Defrost Vent
Underhood Accessory Wiring Junction Block	In Engine Compartment, Above Battery

Fig 1: Locating Body Control Module

Courtesy of GENERAL MOTORS CORP.

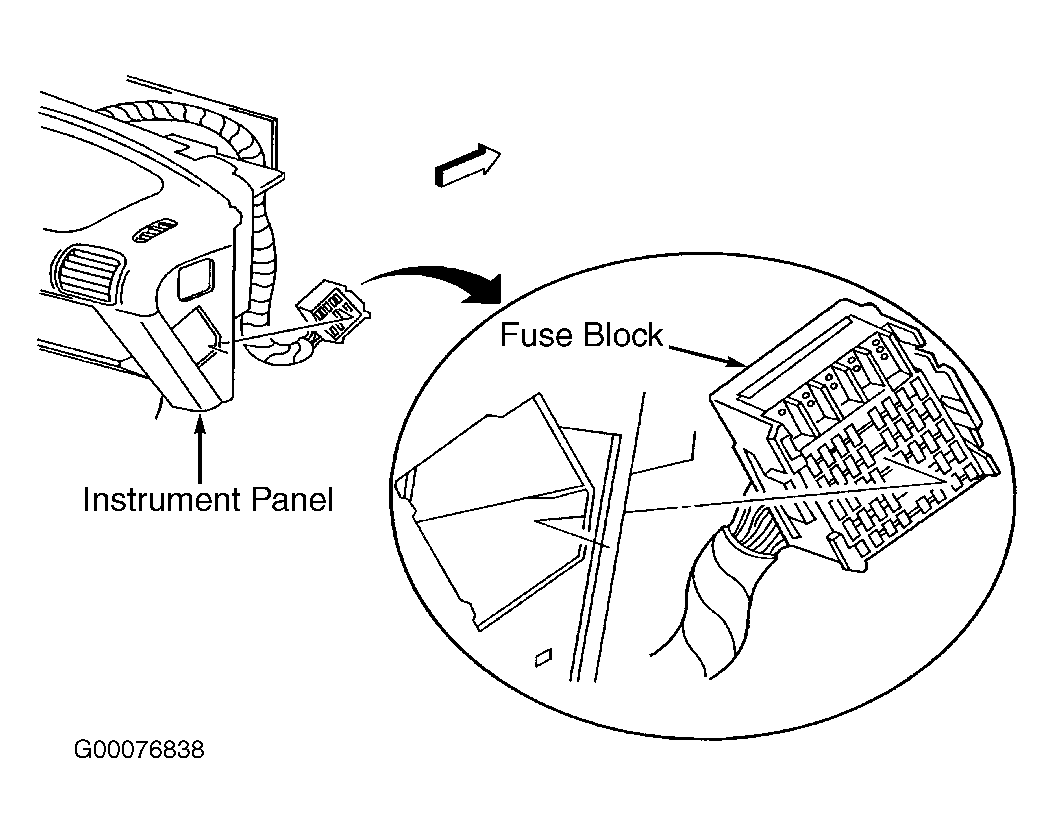

Fig 2: Locating Instrument Panel Fuse Block

Courtesy of GENERAL MOTORS CORP.

Fig 3: Locating Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS CORP.
