Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

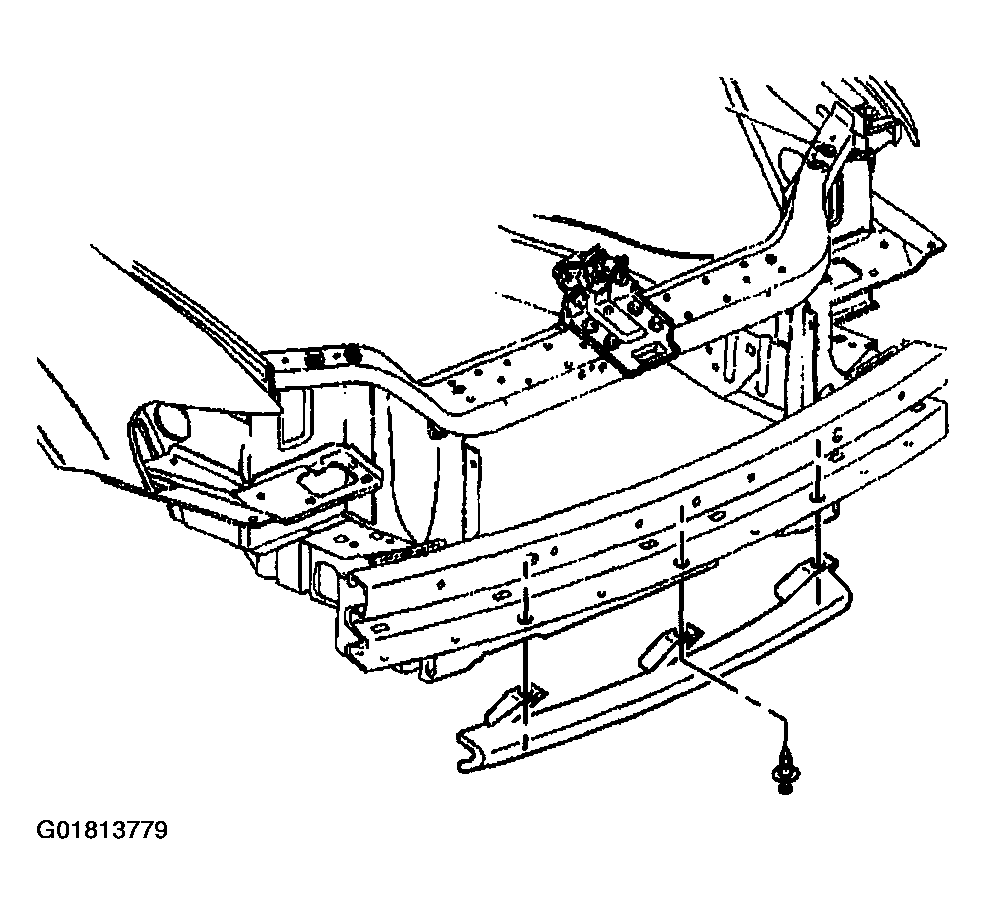

Fig 1: Installing Push-In Retainers & Front Bumper Fascia Lower Support (Chevrolet)
G01813779Courtesy of GENERAL MOTORS CORP.
  1. Install the front bumper fascia lower support to the front impact bar.
  2. Install the push-in retainers to the front bumper fascia lower support.
  3. Install the front bumper fascia. Refer to Fascia Replacement - Front Bumper (Pontiac)  or Fascia Replacement - Front Bumper (Chevrolet)  or Fascia Replacement - Front Bumper (Oldsmobile) .

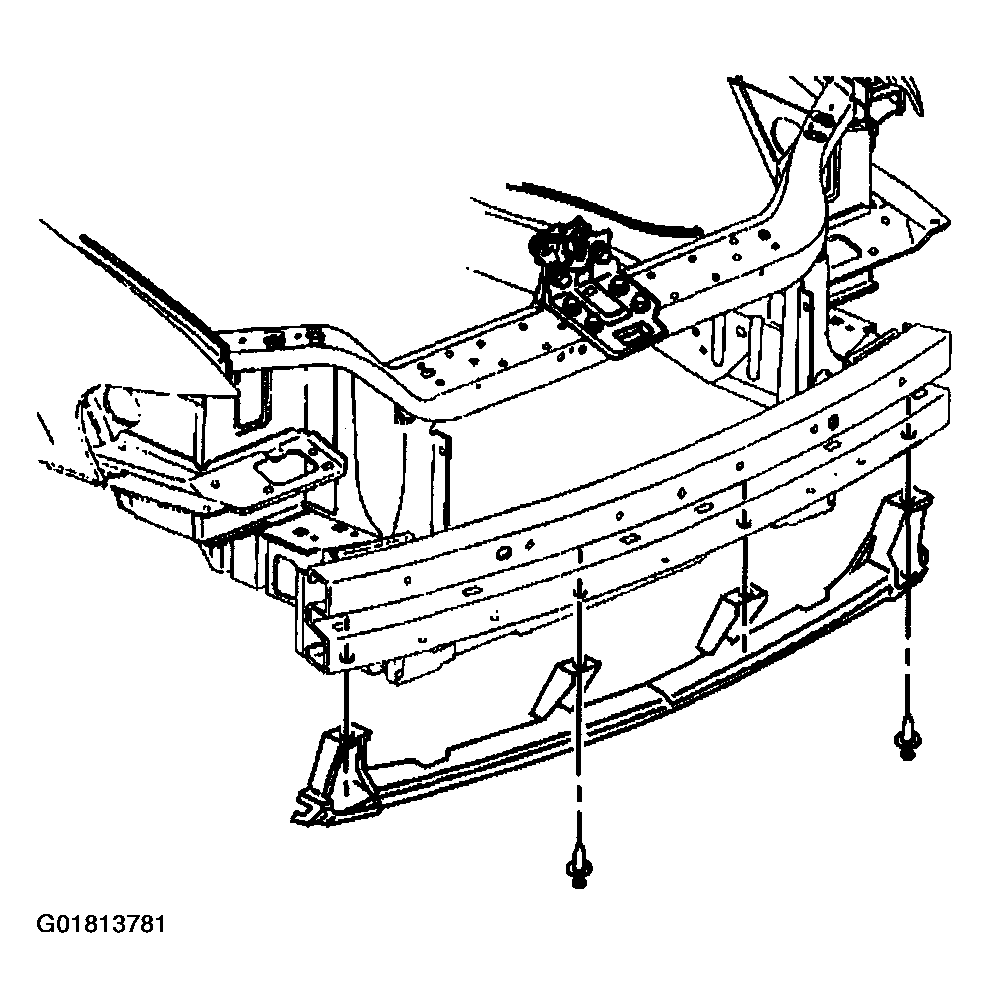

Fig 1: Installing Push-In Retainers & Front Bumper Fascia Lower Support (Oldsmobile)
G01813781Courtesy of GENERAL MOTORS CORP.
  1. Install the front bumper fascia lower support to the front impact bar.
  2. Install the push-in retainers to the front bumper fascia lower support.
  3. Install the front bumper fascia. Refer to Fascia Replacement - Front Bumper (Pontiac)  or Fascia Replacement - Front Bumper (Chevrolet)  or Fascia Replacement - Front Bumper (Oldsmobile) .

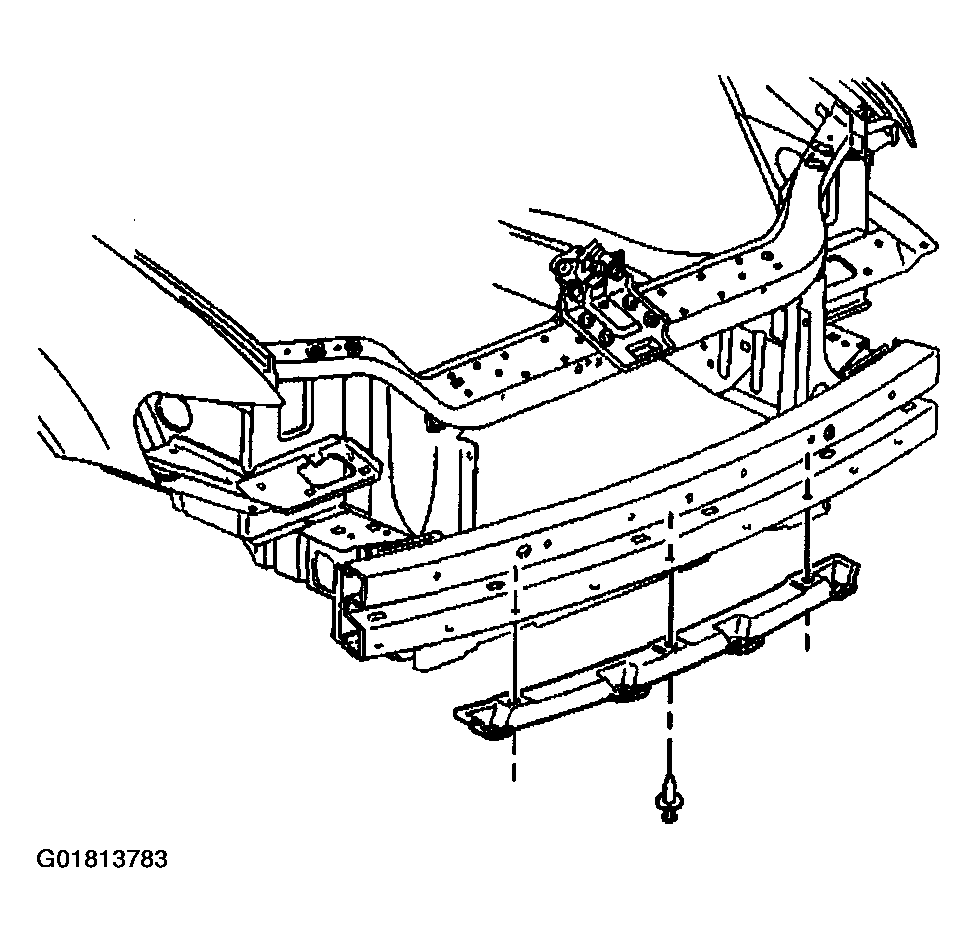

Fig 1: Installing Push-In Retainers & Front Bumper Fascia Lower Support (Pontiac)
G01813783Courtesy of GENERAL MOTORS CORP.
  1. Install the front bumper fascia lower support to the front impact bar.
  2. Install the push-in retainers to the front bumper fascia lower support.
  3. Install the front bumper fascia. Refer to Fascia Replacement - Front Bumper (Pontiac)  or Fascia Replacement - Front Bumper (Chevrolet)  or Fascia Replacement - Front Bumper (Oldsmobile) .
