Keyless Entry System Inoperative

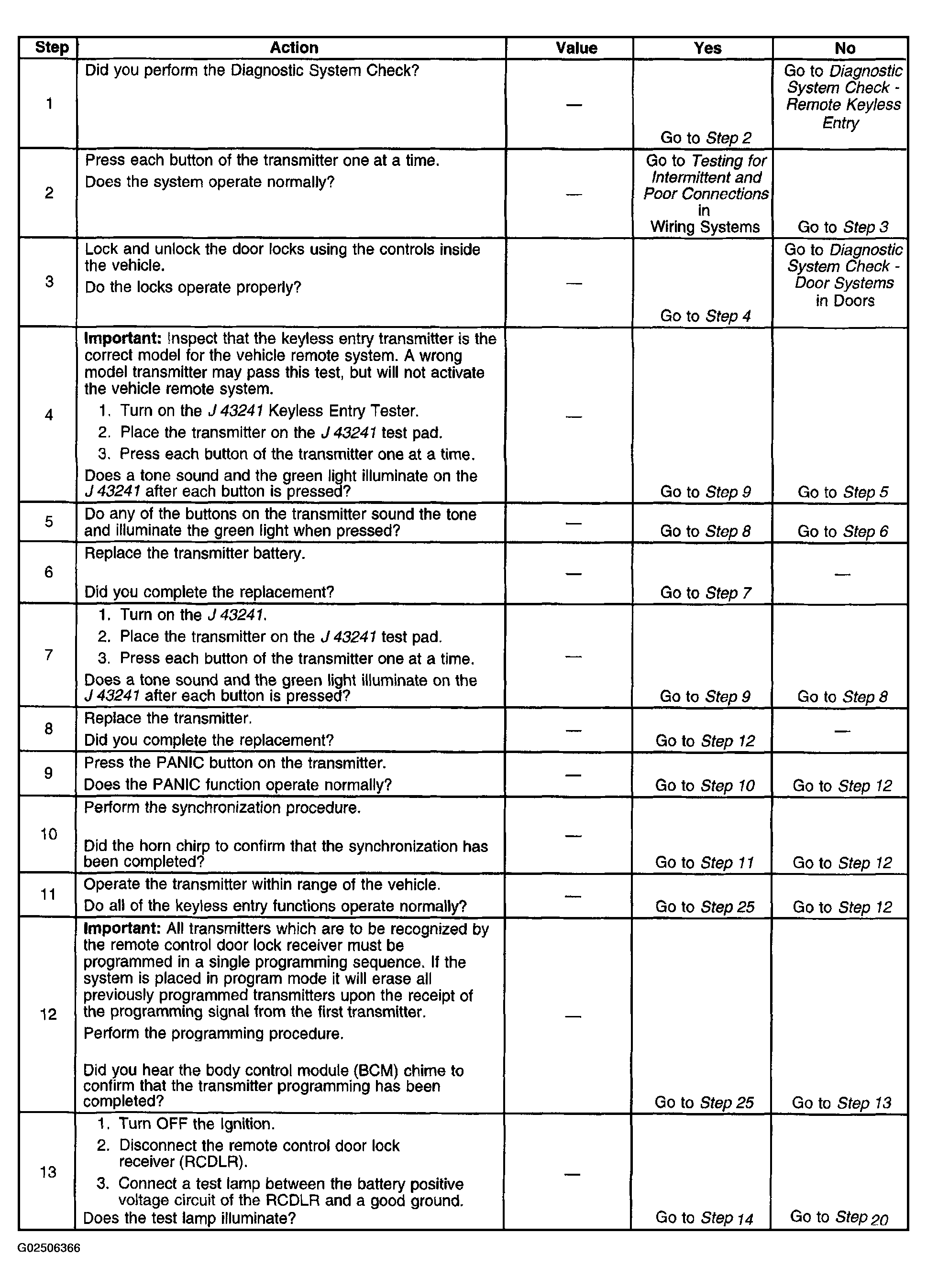

Fig 1: Keyless Entry System Inoperative Symptom Table (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

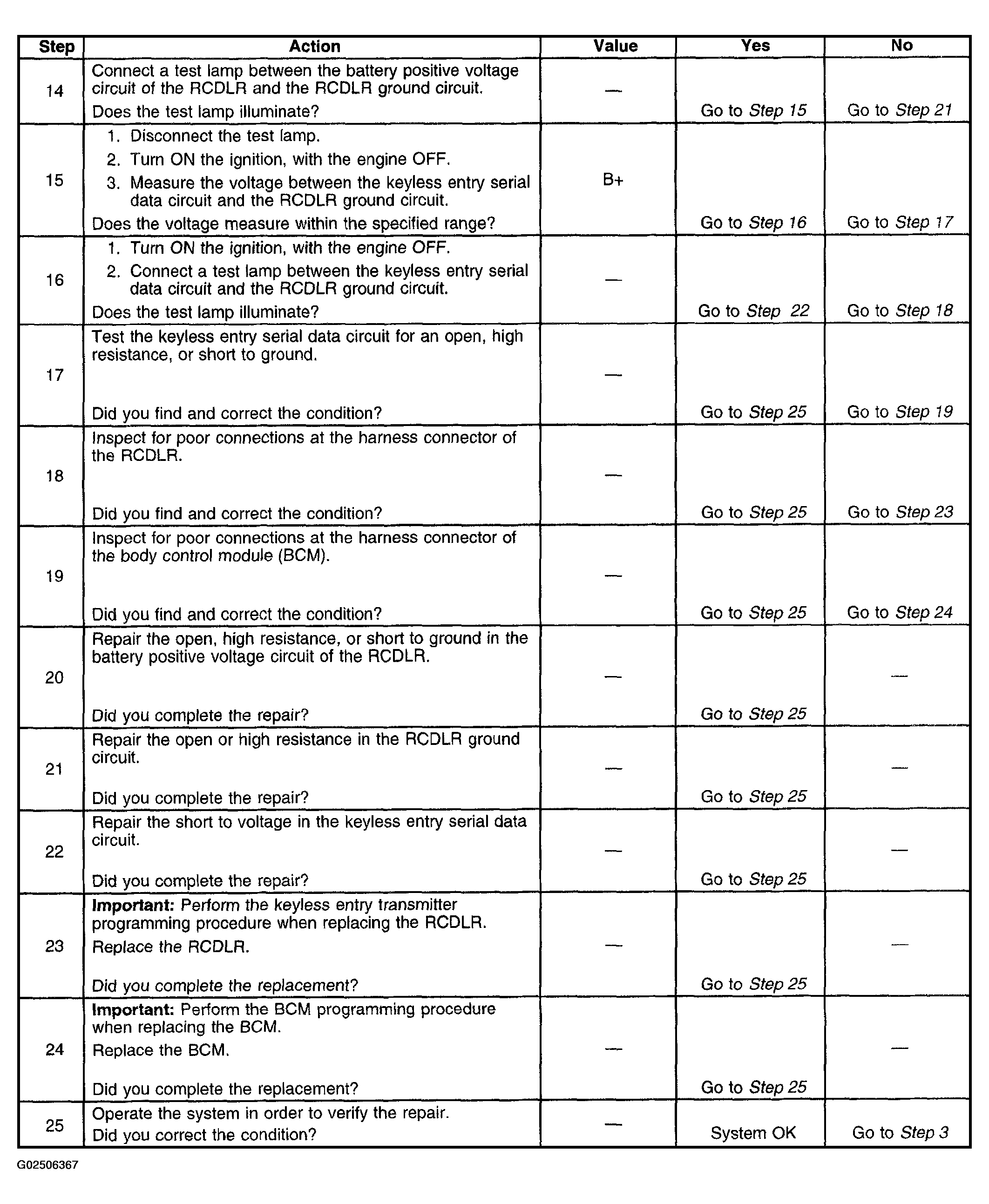

Fig 2: Keyless Entry System Inoperative Symptom Table (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
