Removal Procedure

  1. Insert a small coin between the 2 halves of the transmitter case at the slot provided near the key ring hole.
  2. Twist the coin in order to open the case.
  3. Open the transmitter case.
  4. Remove the battery (2).
    5. Fig 1: Opening Transmitter Case
    G02506370Courtesy of GENERAL MOTORS CORP.

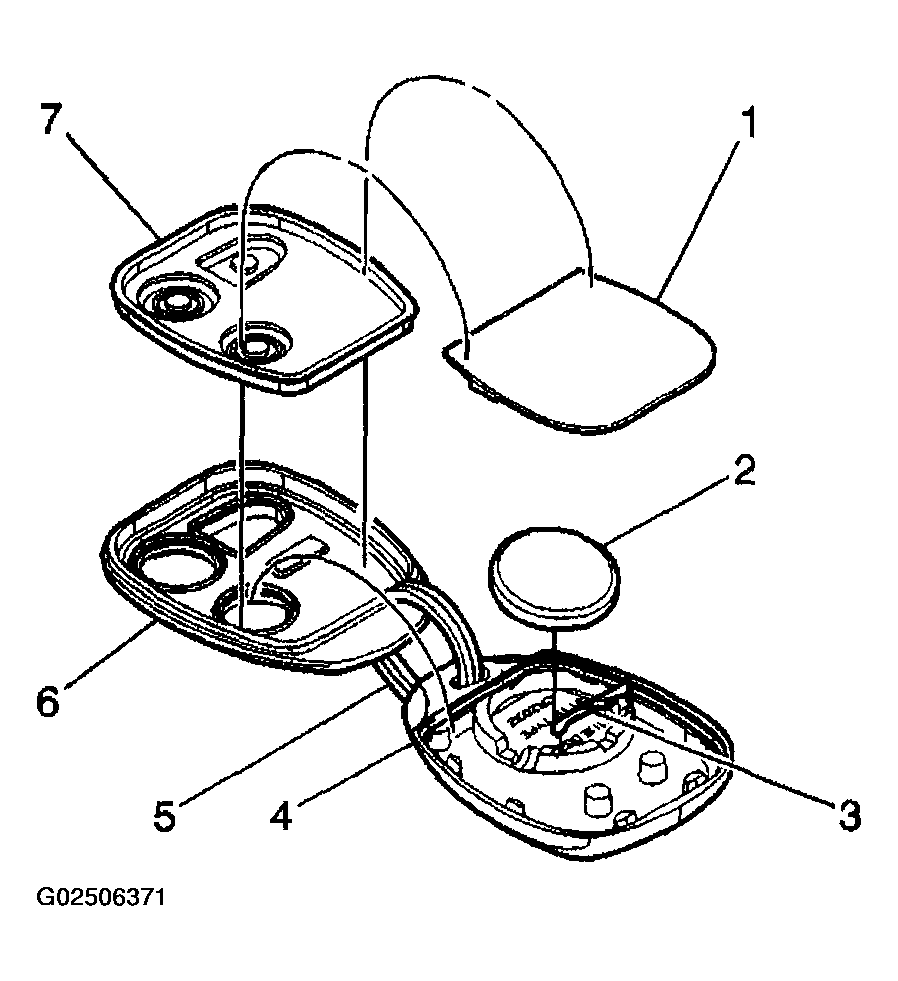

    Fig 2: Exploded View Of Transmitter Case
    G02506371Courtesy of GENERAL MOTORS CORP.
