Keyless Entry Schematics

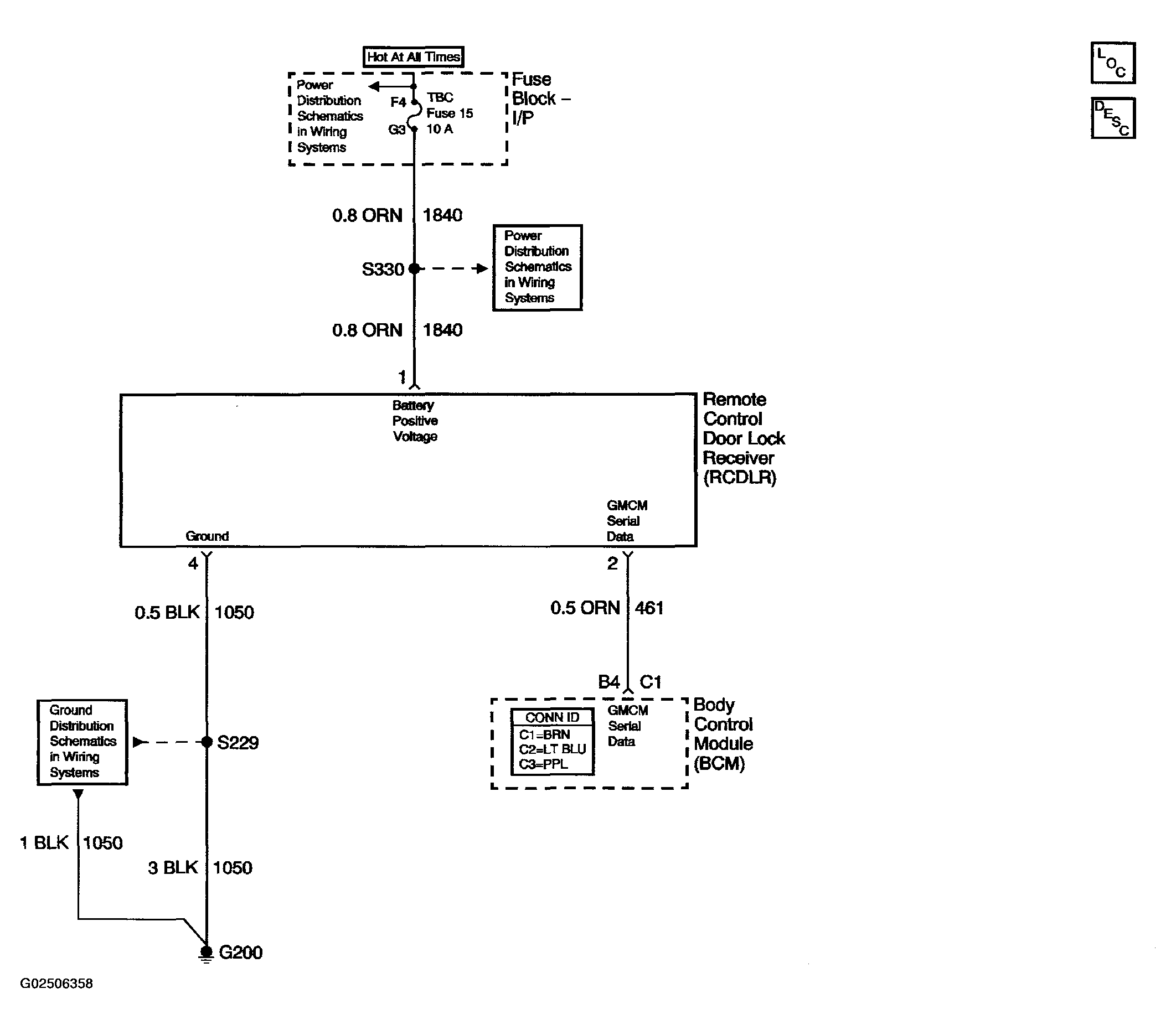

Fig 1: Keyless Entry Wiring Schematic
G02506358Courtesy of GENERAL MOTORS CORP.
