Installation Procedure

  1. Install the seat back frame.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

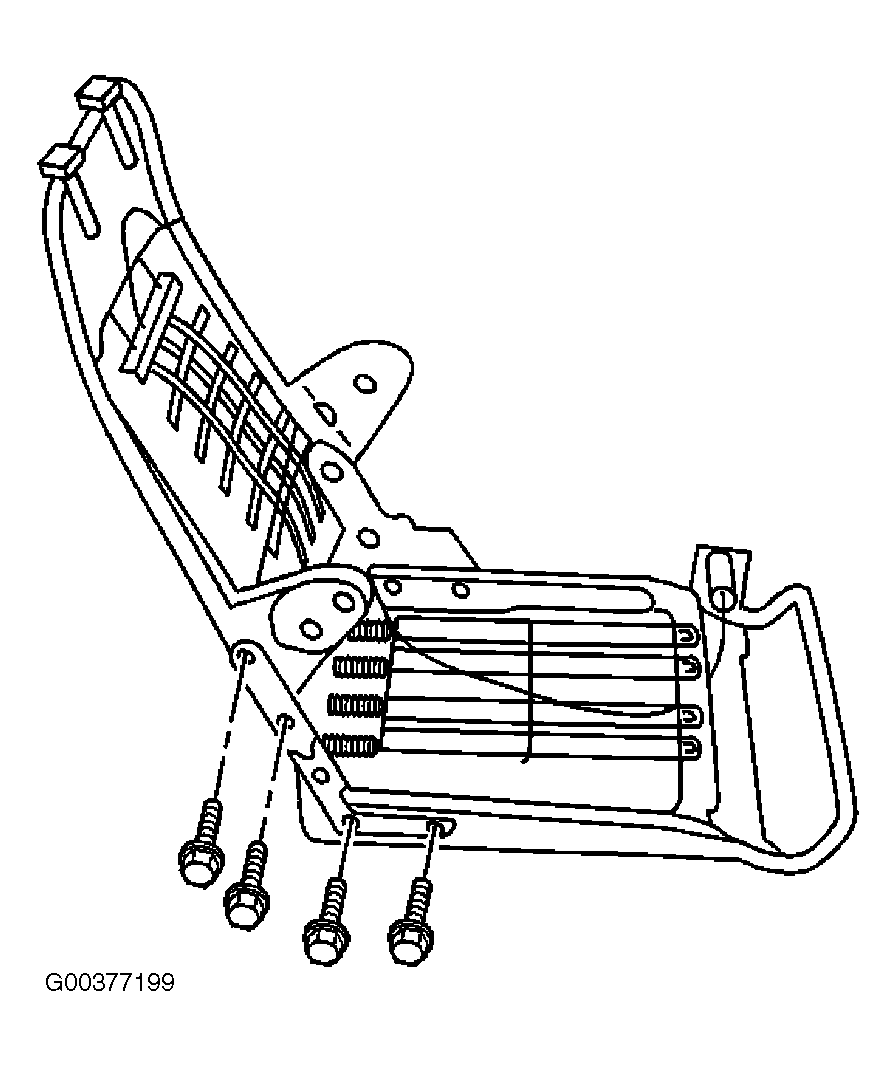

  2. Install the bolts to the seat back hinges on the right and left side. See Figure.

    Tighten

    Tighten the bolts to the seat back hinges on the right and left side to 30 N.m (22 in lbs).

  3. Install the lumbar support cable. Refer to Lumbar Support Cable Replacement .
  4. Install the seat back cover and pad. See Figure. Refer to Seat Back Cover and Pad Replacement (YC5 and YC6)  or Seat Back Cover and Pad Replacement (YC7)  .
  5. Install the bucket seat in the vehicle. Refer to Seat Replacement - Bucket .
