Removal Procedure

  1. Remove the front door window belt filler.
  2. Remove the sound insulator patch.
  3. Disconnect the electrical connector, if equipped.
  4. Remove the nuts (1) from the mirror.
  5. Remove the mirror (2) from the door.

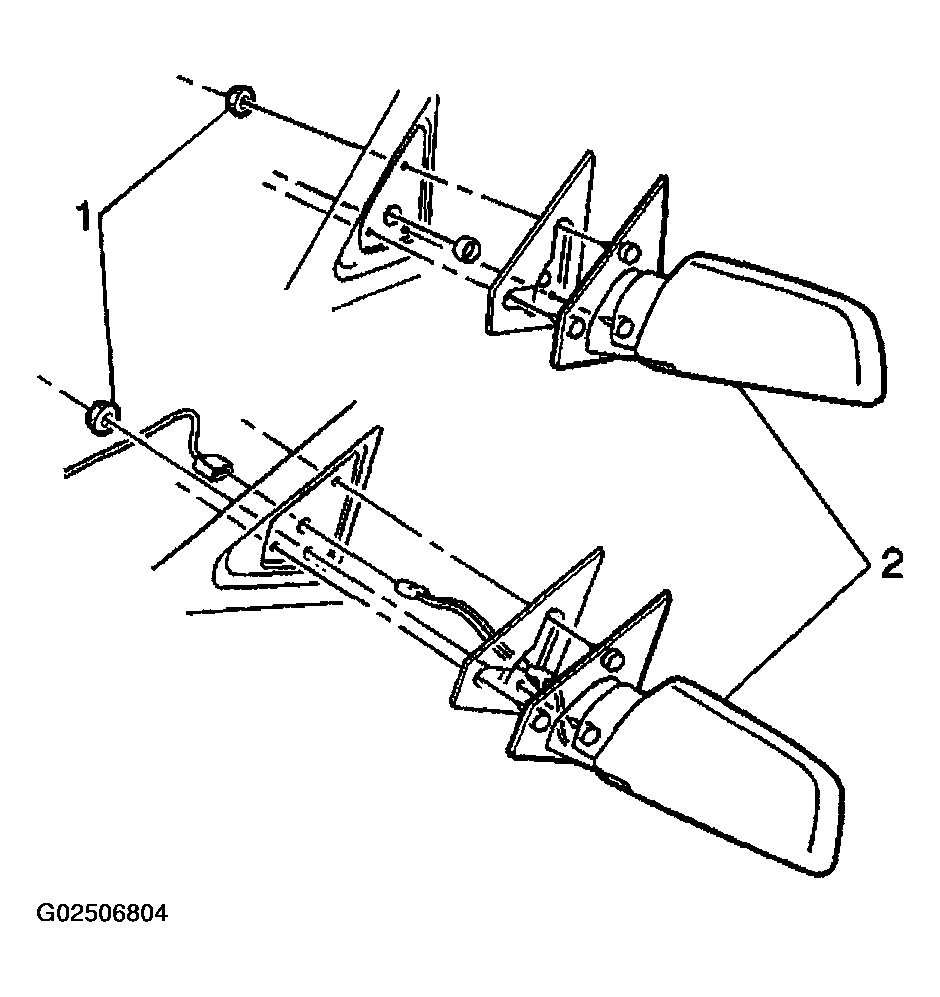

    6. Fig 1: Removing & Installing Mirror
    G02506804Courtesy of GENERAL MOTORS CORP.
