Removal Procedure

  1. Open the swing out window.
  2. Pull the weatherstrip from the pinch weld flange.
  3. Grasp the weatherstrip at the lower corner and pull up and away from the pinch-weld.

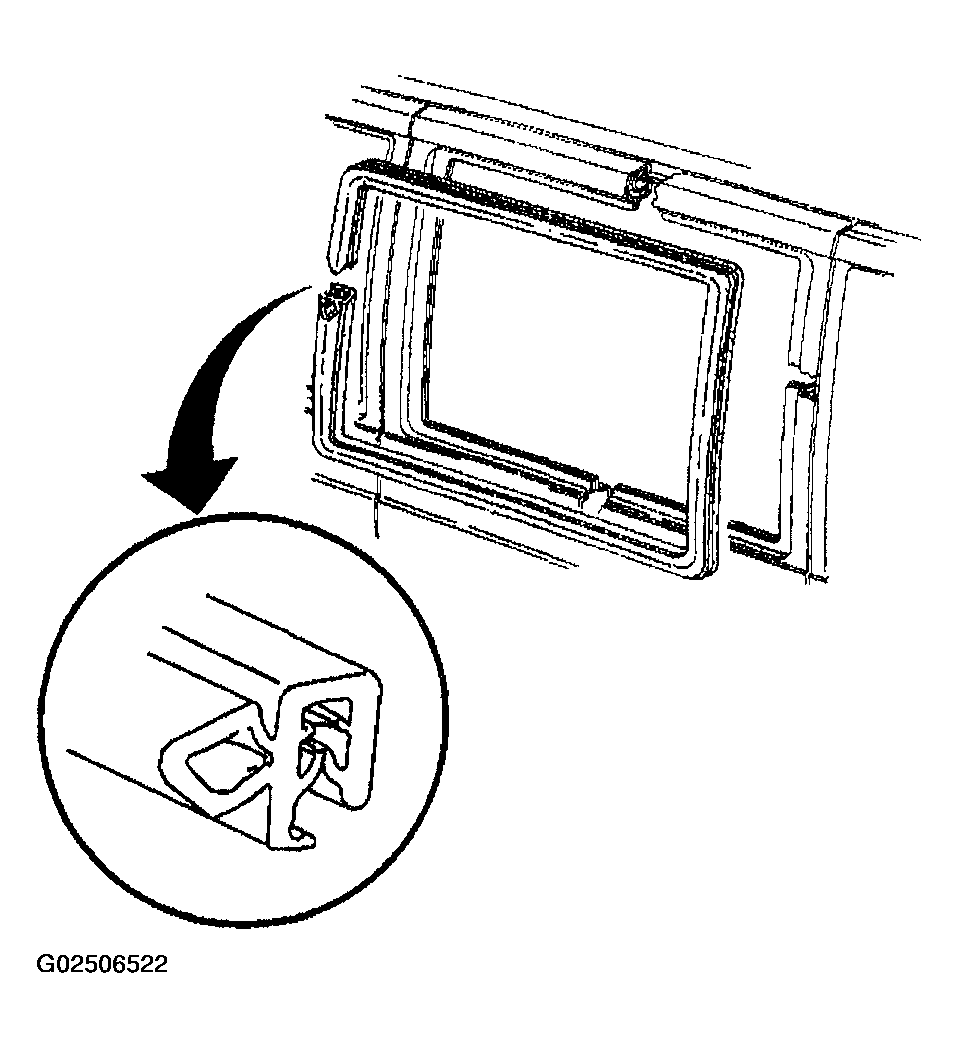

    Fig 1: Removing Weatherstrip - Swing Out Window
    G02506522Courtesy of GENERAL MOTORS CORP.
