ABS Component Views

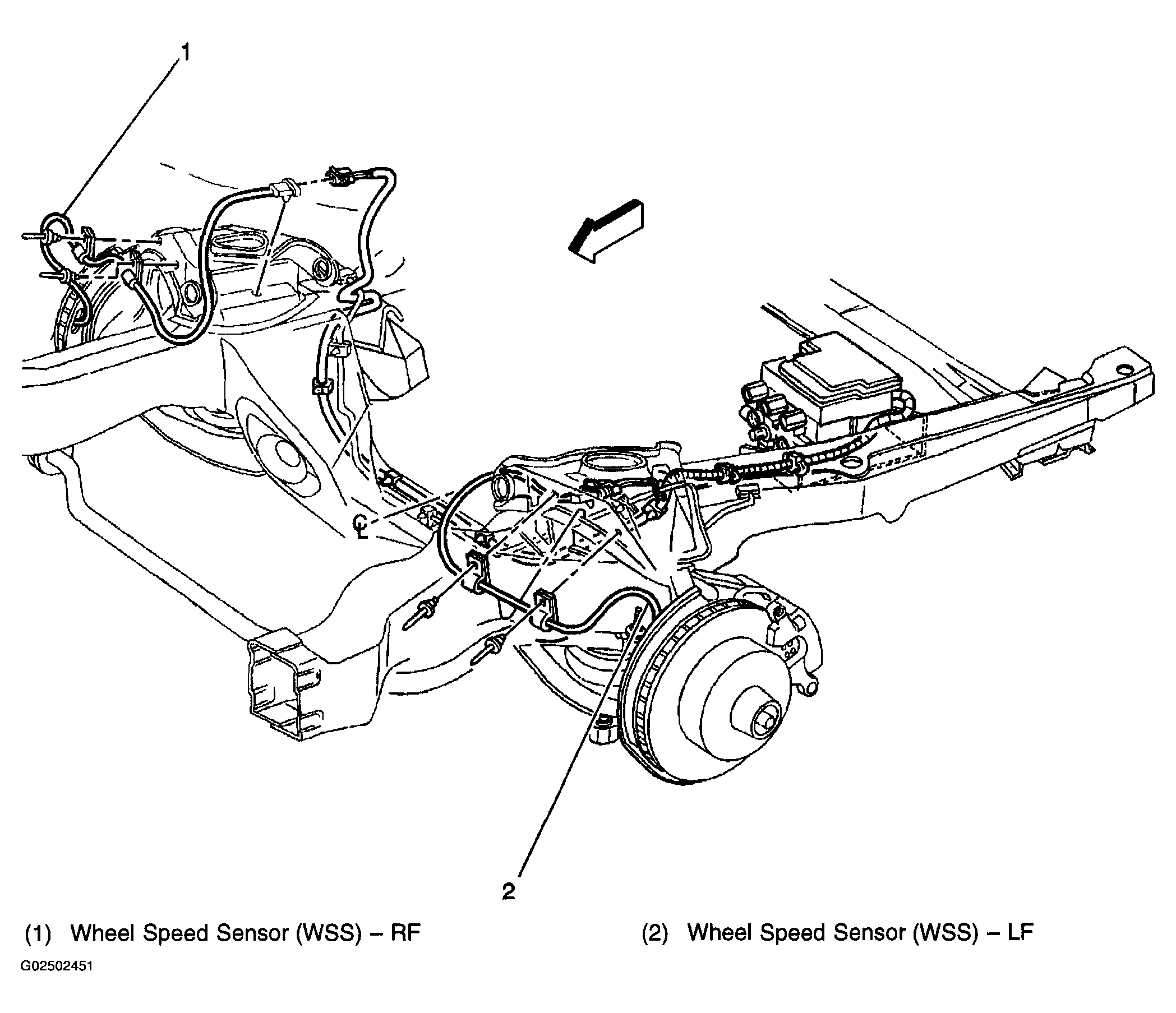

Fig 1: Locating ABS Wheel Speed Sensors
G02502451Courtesy of GENERAL MOTORS CORP.

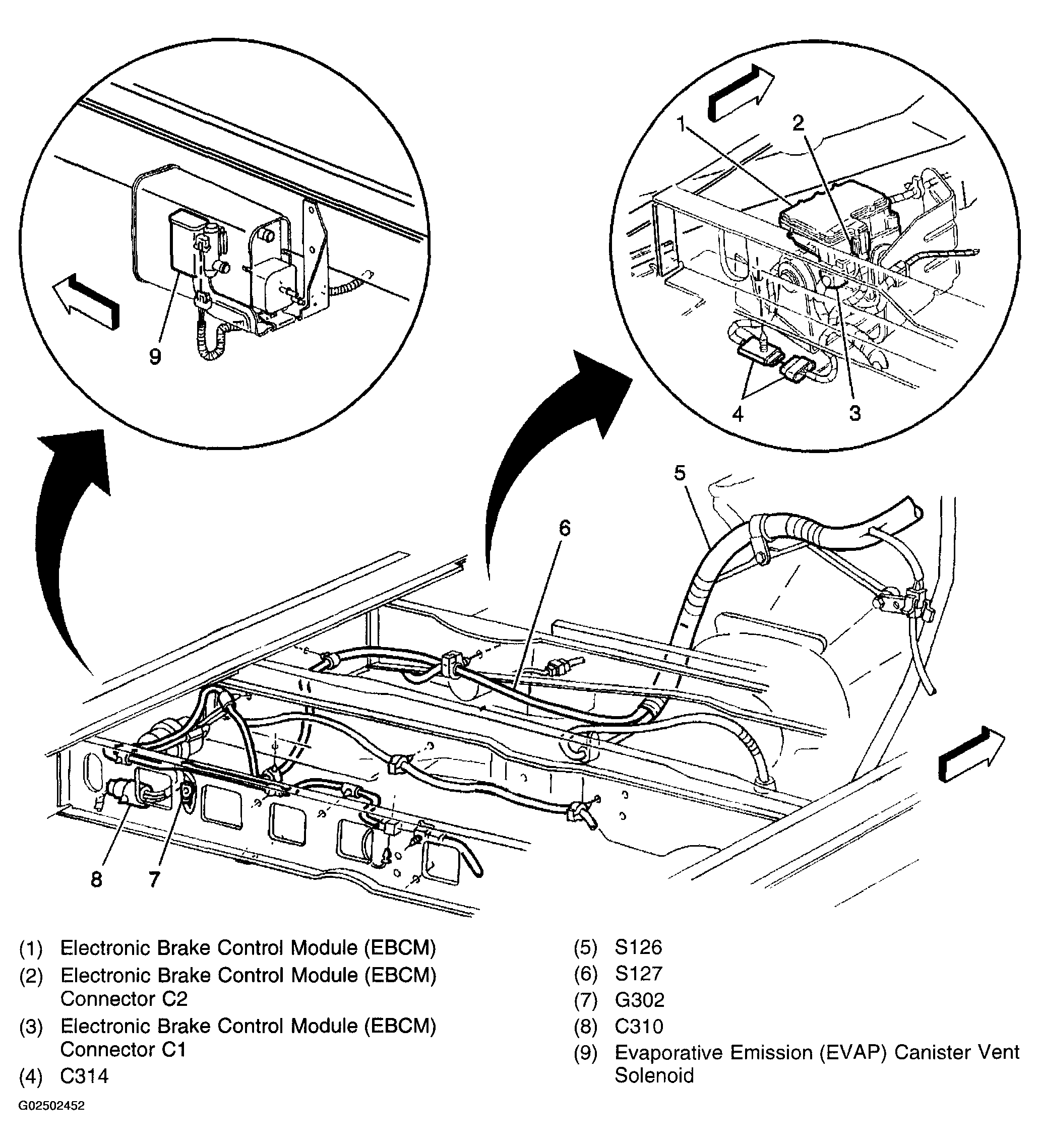

Fig 2: Locating EBCM
G02502452Courtesy of GENERAL MOTORS CORP.
