ABS Connector End Views

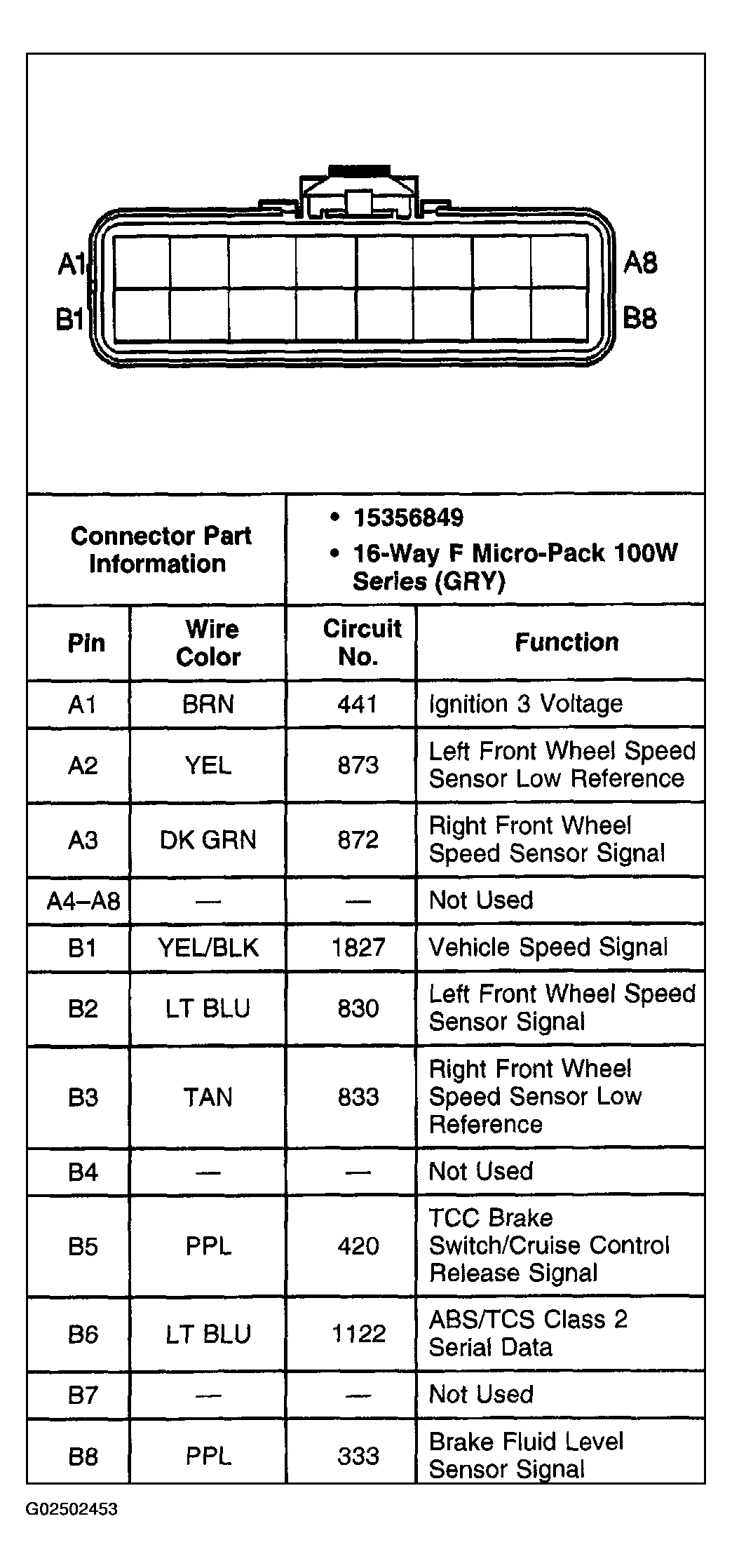

Fig 1: Identifying Electronic Brake Control Module (EBCM) C1 Connector Terminals
G02502453Courtesy of GENERAL MOTORS CORP.

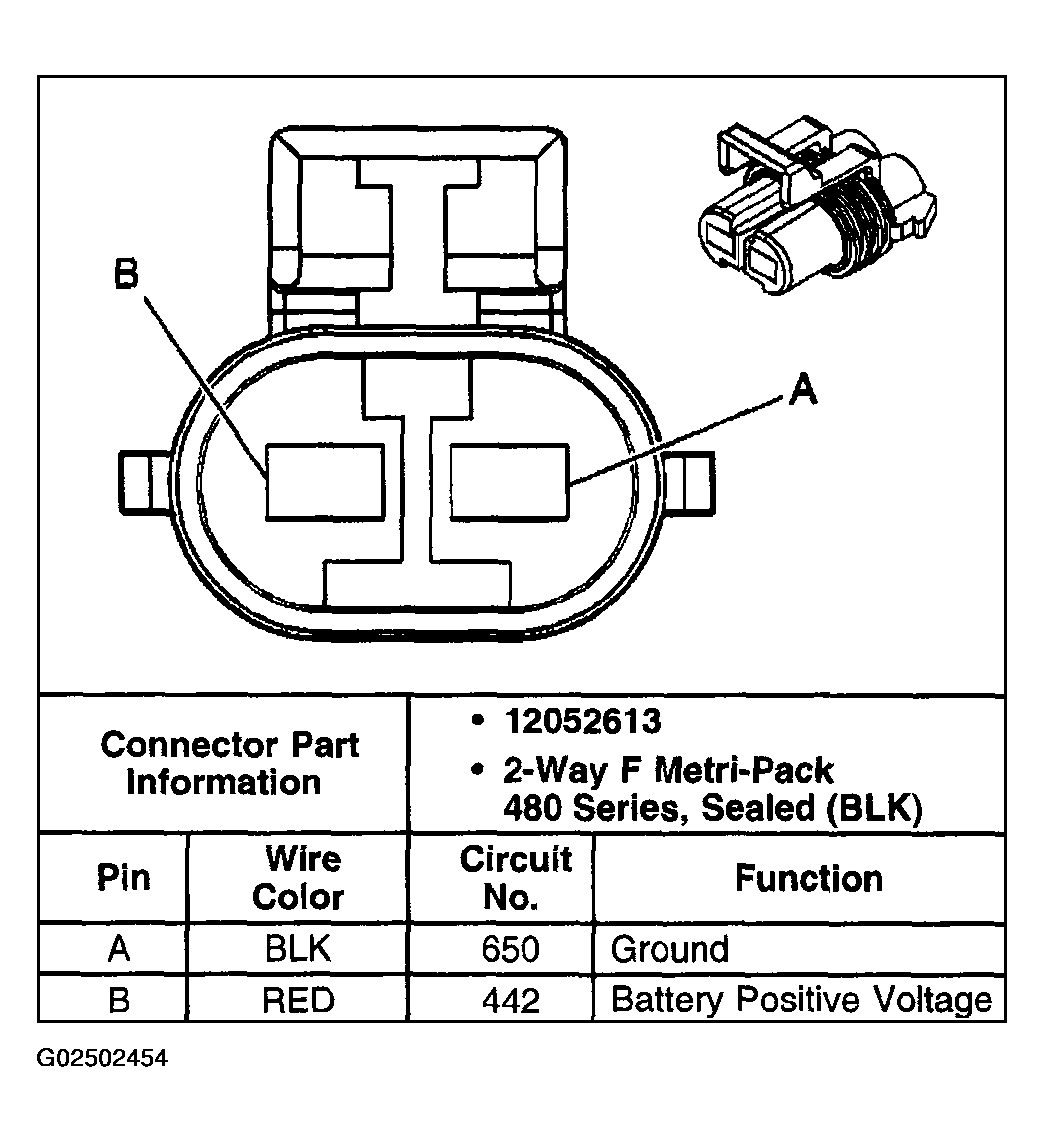

Fig 2: Identifying Electronic Brake Control Module (EBCM) C2 Connector Terminals
G02502454Courtesy of GENERAL MOTORS CORP.

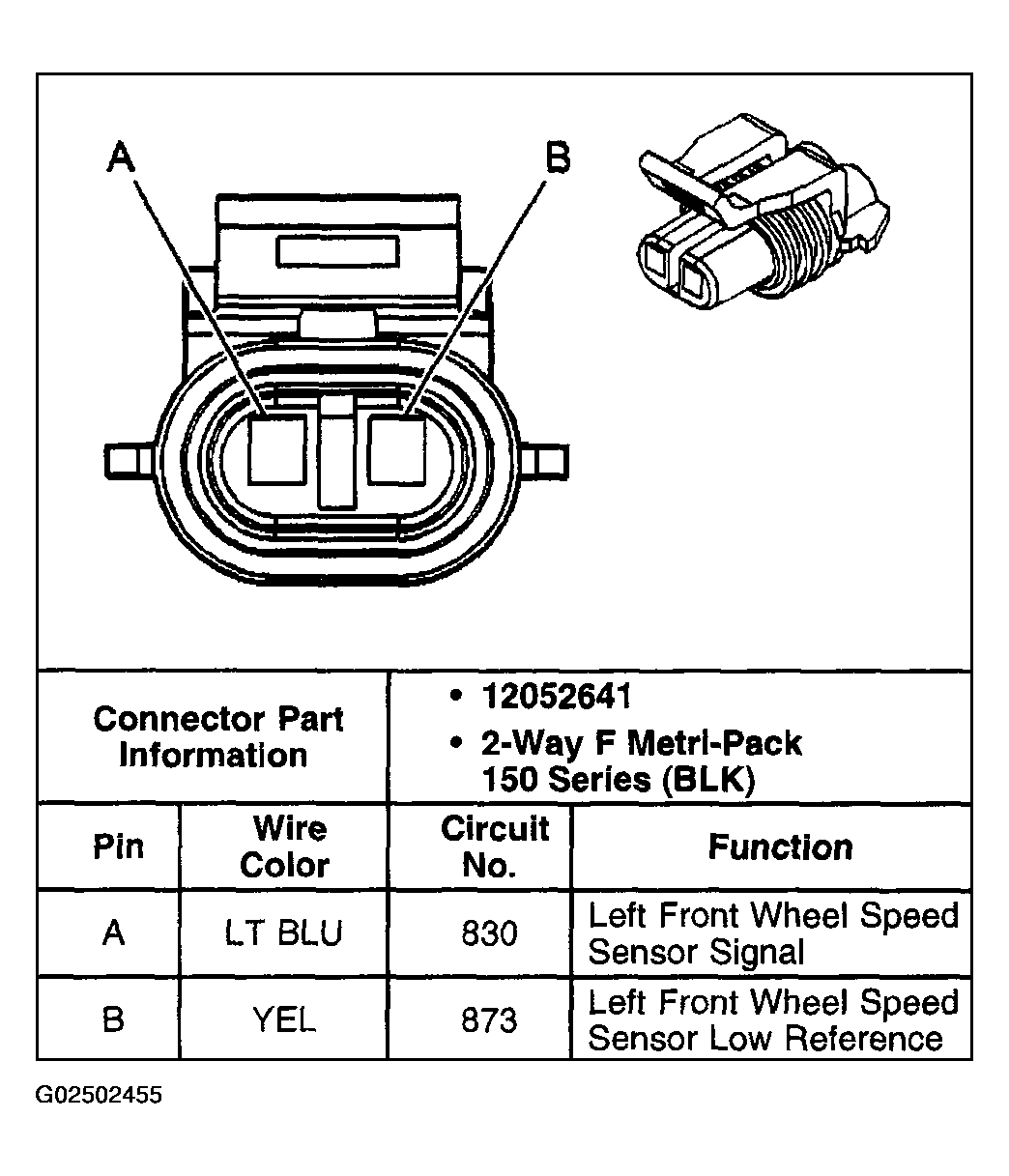

Fig 3: Identifying Left Front Wheel Speed Sensor (WSS) Connector Terminals
G02502455Courtesy of GENERAL MOTORS CORP.

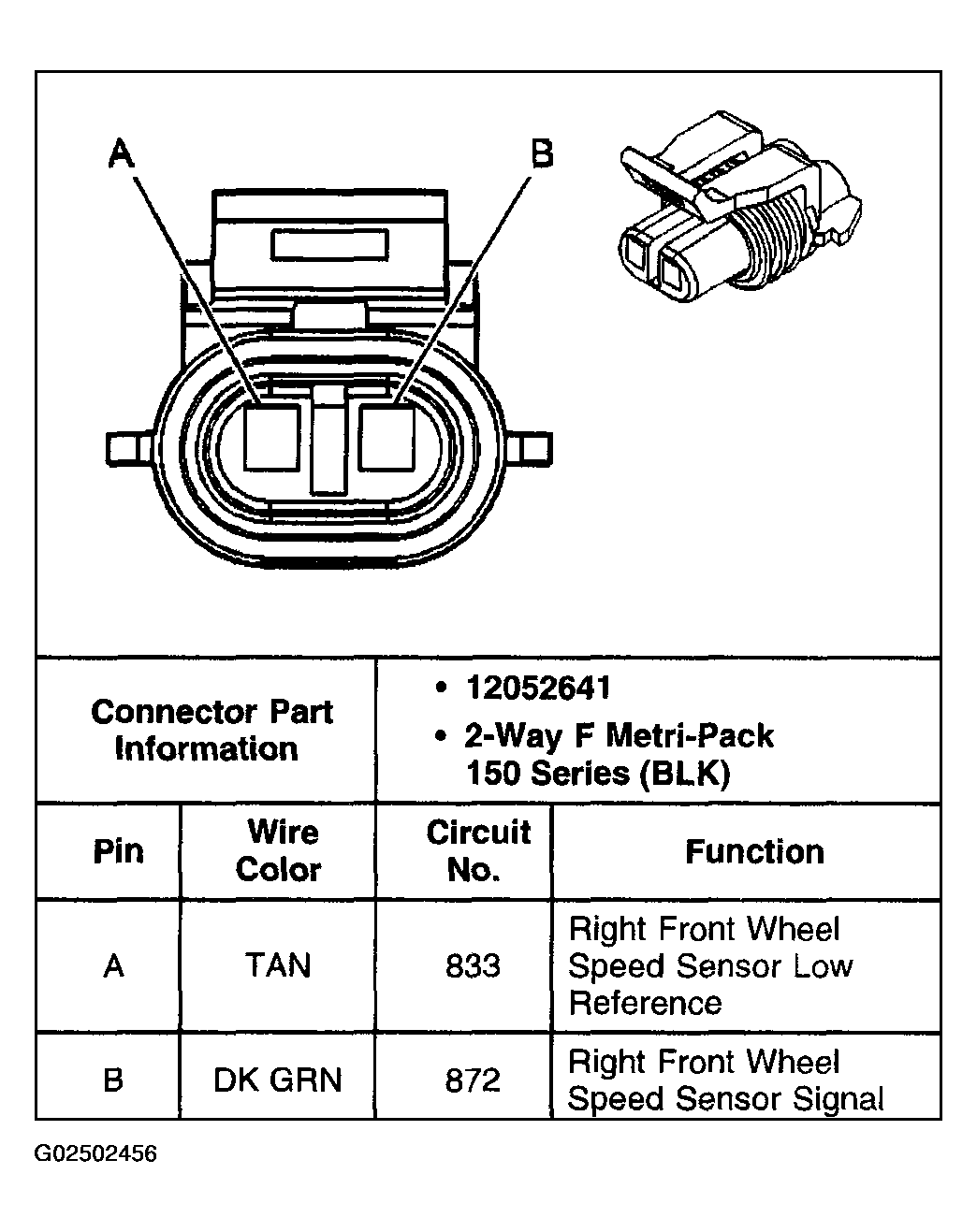

Fig 4: Identifying Right Front Wheel Speed Sensor (WSS) Connector Terminals
G02502456Courtesy of GENERAL MOTORS CORP.
