C404 (Main Body-To-Rear Dome Lamp) Connector End View
C404 (Main Body-To-Rear Dome Lamp) Connector End View

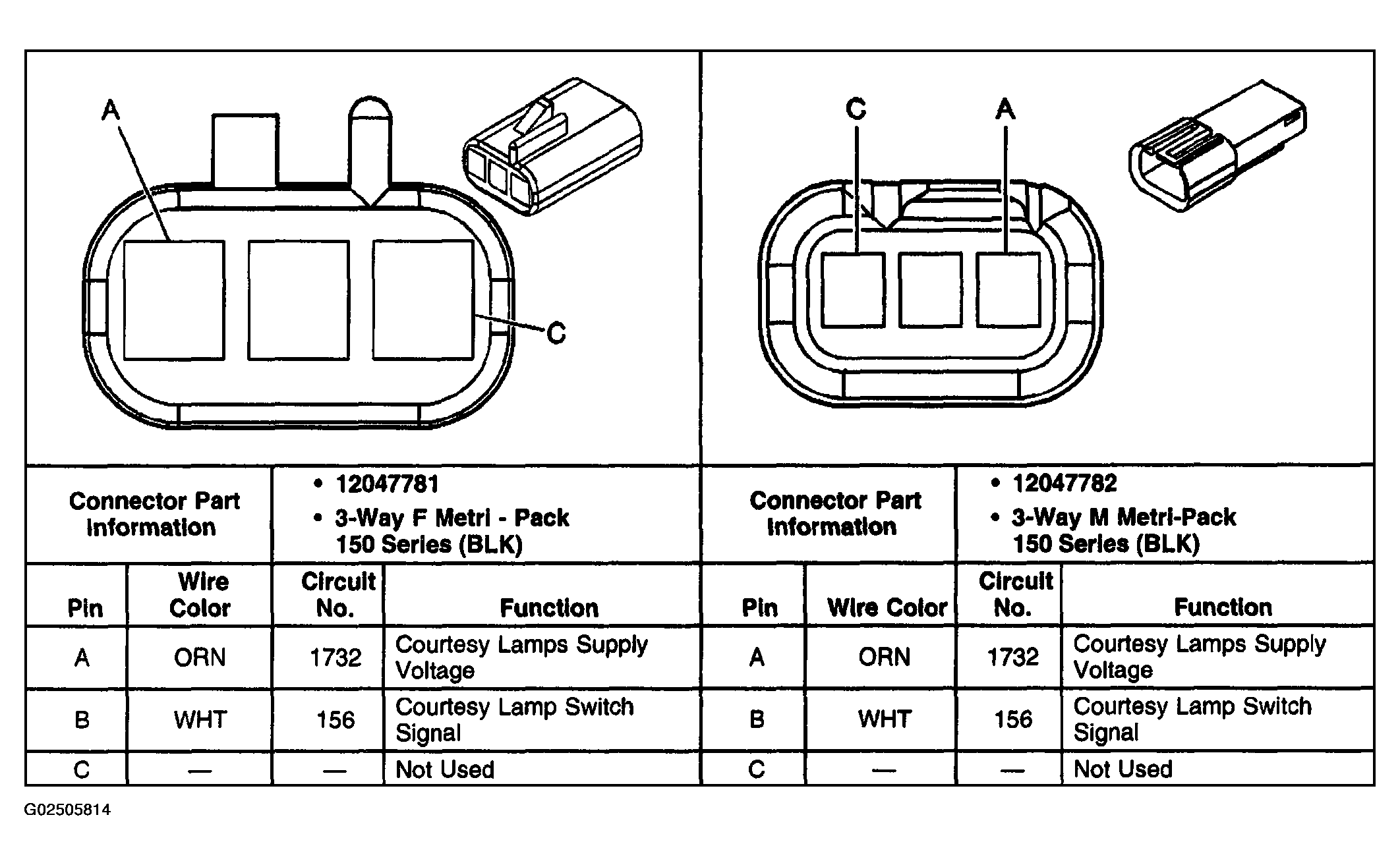

Fig 1: C404 (Main Body-To-Rear Dome Lamp) Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
