Rear Window Wiper/Washer Module Connector End View
Rear Window Wiper/Washer Module Connector End View

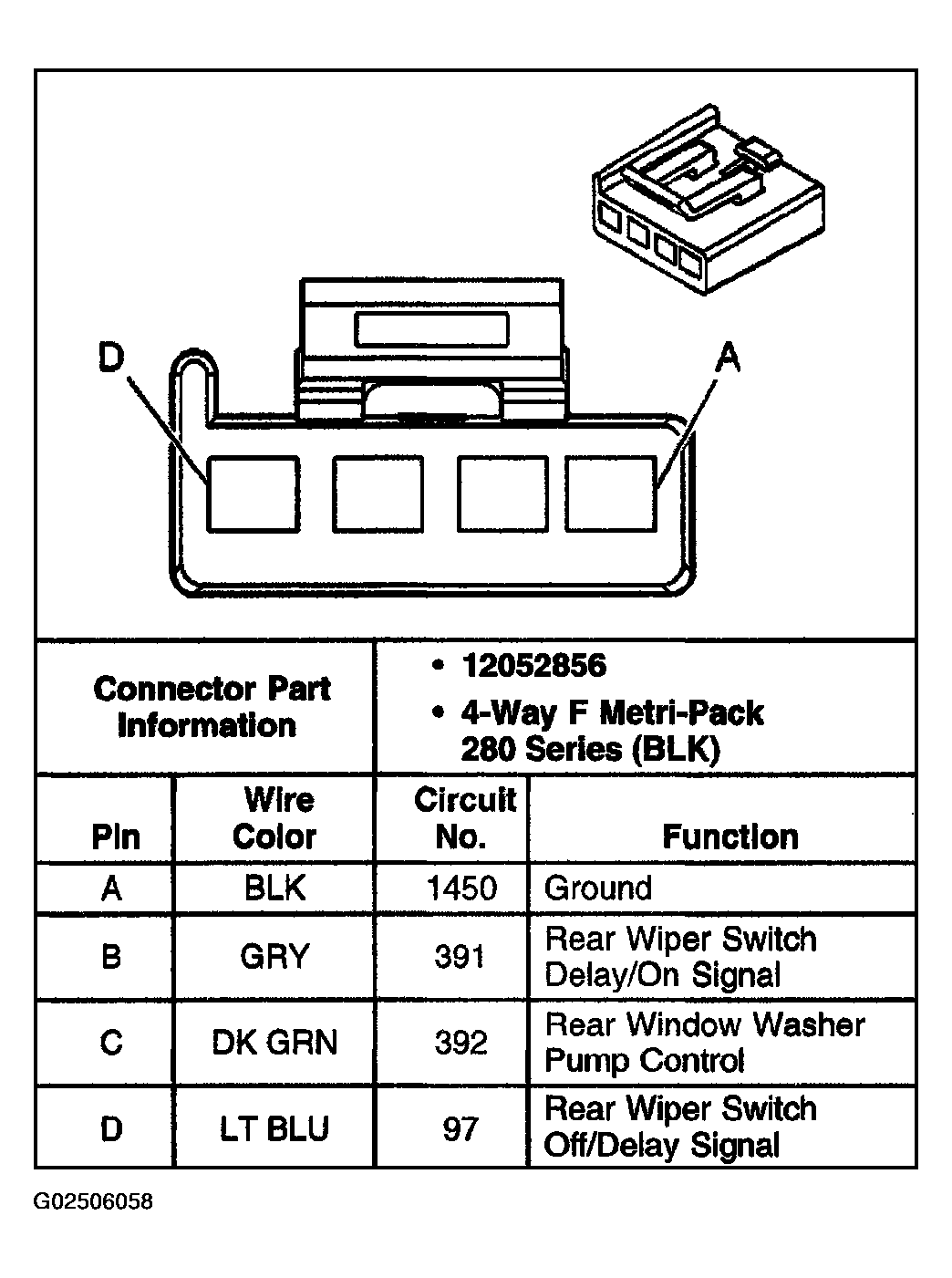

Fig 1: Rear Window Wiper/Washer Module Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
