Transfer Case Encoder Motor Electrical Connector End View
Transfer Case Encoder Motor Electrical Connector End View

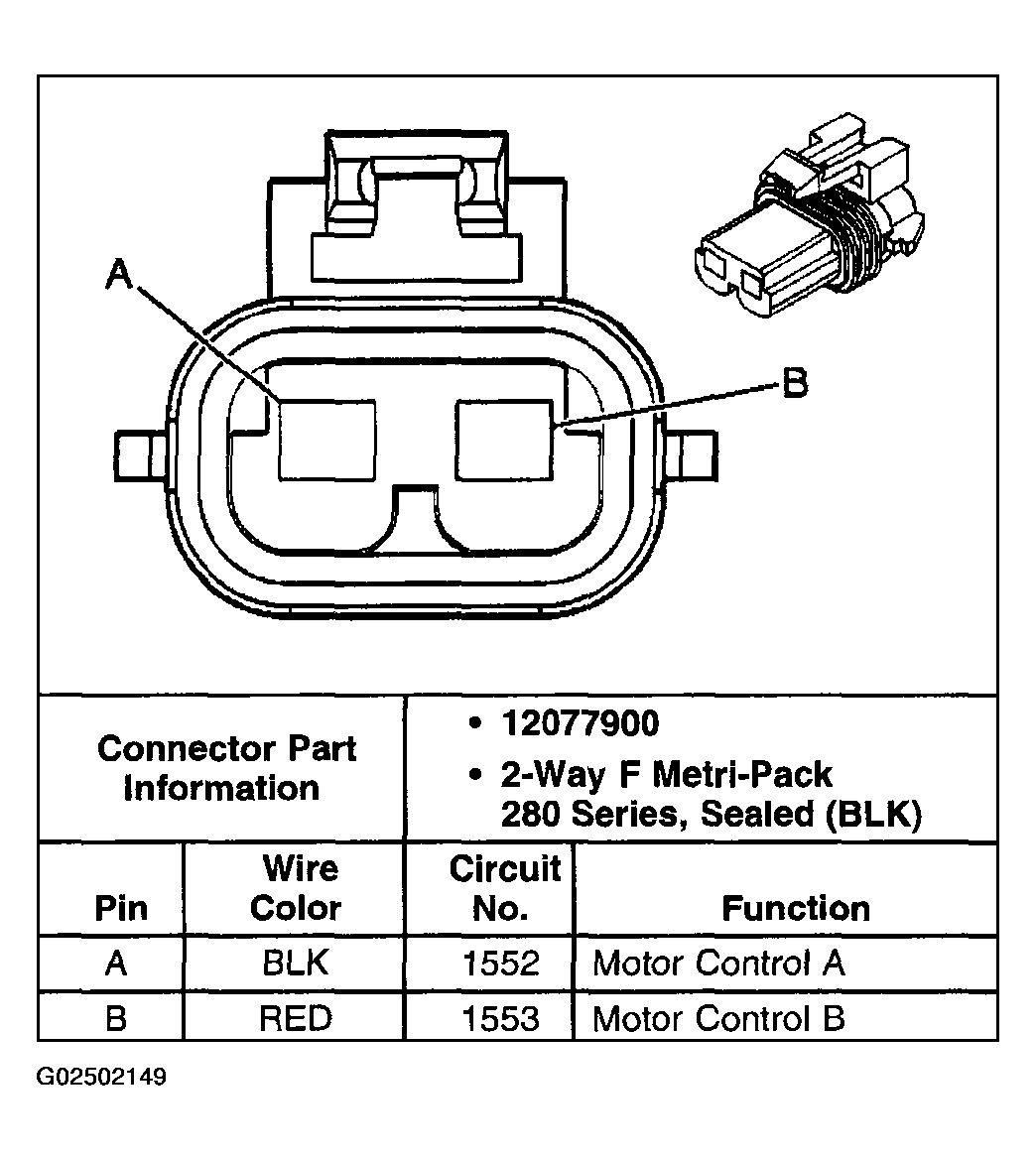

Fig 1: Transfer Case Encoder Motor Electrical Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
