Transfer Case Shift Control Module C2 Electrical Connector End View
Transfer Case Shift Control Module C2 Electrical Connector End View

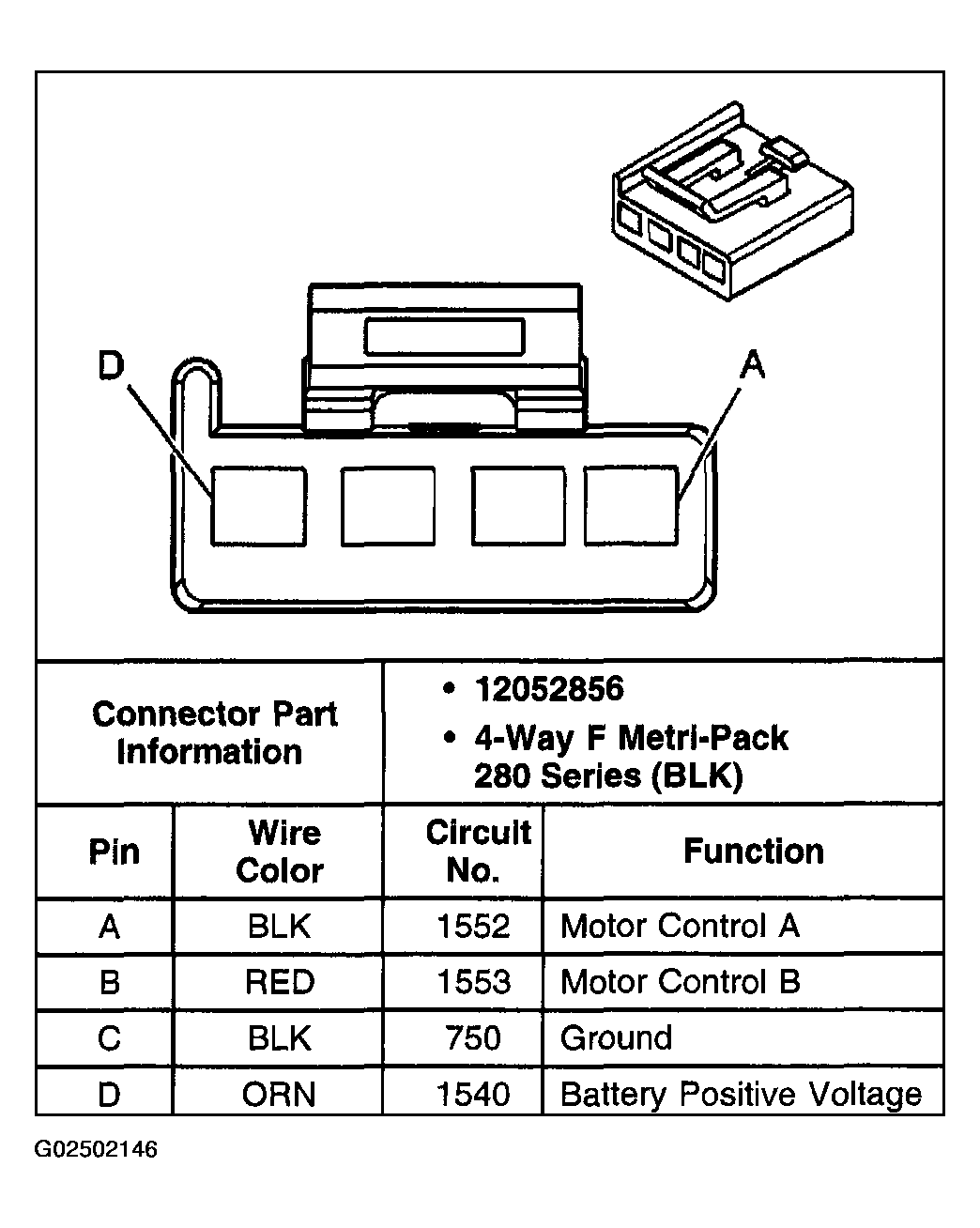

Fig 1: Transfer Case Shift Control Module C2 Electrical Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
