Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the cruise control cable to the engine.

    Important:  Ensure the cruise control module strap is not twisted during installation of the cruise control cable.

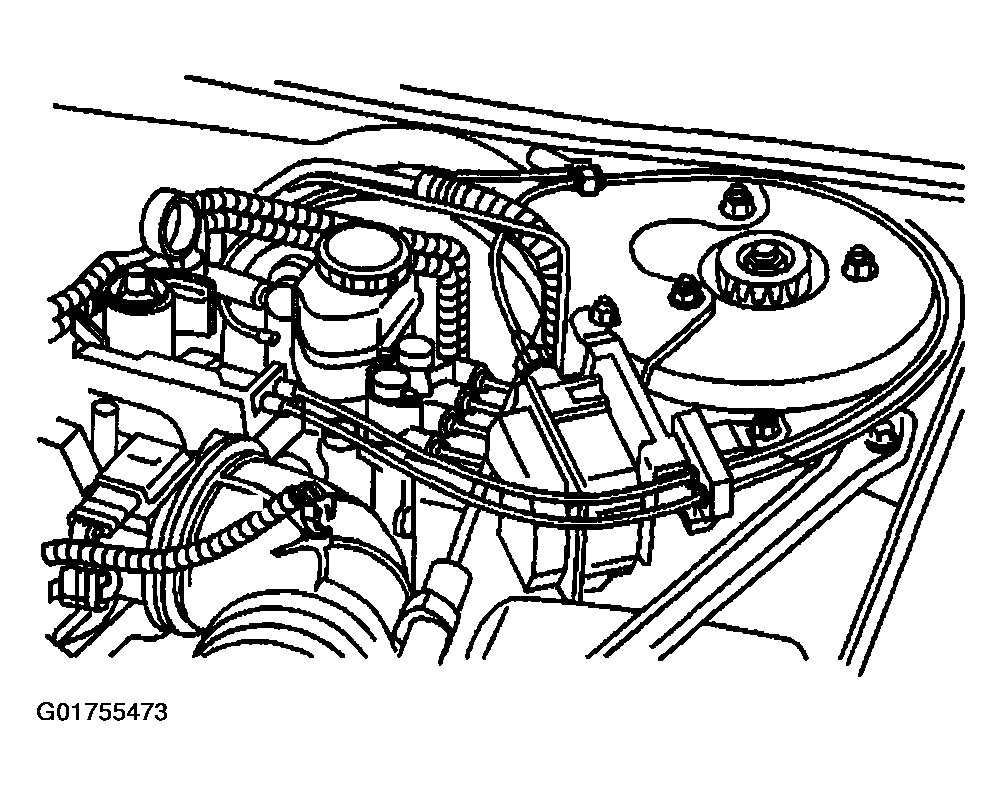

    2. Fig 1: Positioning Cruise Control Cable To Engine
    G01755473Courtesy of GENERAL MOTORS CORP.
  2. Install the cruise control cable to the cruise control module by rotating the cruise control cable clockwise.
    3. Fig 2: Installing Cruise Control Cable To Cruise Control Module
    G01755474Courtesy of GENERAL MOTORS CORP.
  3. Install the cruise control cable to the cruise control retainers.
  4. Install the cruise control cable to the cruise control module strap.
    5. Fig 3: Identifying Cruise Control Module Strap
    G01755475Courtesy of GENERAL MOTORS CORP.
  5. Install the cruise control cable to the throttle lever and the accelerator control cable bracket.

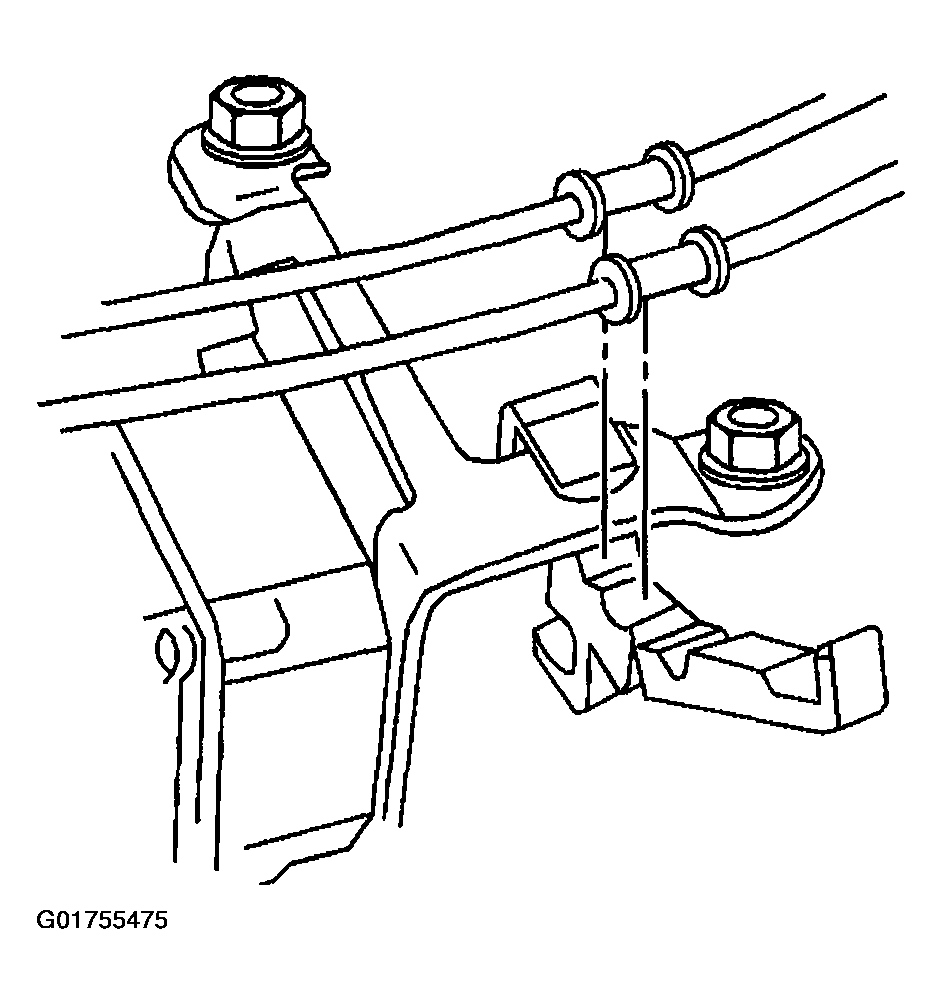

    6. Fig 4: Identifying Cruise Control Cable At Throttle Lever & Accelerator Control Cable Bracket
    G01755476Courtesy of GENERAL MOTORS CORP.
