Cigar Lighter Connector End View
Cigar Lighter Connector End View

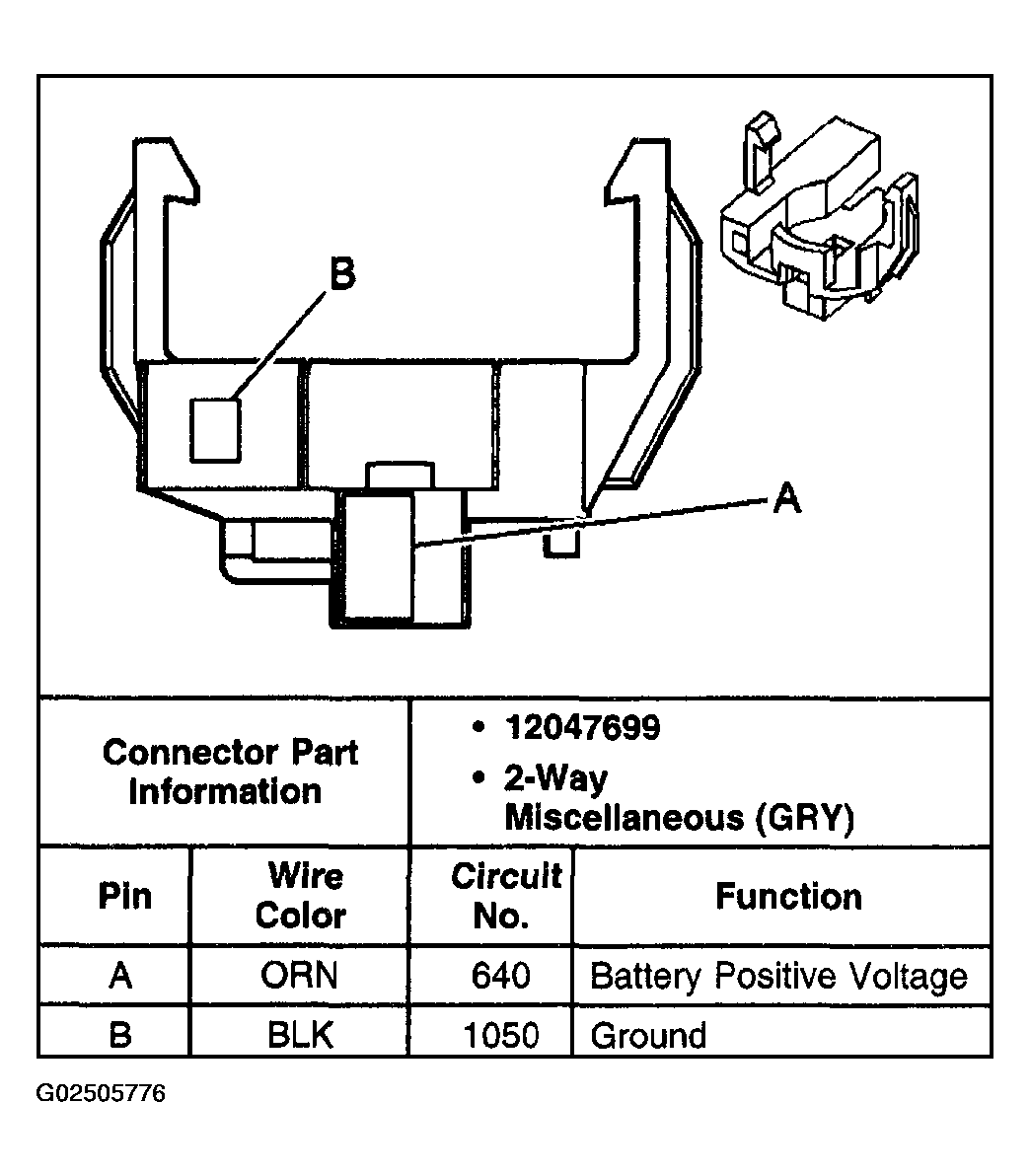

Fig 1: Cigar Lighter Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
