Seat Belt Connector End Views

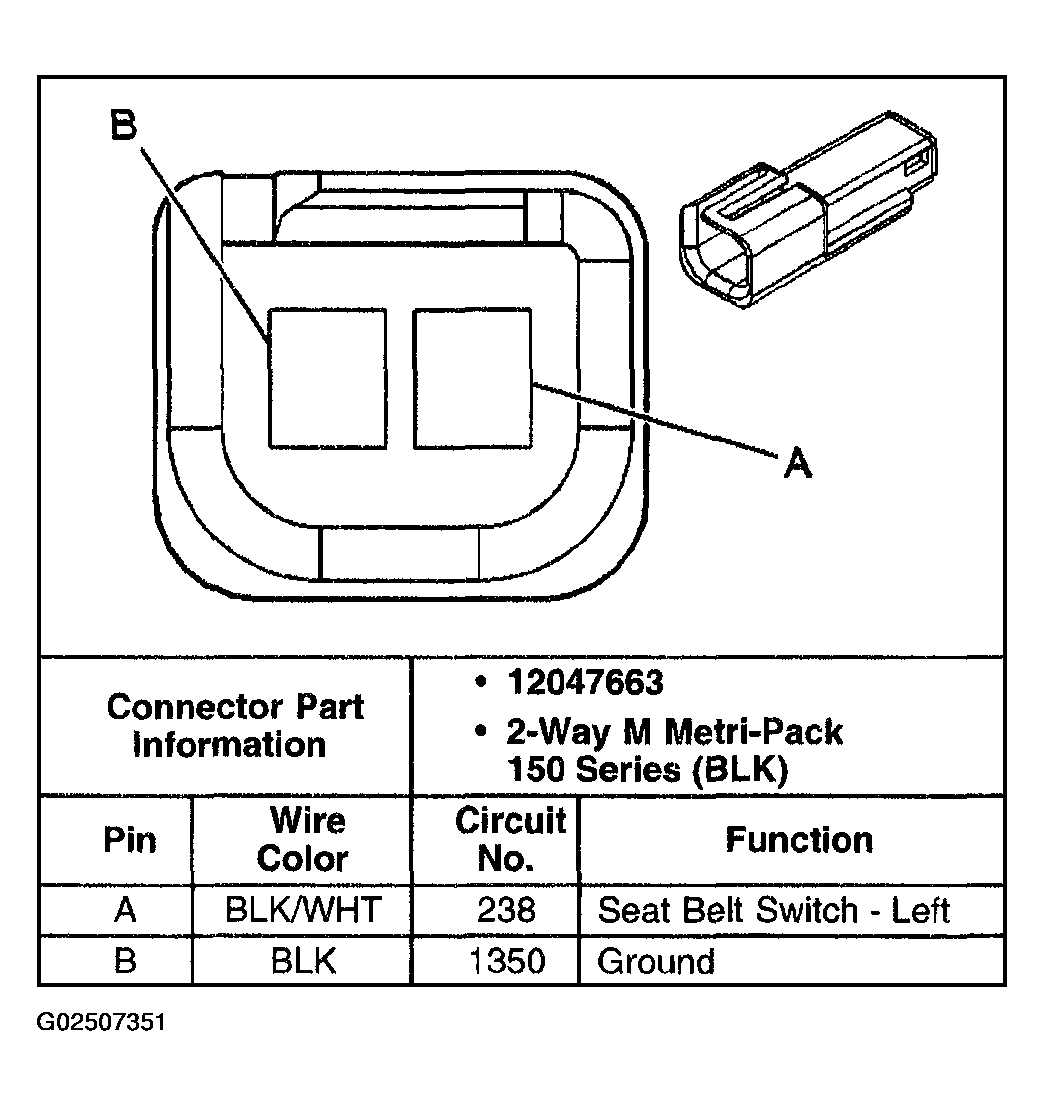

Fig 1: Identifying Seat Belt Buckle Switch Connector End View & Functions
G02507351Courtesy of GENERAL MOTORS CORP.
