Installation Procedure

  1. Install the seat belt buckle.
  2. Connect the seat belt buckle warning electrical connector.
  3. Install the seat belt buckle to the floor stud.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the nuts located at the base of the seat riser.

    Tighten

    Tighten the bucket seat to the floor to 35 N.m (26 ft lbs).

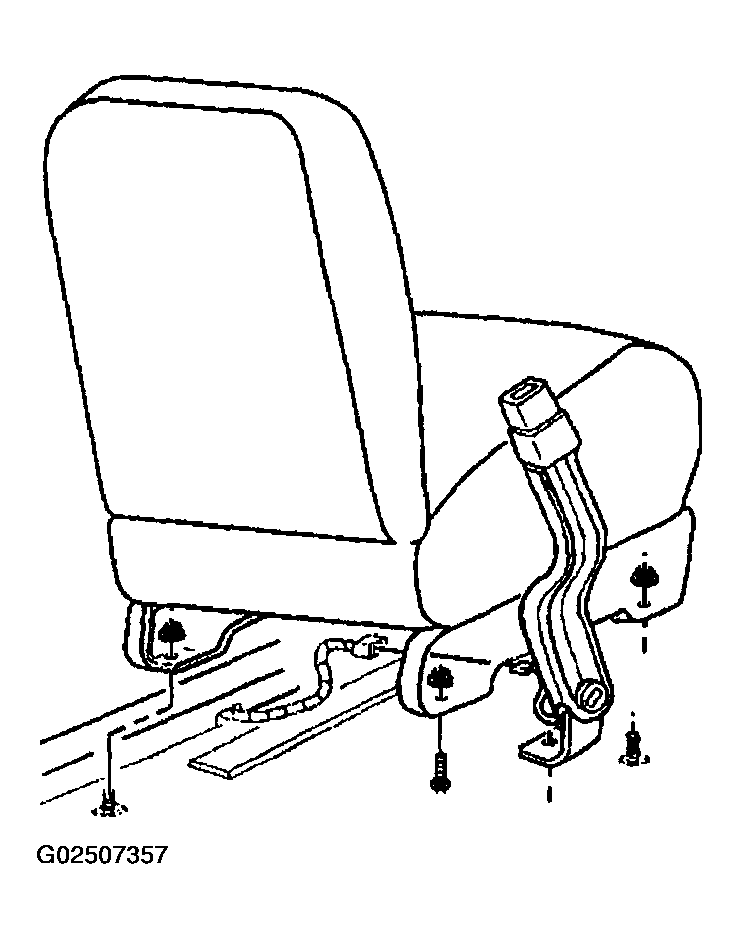

    Fig 1: Installing Front Seat Belt Buckle
    G02507357Courtesy of GENERAL MOTORS CORP.
