Installation Procedure

  1. Install the rear seat shoulder belt reinforcement to the roof.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolts to retain the rear seat shoulder belt reinforcement to the roof.

    Tighten

    Tighten the rear seat shoulder belt reinforcement bolts to the roof 35 N.m (26 ft lbs).

  3. Install the nuts to retain the rear seat shoulder belt reinforcement to the roof.

    Tighten

    Tighten the rear seat shoulder belt reinforcement nuts to the roof to 35 N.m (26 ft lbs).

  4. Install the headliner.

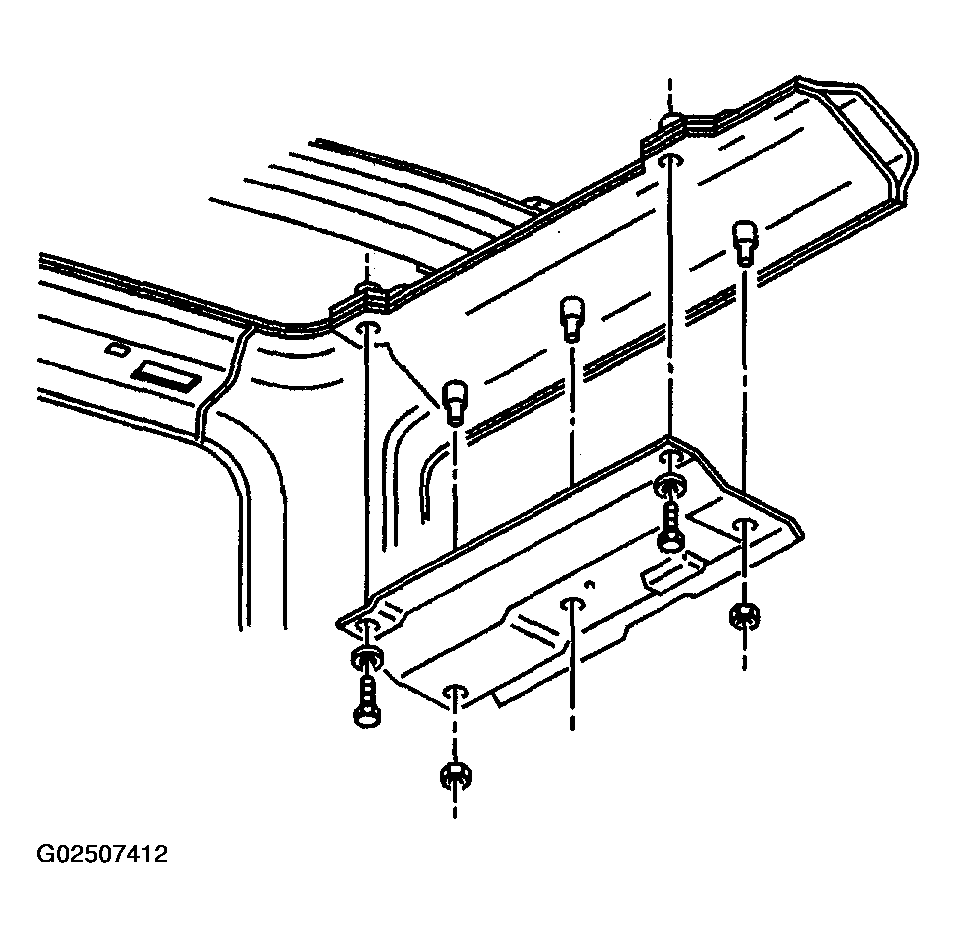

    Fig 1: Installing Rear Seat Shoulder Belt Reinforcement
    G02507412Courtesy of GENERAL MOTORS CORP.
  5. Install the nut to retain the rear seat shoulder belt bracket to the reinforcement.

    Tighten

    Tighten the seat shoulder belt bracket to the reinforcement nut to 35 N.m (26 ft lbs).

  6. Install the rear seat shoulder belt bracket cover.
  7. Install the bolt to retain the rear seat shoulder belt to the bracket.

    Tighten

    Tighten the seat shoulder belt bracket to the reinforcement bolt to 30 N.m (22 ft lbs).

  8. Install the cover to the rear seat shoulder belt bolt.

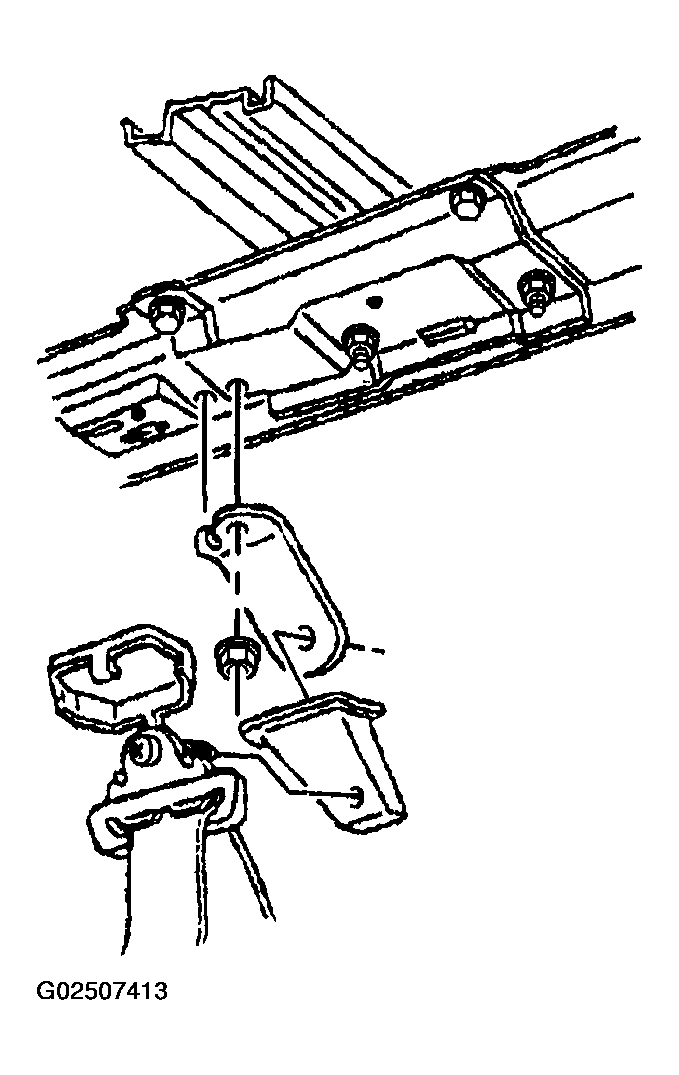

    Fig 2: Installing Right Rear Seat Shoulder Belt Retaining Bolt
    G02507413Courtesy of GENERAL MOTORS CORP.
