Removal Procedure

  1. Slide the front seat all the way forward.
  2. Remove the seat belt from the seat belt guide located on the side of the bucket seat.
  3. Remove the cover from the shoulder belt guide to expose the bolt.
  4. Remove the retaining bolt from the shoulder belt guide adjuster bracket.
  5. Remove the left inside garnish molding.
  6. Remove the body side front lower molding.
  7. Remove the electrical connectors.
  8. Remove the bolt retaining the retractor from the pillar, lift upward to release.
  9. Remove the retractor from the vehicle.

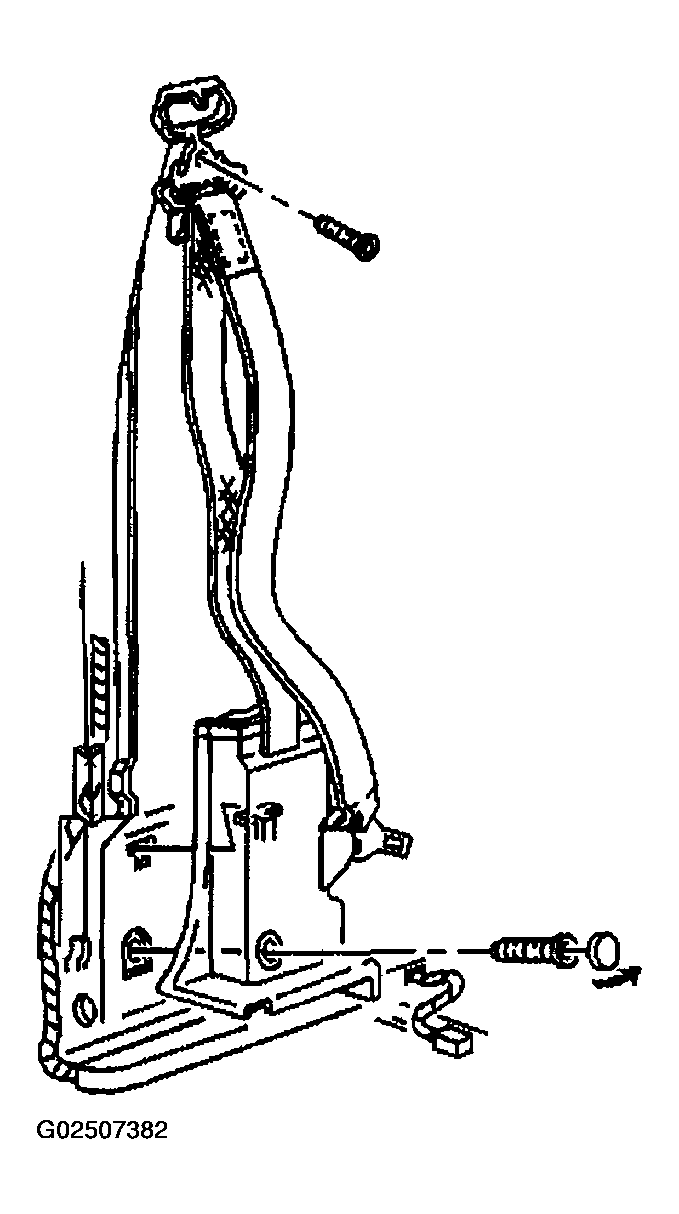

    Fig 1: Removing Left Front Seat Belt Retractor
    G02507382Courtesy of GENERAL MOTORS CORP.
