Installation Procedure

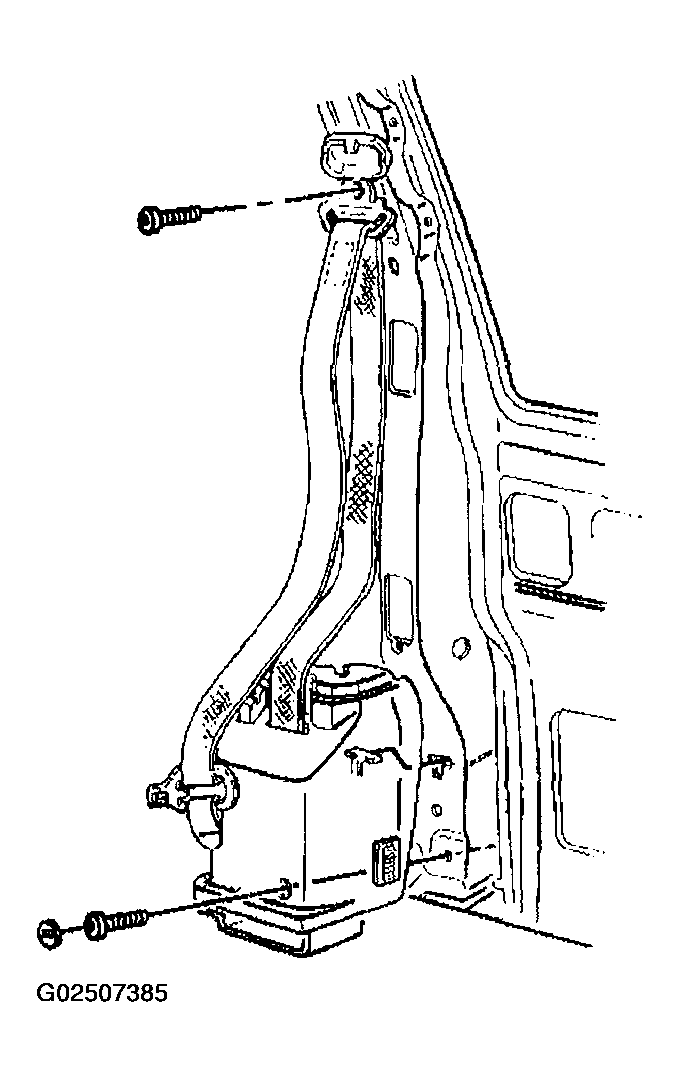

- Install the retractor to the vehicle.
- Install the electrical connectors.NOTE: Refer to Fastener Notice in Cautions and Notices.
- Install the retractor bolt to the pillar.
Tighten
Tighten the retractor bolt to the pillar to 53 N.m (39 ft lbs).
- Install the cover to the base of the retractor.
- Install the bolt retaining the shoulder belt to the guide adjuster bracket.
Tighten
Tighten the shoulder belt retaining bolt to 30 N.m (22 ft lbs).
- Install the right front lock pillar inside garnish molding.
- Install the cover to the shoulder belt guide.
- Install the seat belt to the seat belt guide located on the side of the bucket seat.
- Slide the front seat back in position.
