Removal Procedure

  1. Open the cover on the rear seat shoulder belt to expose the bolt.
  2. Remove the rear seat shoulder belt retaining bolt from the guide adjuster bracket.
  3. Remove the left rear - C-pillar side garnish molding trim by grasping both the sides and pull rearward.
  4. Remove the 2 guide adjuster bracket retaining bolts from the pillar.
  5. Remove the guide adjuster bracket from the pillar.

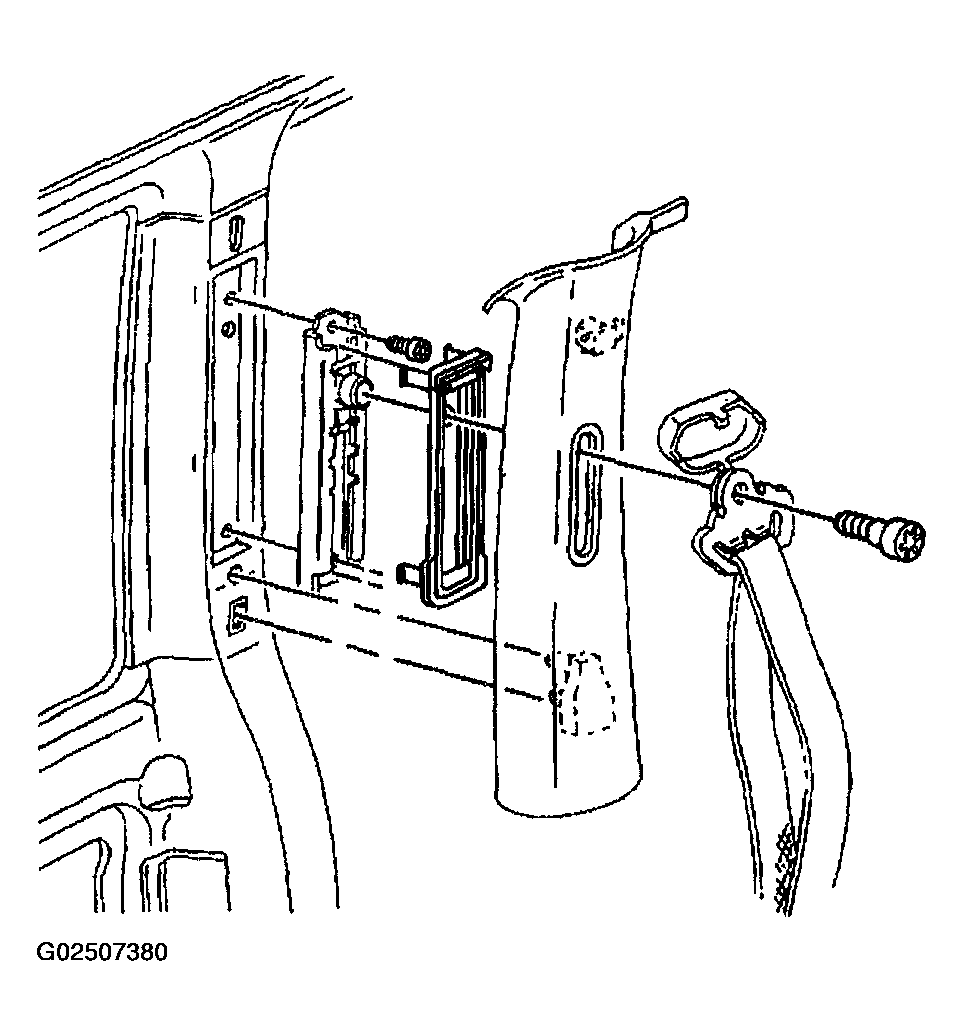

    Fig 1: Removing Rear Shoulder Belt Guide Adjuster
    G02507380Courtesy of GENERAL MOTORS CORP.
