Removal Procedure

  1. Remove the multifunction alarm assembly from the convenience center located under the left side of the instrument panel.
  2. Release the single tab connector on the top of the assembly.
  3. Pull out the single tab connector.

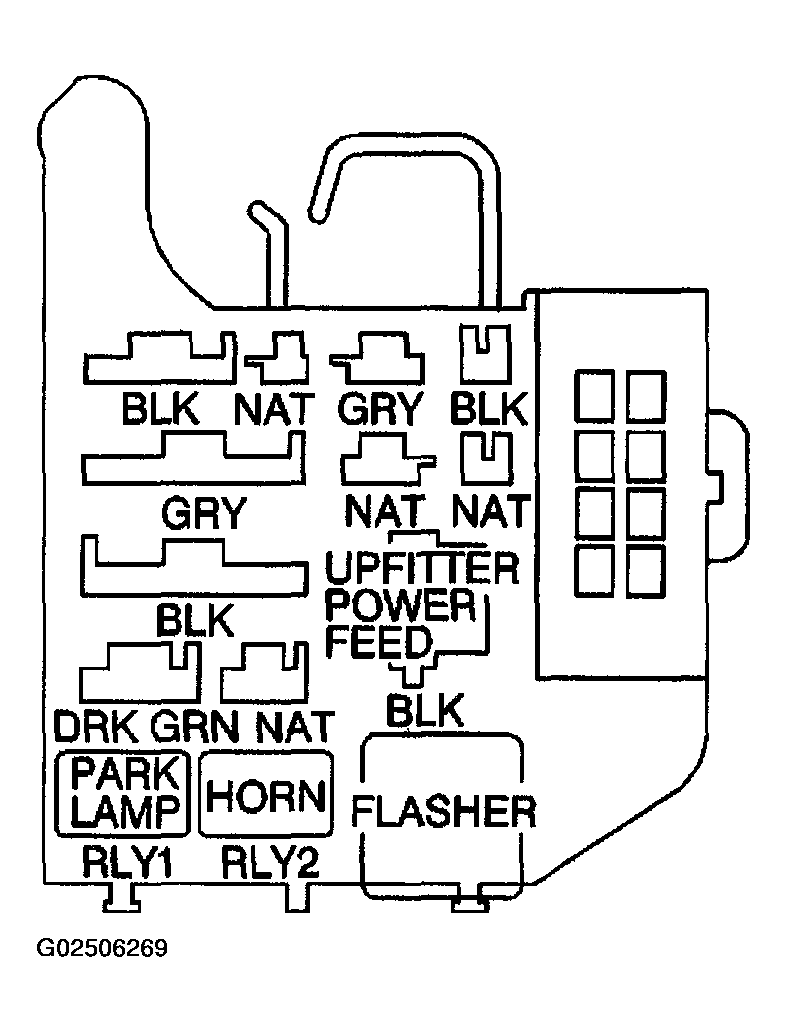

    4. Fig 1: Identifying Convenience Center
    G02506269Courtesy of GENERAL MOTORS CORP.
