Wheel Alignment Specifications

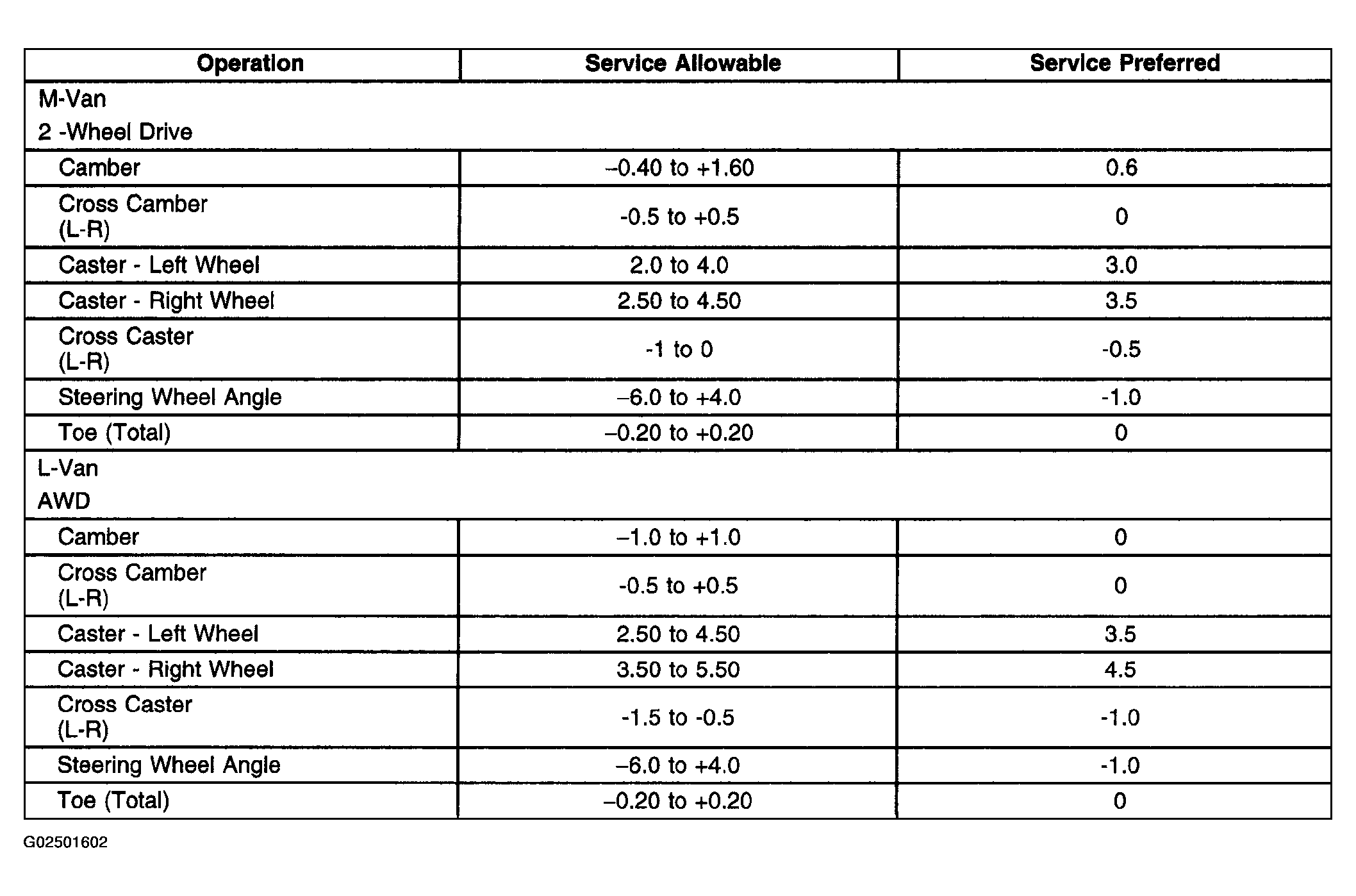

Fig 1: Wheel Alignment Specifications
G02501602Courtesy of GENERAL MOTORS CORP.
