Liftglass Lock/Unlock Relay Connector End View
Liftglass Lock/Unlock Relay Connector End View

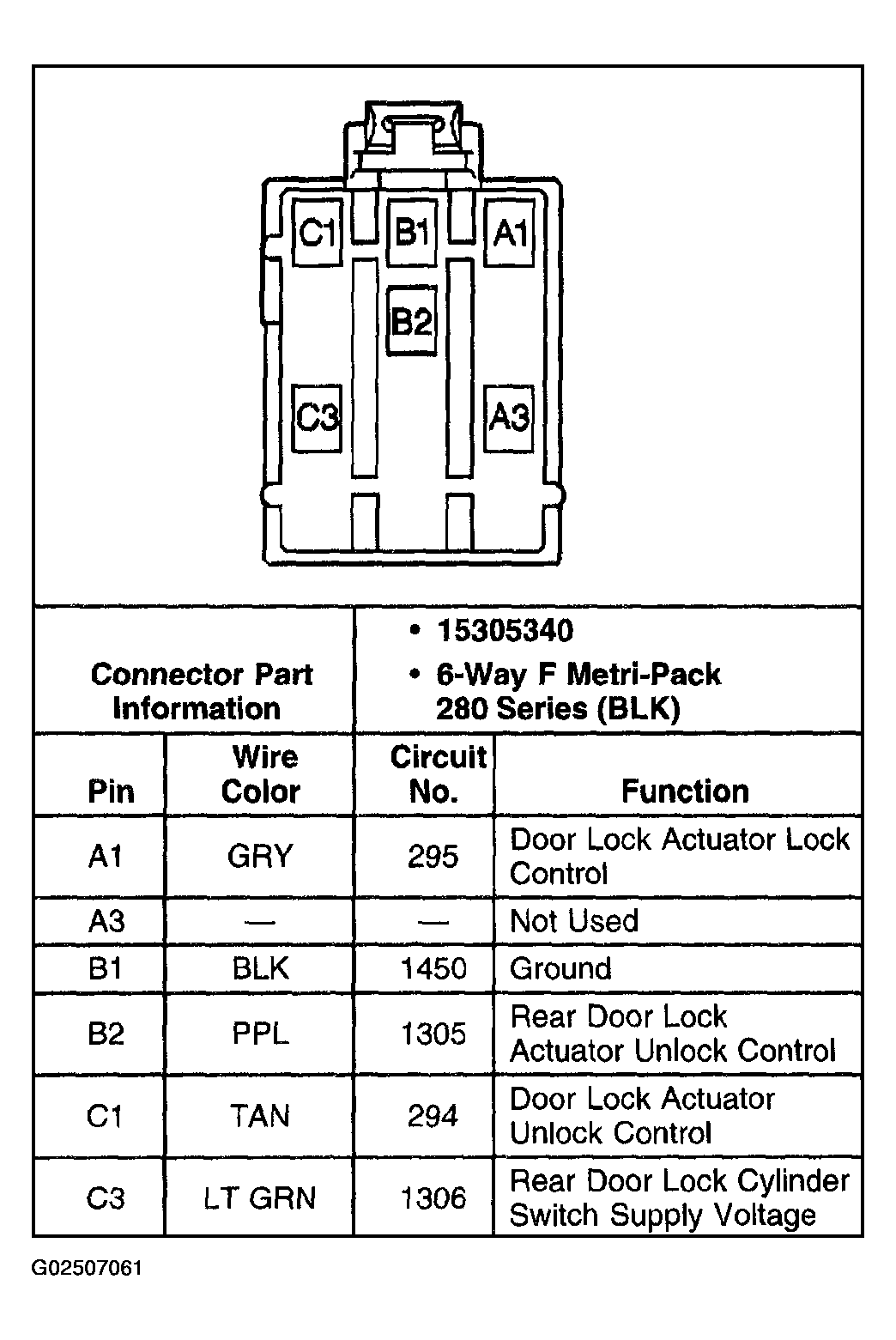

Fig 1: Liftglass Lock/Unlock Relay Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
