Ignition Coil: Removal

Turn ignition off. Remove engine cover. Disconnect harness connectors from ignition coil. Slightly twist ignition coil wire at ignition coil. See Fig 1 . Remove ignition coil wire at ignition coil by pulling on the wire boot.
Remove ignition coil mounting studs. See Fig 2 . Remove ignition coil assembly. Drill and punch out the 2 rivets holding the ignition coil to the bracket. See Fig 3 . Remove ignition coil from bracket.

Fig 1: Removing Ignition Coil Wire

Courtesy of GENERAL MOTORS CORP.

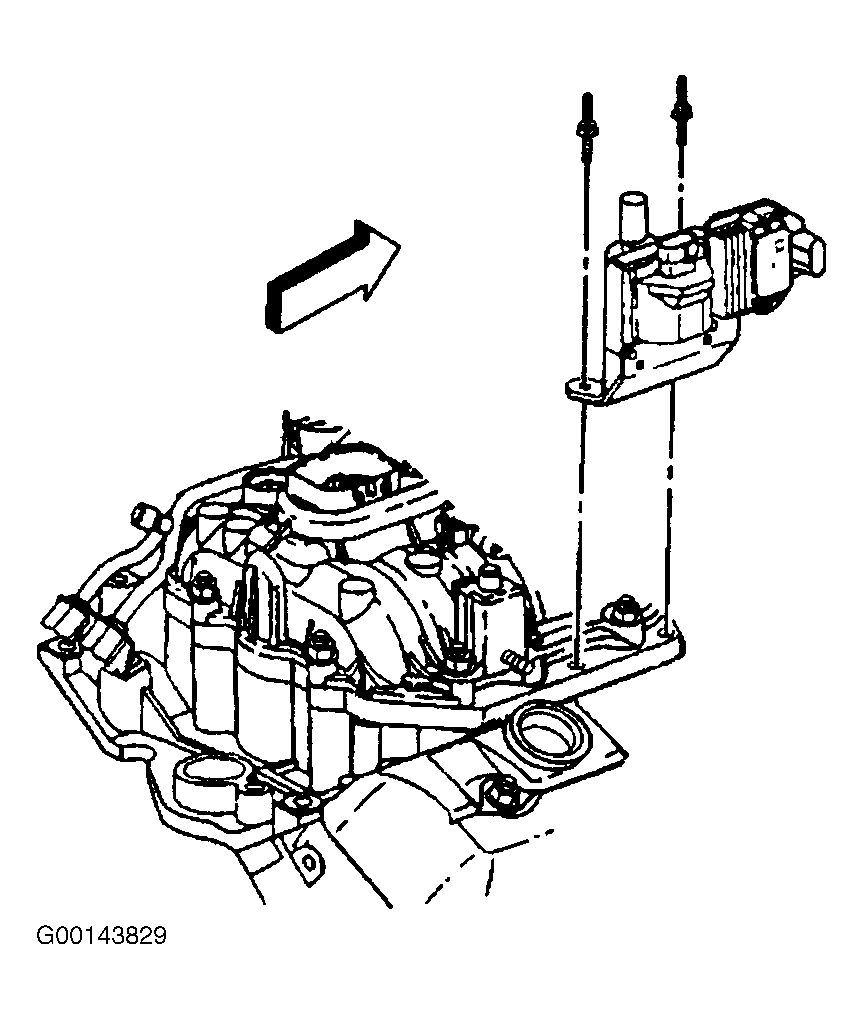

Fig 2: Removing Ignition Coil

Courtesy of GENERAL MOTORS CORP.

Fig 3: Removing Ignition Coil & Ignition Control Module From Mounting Bracket

Courtesy of GENERAL MOTORS CORP.
