Power Steering Pump Disassembled View

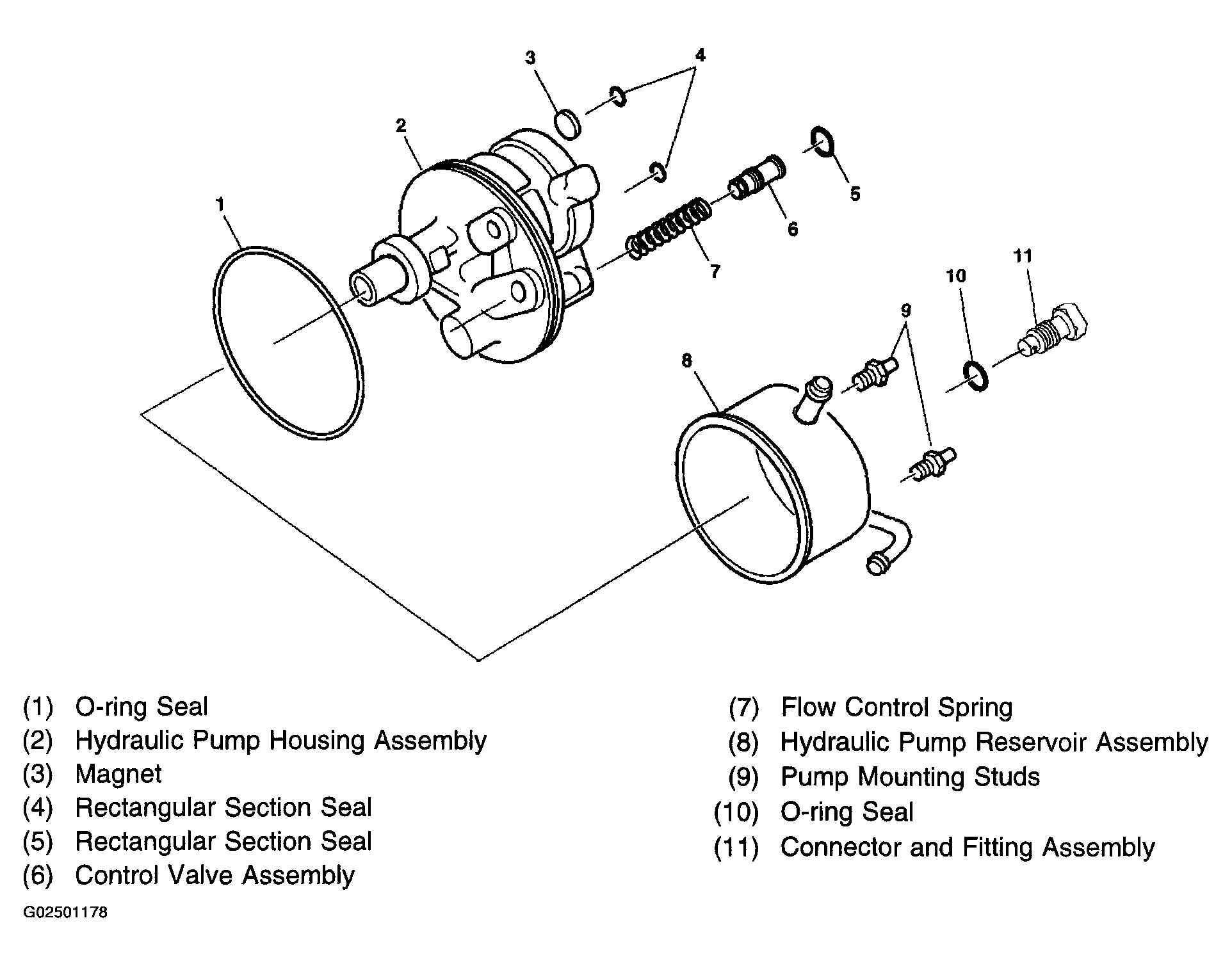

Fig 1: Identifying Power Steering Pump Components
G02501178Courtesy of GENERAL MOTORS CORP.
