Fuel Level Sensor Connector End View - L65
Fuel Level Sensor Connector End View - L65

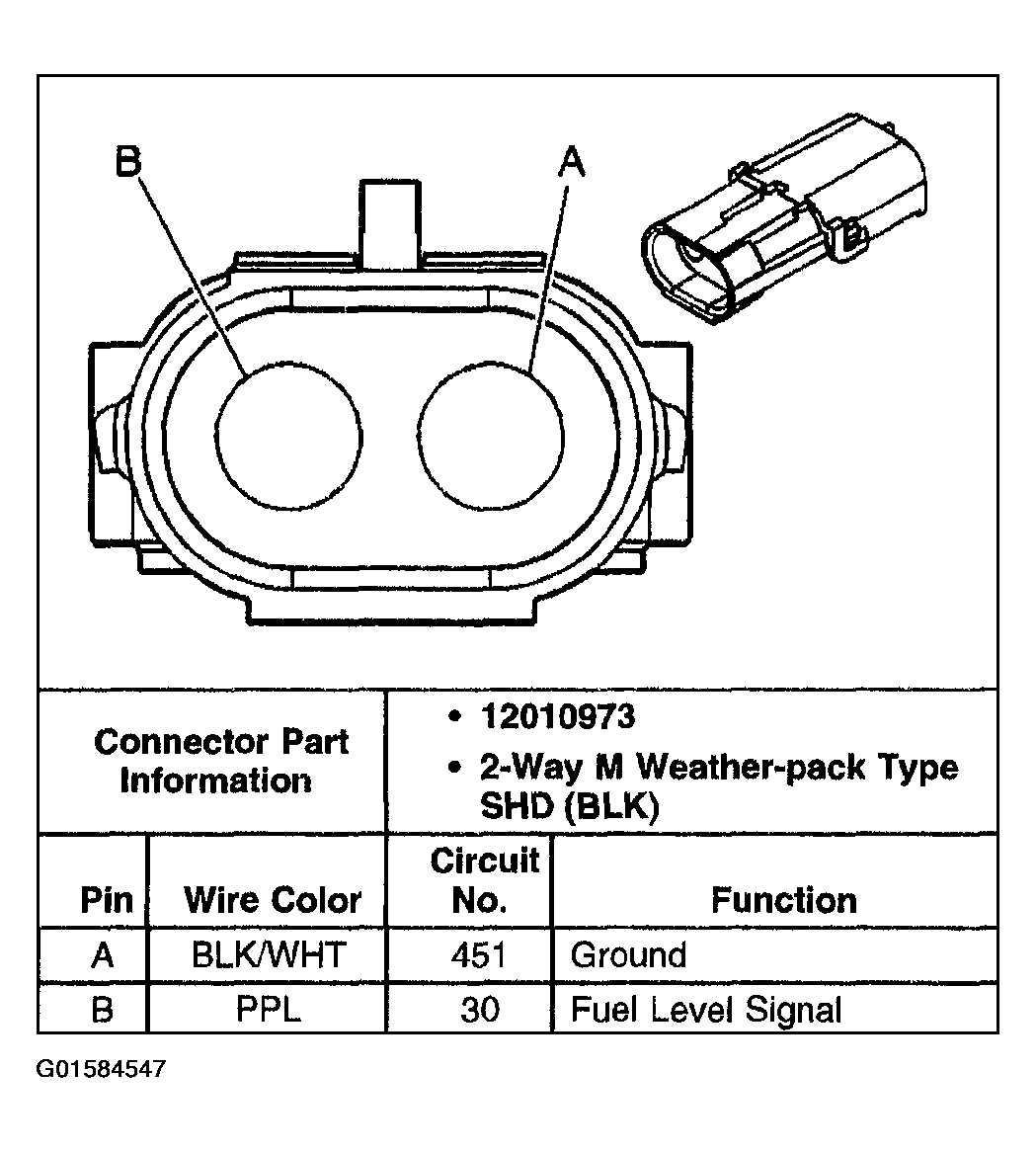

Fig 1: Fuel Level Sensor Connector End View - L65
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
