Removal Procedure

Raise the vehicle.
Remove the nut from the drag link (9) ball stud.
Loosen the adjuster sleeve retaining nuts.

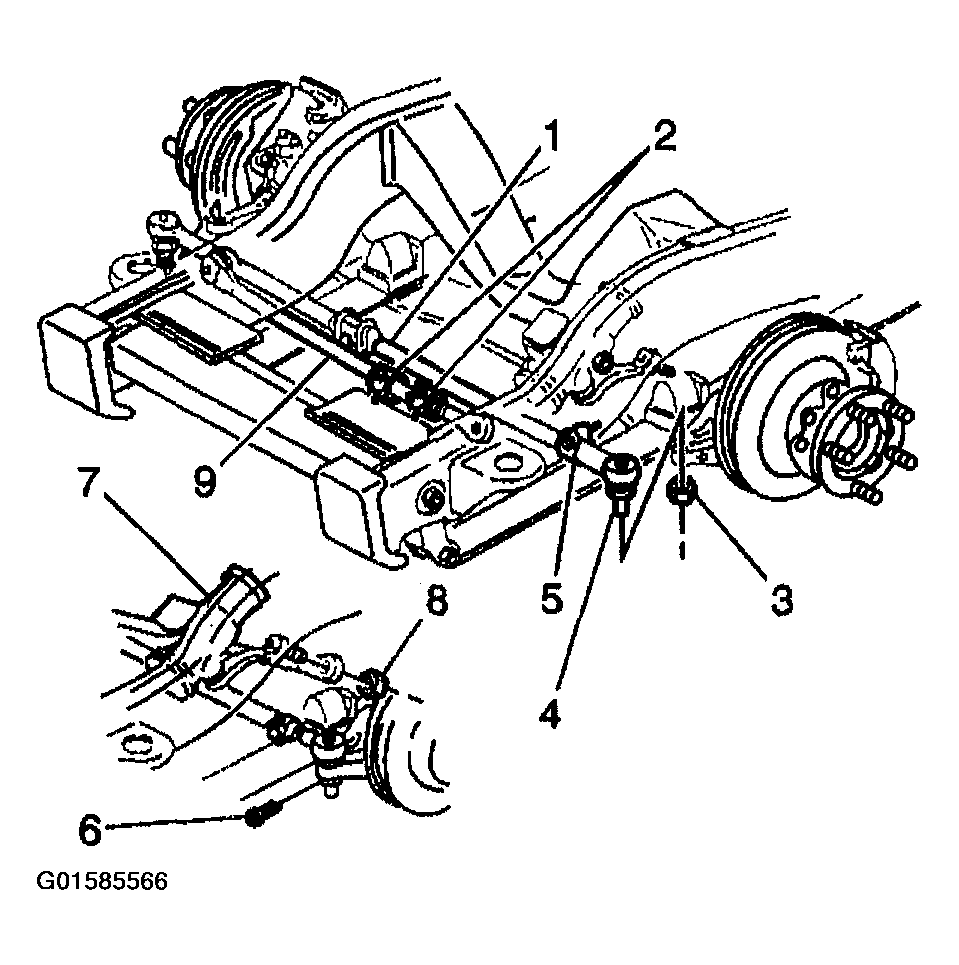

Fig 1: Drag Link Ball Stud Nut
Courtesy of GENERAL MOTORS CORP.
Remove the drag link from the tie rod using the J 24319-B (1).
Remove drag link from adjuster sleeve.
Inspect the threads on the adjuster sleeve for damage.

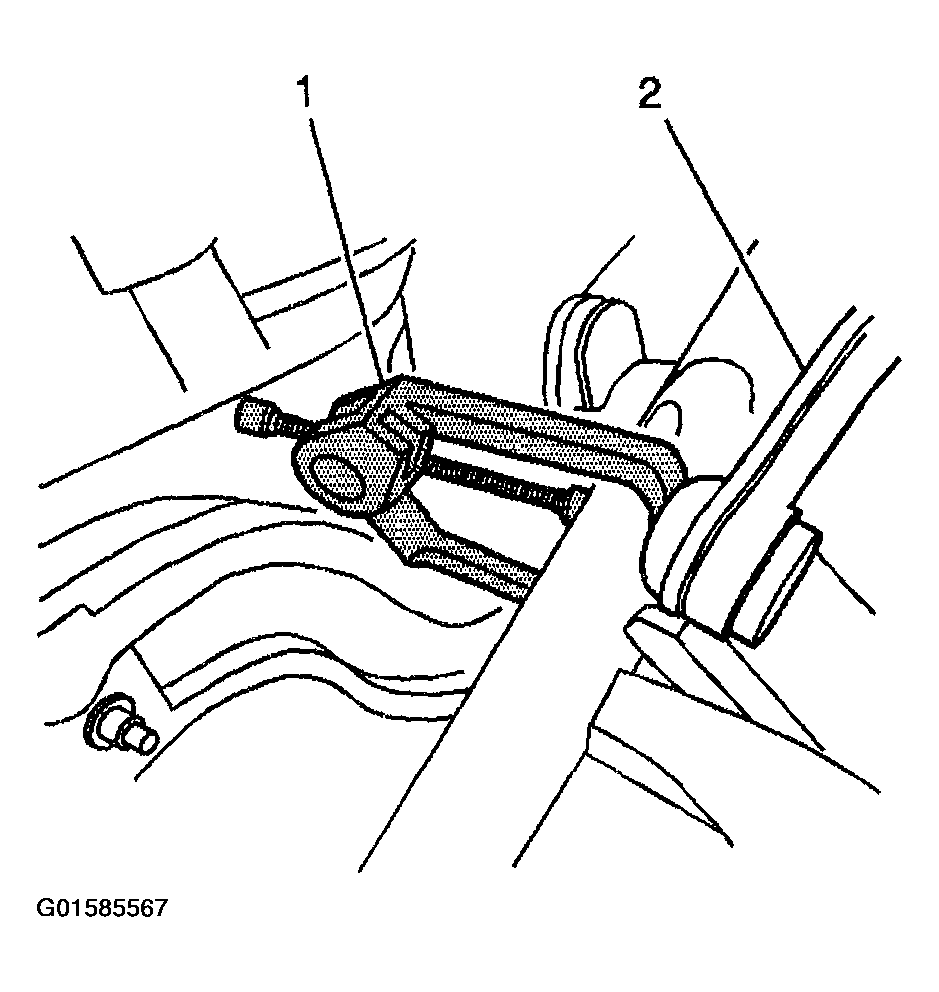

Fig 2: Removing Drag Link From Tie Rod Using J 24319-B
Courtesy of GENERAL MOTORS CORP.
