Installation Procedure

Install the clutch pedal position switch to the pushrod with the plastic tabs.
Connect the clutch pedal position switch electrical connector (1).

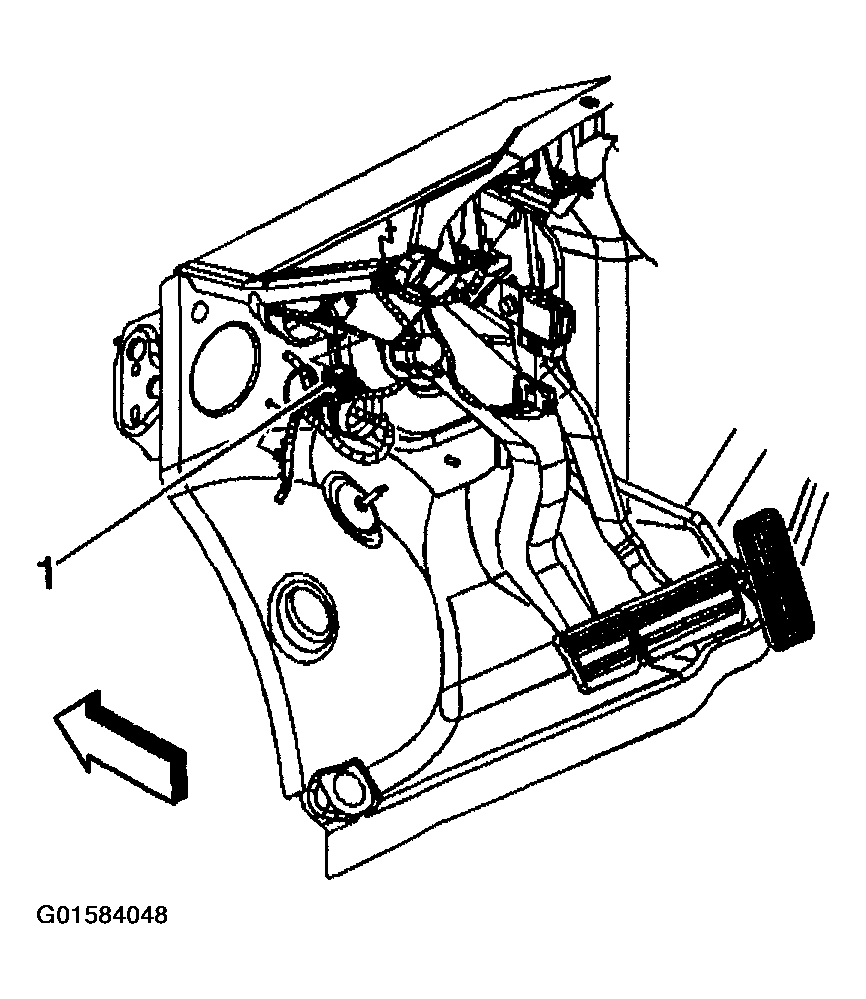

Fig 1: Clutch Pedal Position Switch Electrical Connector
Courtesy of GENERAL MOTORS CORP.
