Coolant Level Switch Connector End View

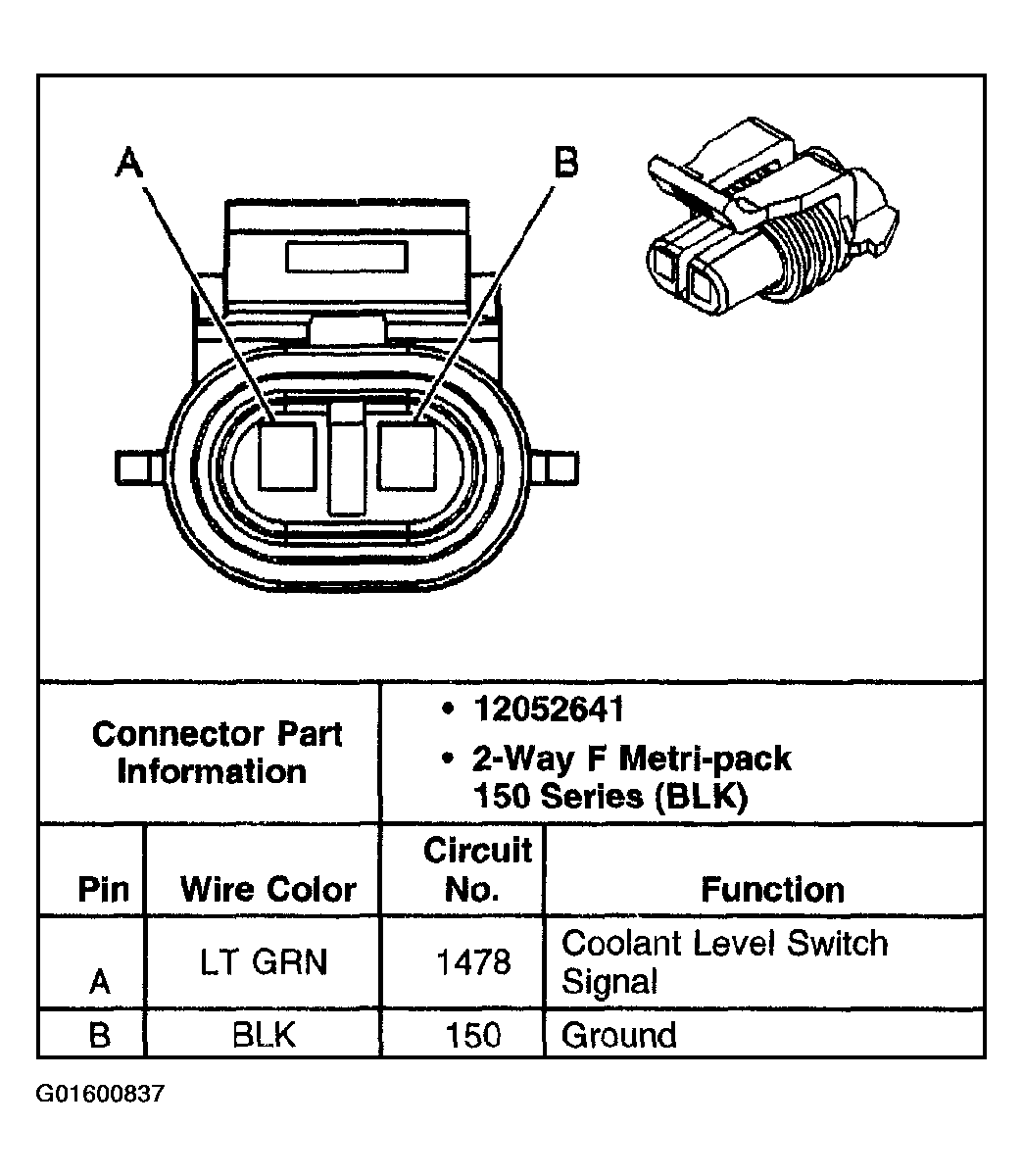

Fig 1: Coolant Level Switch Connector End View
G01600837Courtesy of GENERAL MOTORS CORP.
