Installation Procedure

  1. Connect the wire harness to the power window control module (3).
  2. Install the power window control module (3) to the molded pocket in the dash mat (1).
  3. Install the wire harness to the dash mat (1) above the floor tunnel by pushing on the rosebud clips.
  4. Install the driver side closeout insulator (1). Refer to LOCK ACTUATOR REPLACEMENT - Door .

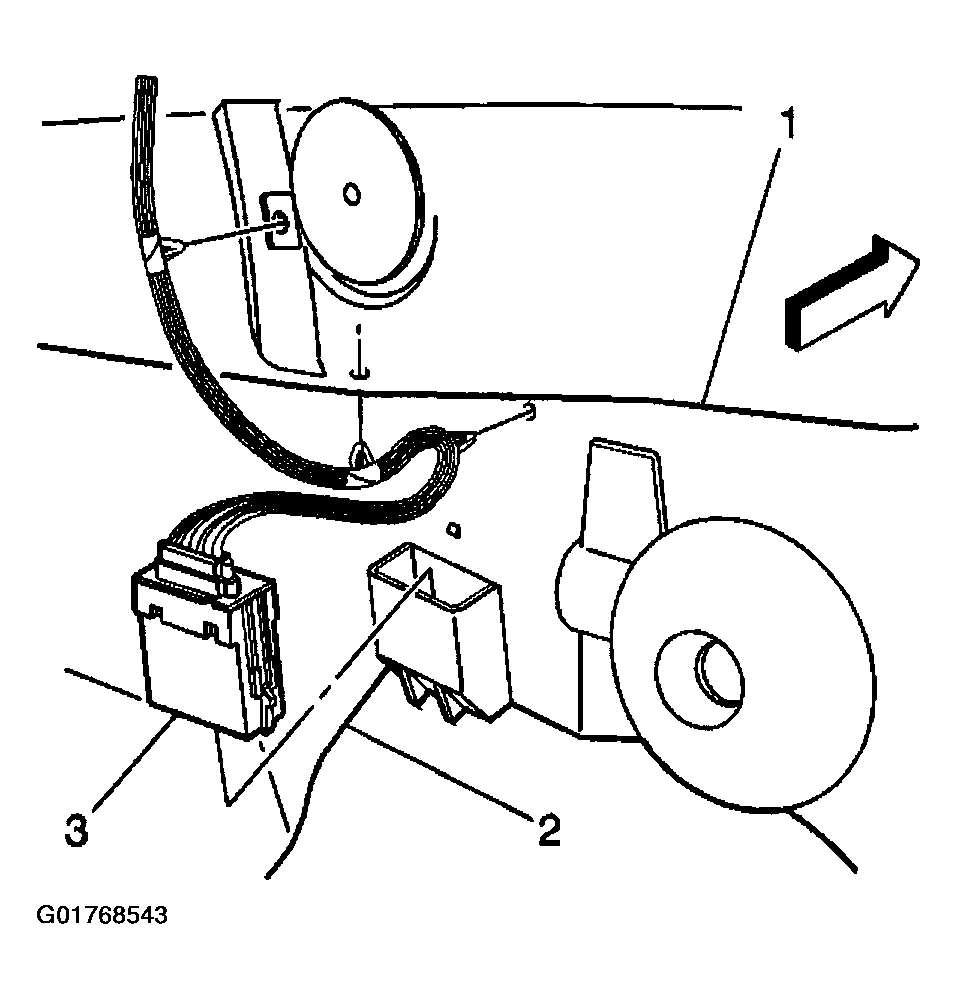

    Fig 1: Installing Power Window Control Module
    G01768543Courtesy of GENERAL MOTORS CORP.
