Installation Procedure

  1. Install the power window switches (3) to the accessory panel (1).
  2. Connect the power window switch electrical connector (4).
  3. Insert the front edge of the driver side accessory panel (1), and or the rear edge of the passenger side accessory panel, into the door trim panel.
  4. Press the rear edge of the driver side accessory panel (1), and or the front edge of the passenger side accessory panel until fully seated.

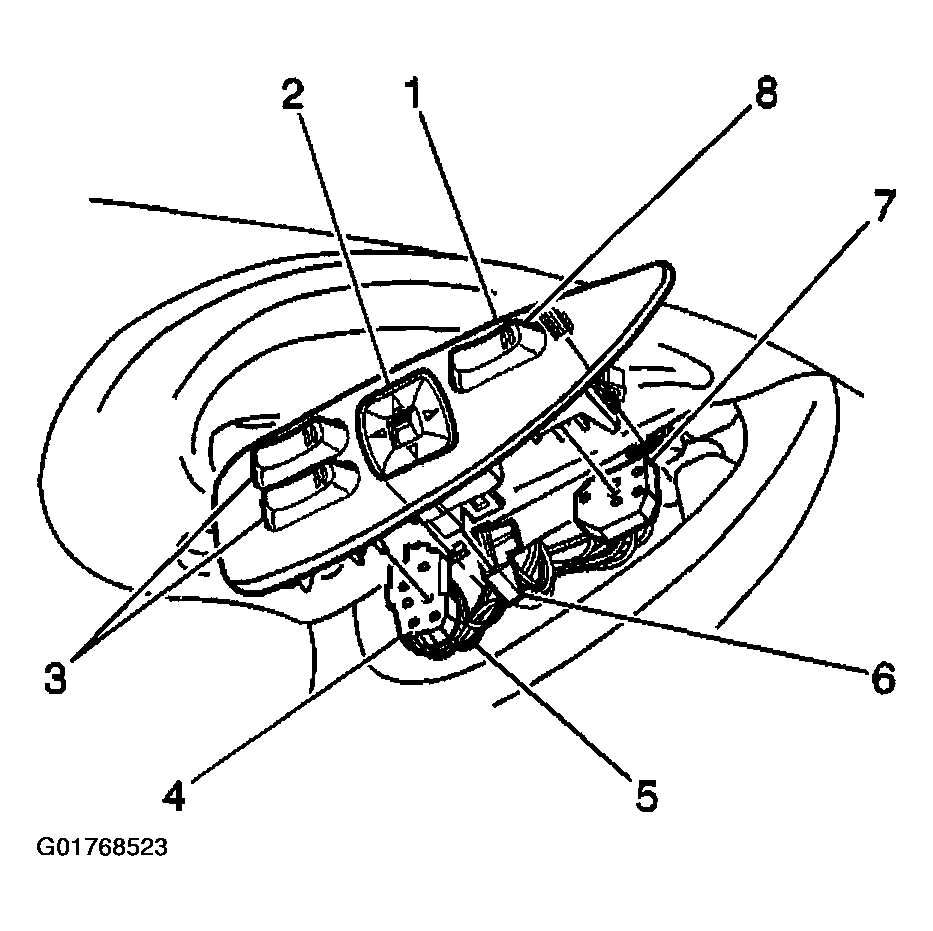

    Fig 1: Installing Power Window Switch (Pontiac)
    G01768523Courtesy of GENERAL MOTORS CORP.
