Stop Lamp Switch Connector End View C2
Stop Lamp Switch Connector End View C2

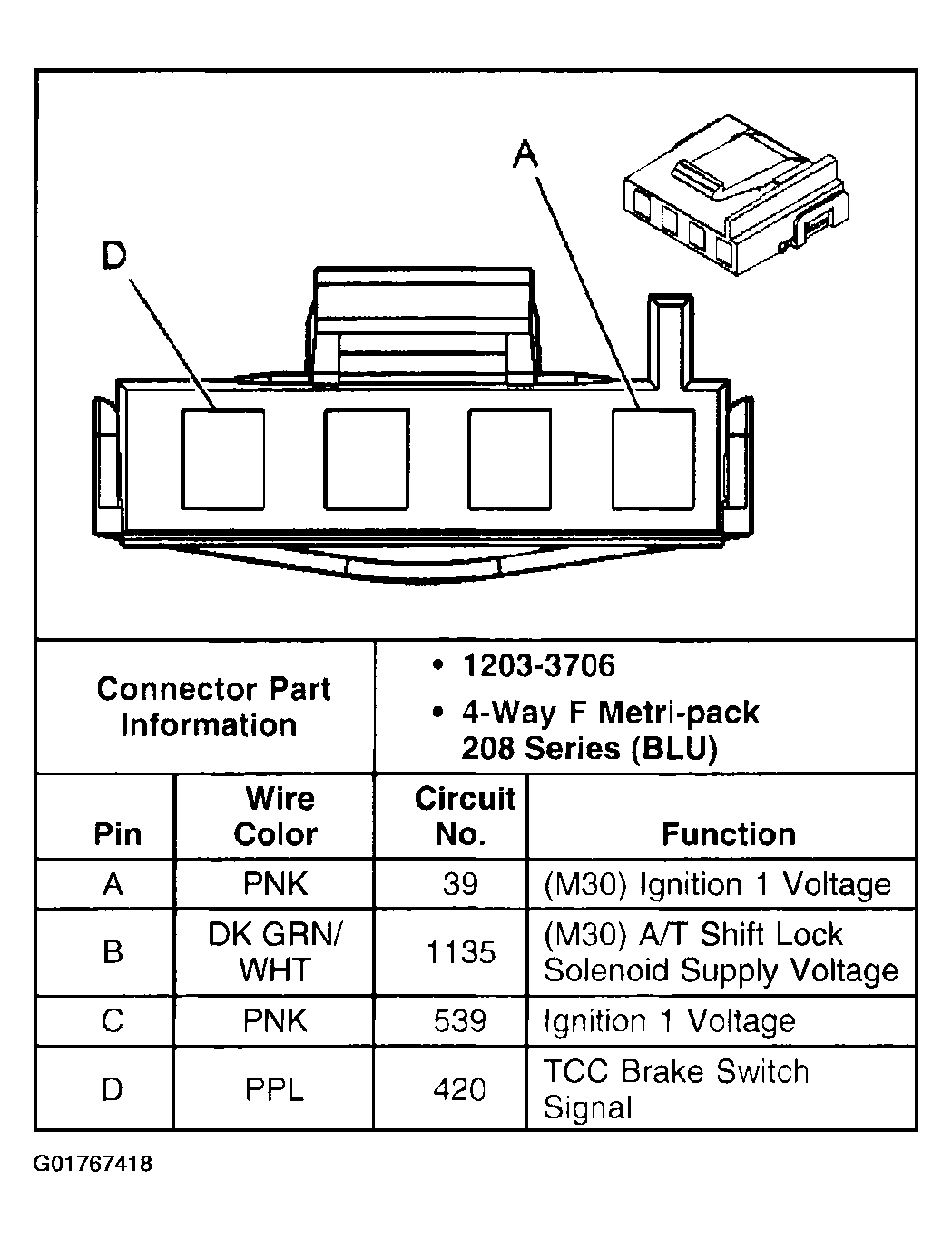

Fig 1: Stop Lamp Switch Connector End View C2
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
