Cooling System Connector End Views
Cooling System Connector End Views

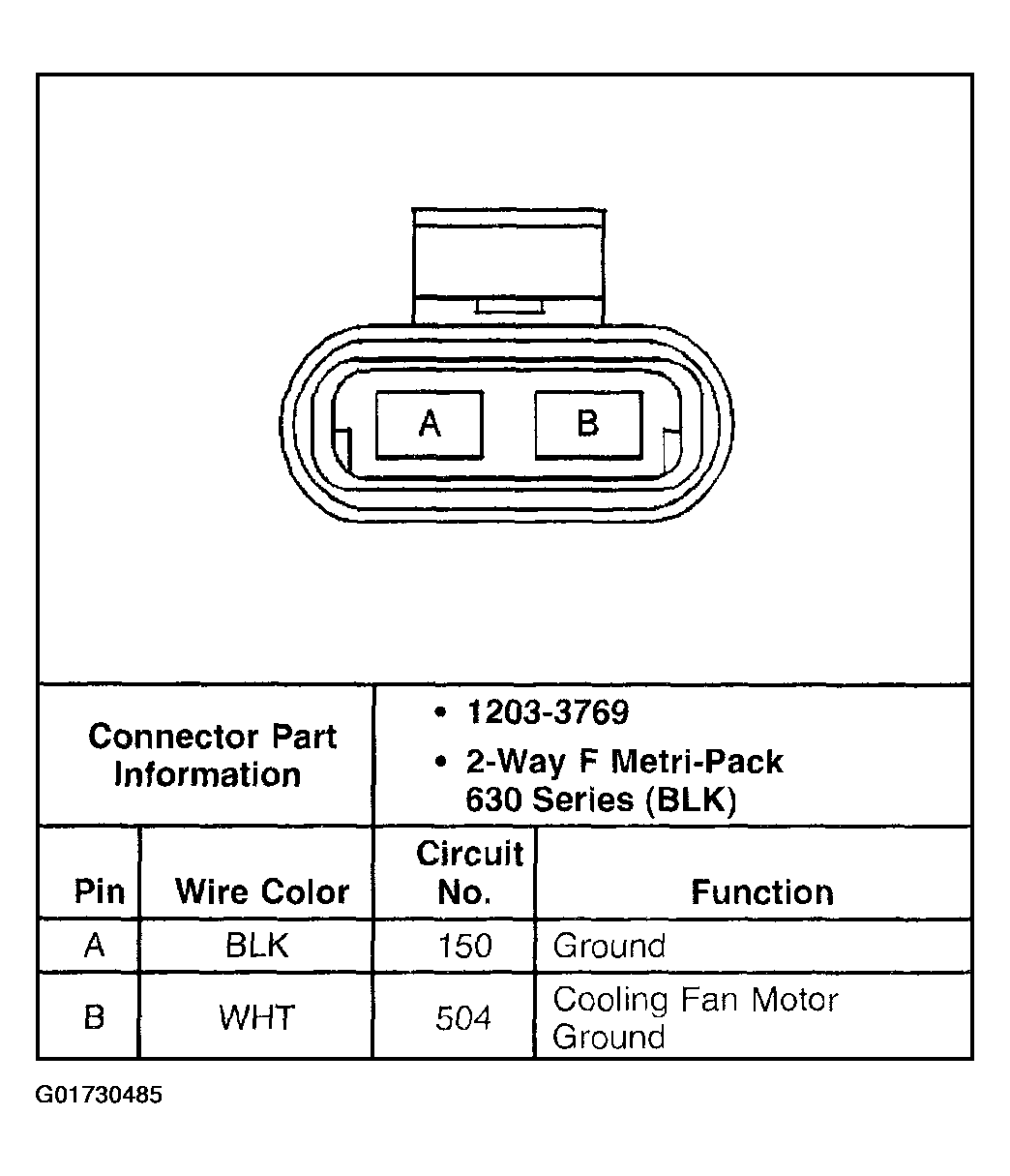

Fig 1: Cooling Fan Left
Courtesy of GENERAL MOTORS CORP.

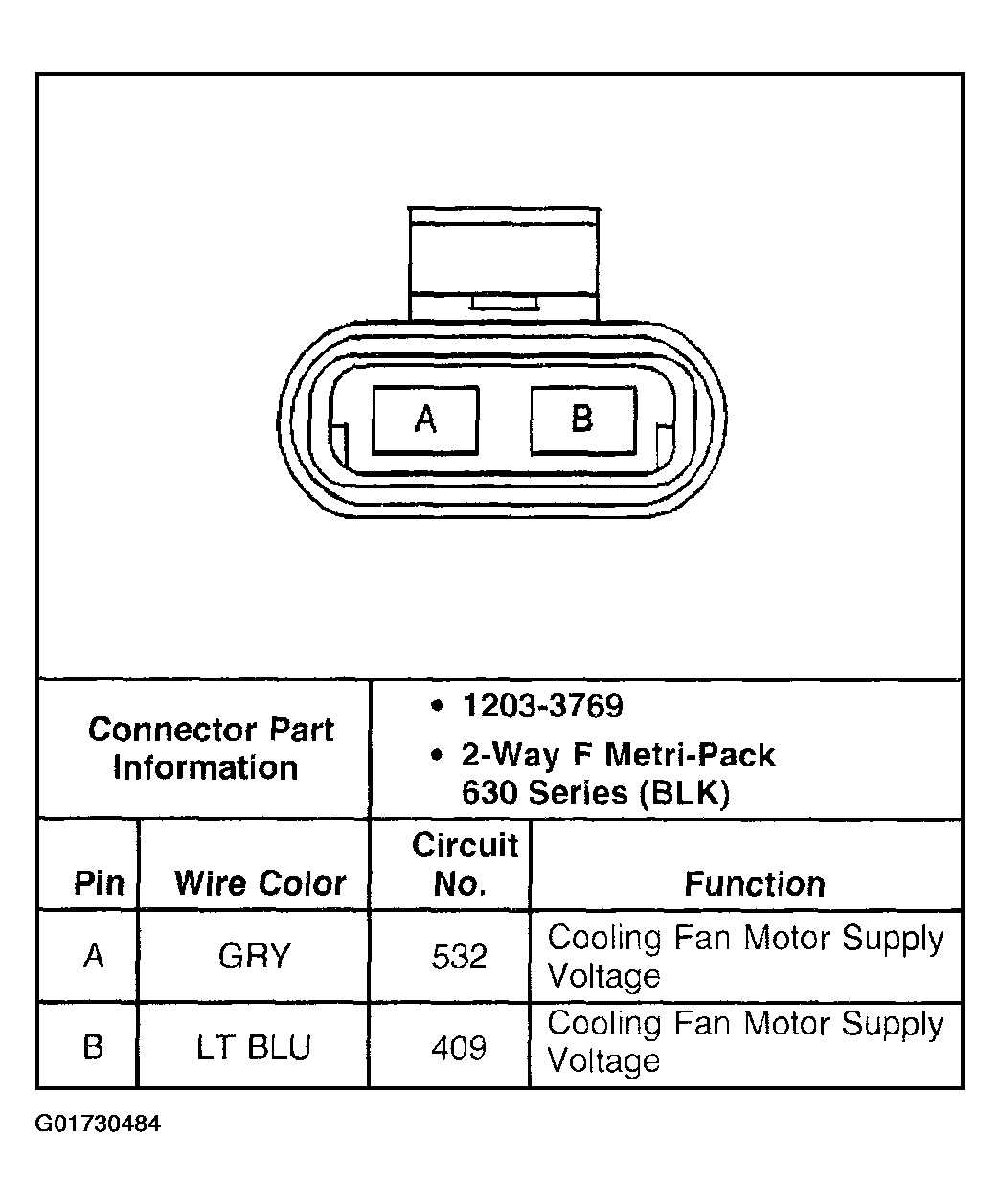

Fig 2: Cooling Fan Right
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
