Stationary Windows Connector End Views

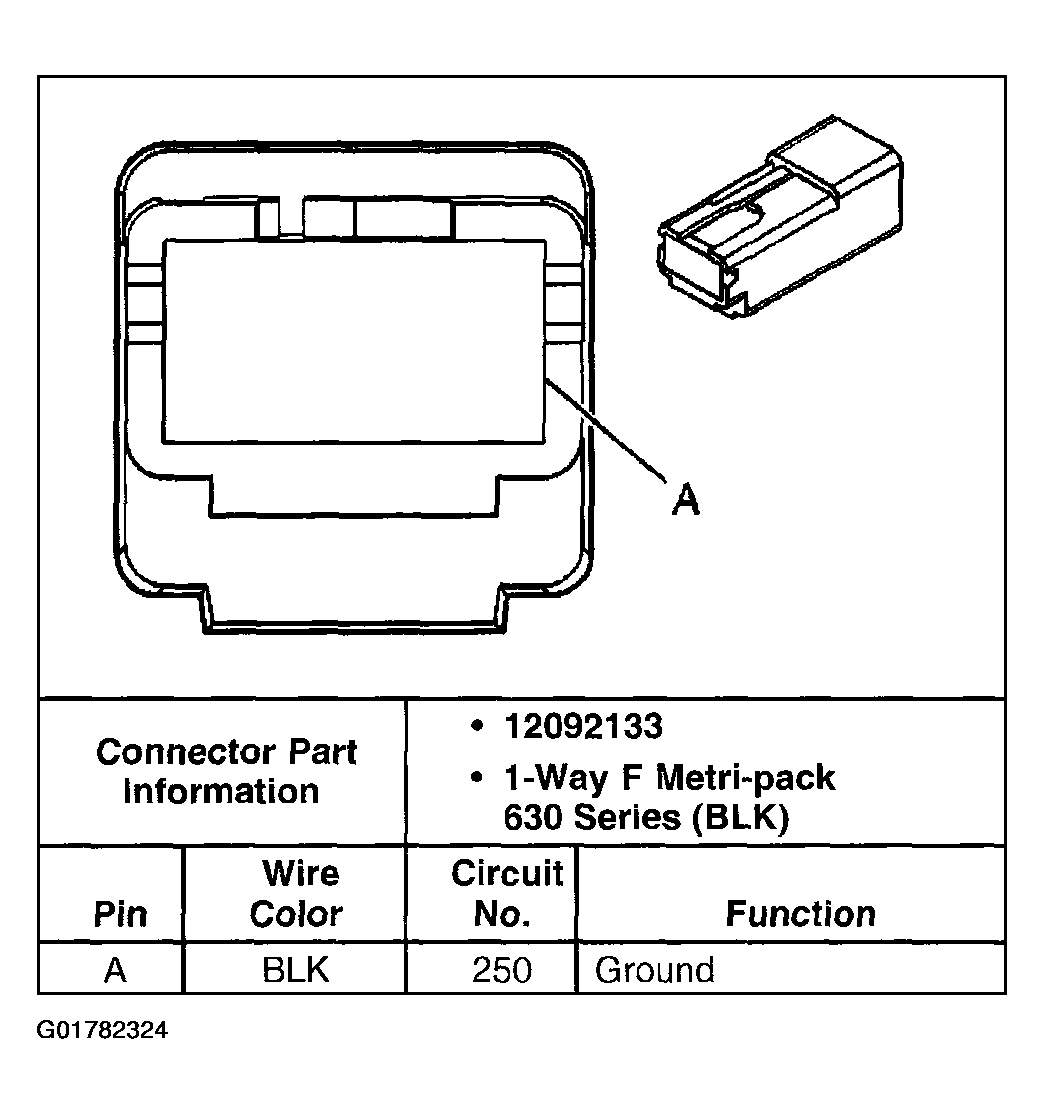

Fig 1: Identifying Rear Window Defogger Grid C1 Terminals

Courtesy of GENERAL MOTORS CORP.

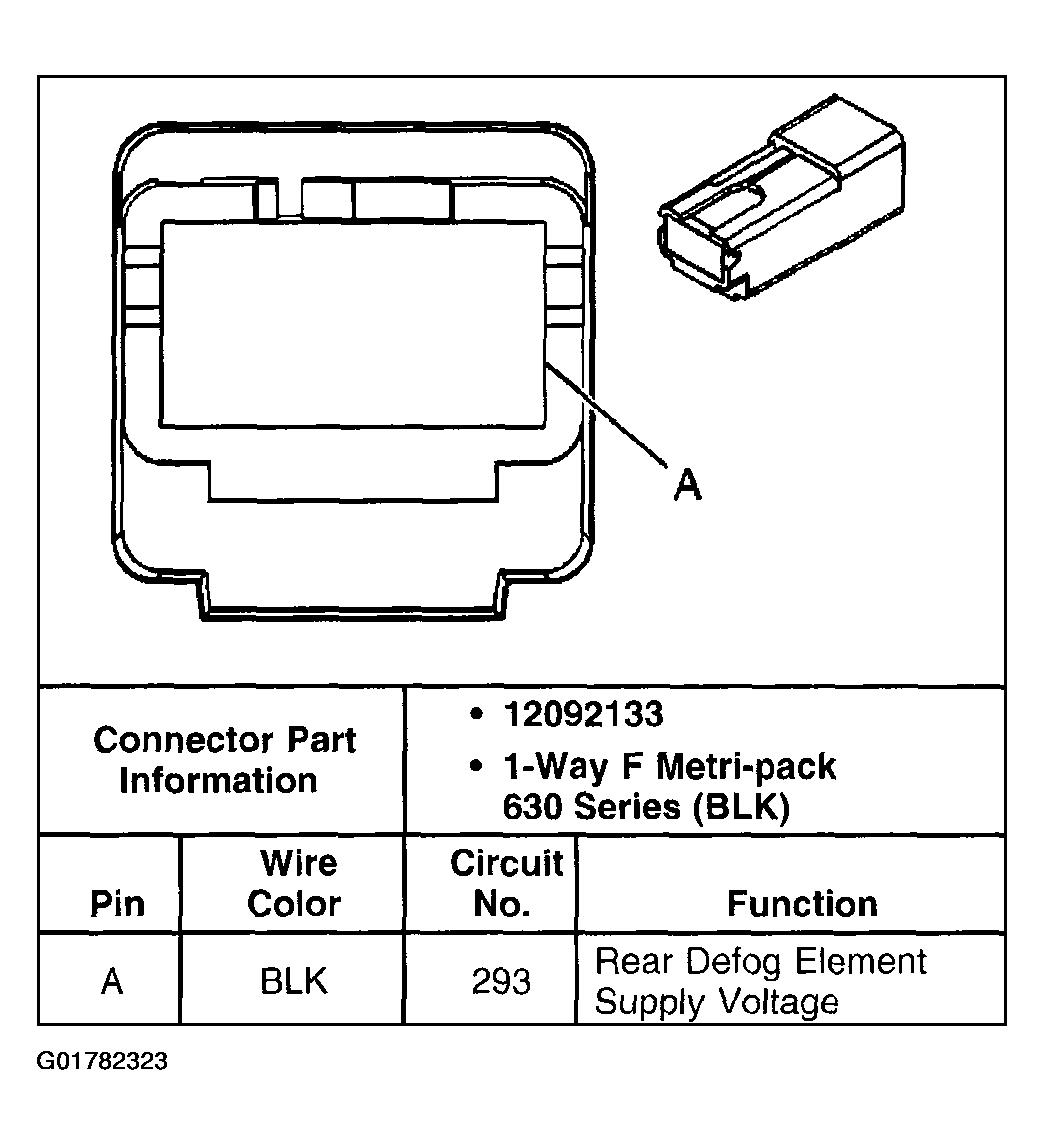

Fig 2: Identifying Rear Window Defogger Grid C2 Terminals

Courtesy of GENERAL MOTORS CORP.
