Chevy Express G2500, Van Cargo Extended, 6.5 F
›
Repair and Diagnosis
›
Steering
›
Power Steering System
›
Component Locator
›
Power Steering Pump Disassembled View
Power Steering Pump Disassembled View

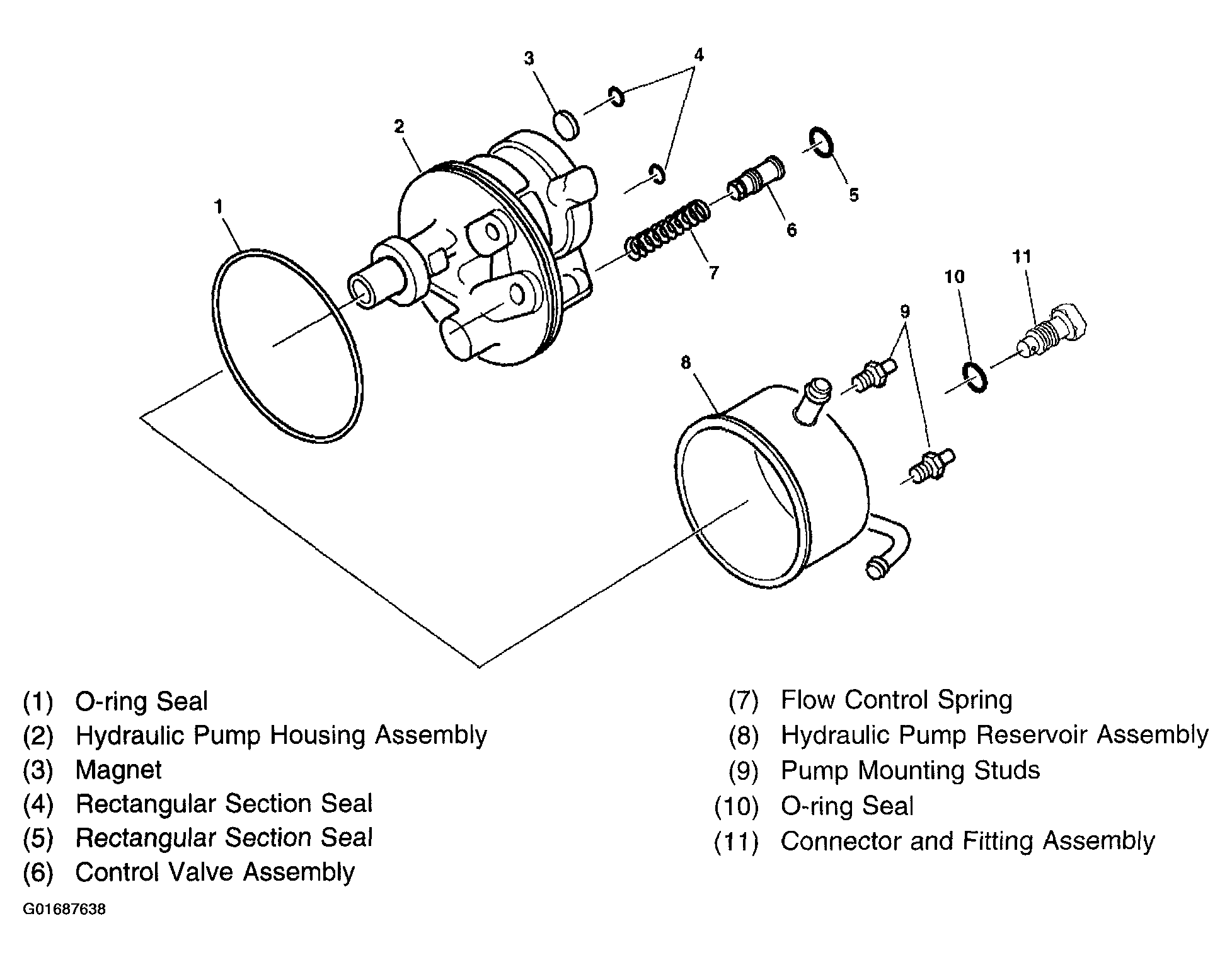

Fig 1: Power Steering Pump
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
