Removal Procedure

  1. Turn OFF the ignition switch.
  2. Remove the front floor kick-up panel (RH). Refer to KICK-UP PANEL REPLACEMENT - FRONT FLOOR .
  3. Pull up on the BCMs lower mounting tab to release the BCM from the bracket.
  4. Release the BCMs upper mounting tabs by lifting the BCM out of the slots in the bracket.
  5. Disconnect the harness connectors from the BCM.
  6. Remove the BCM from the vehicle.

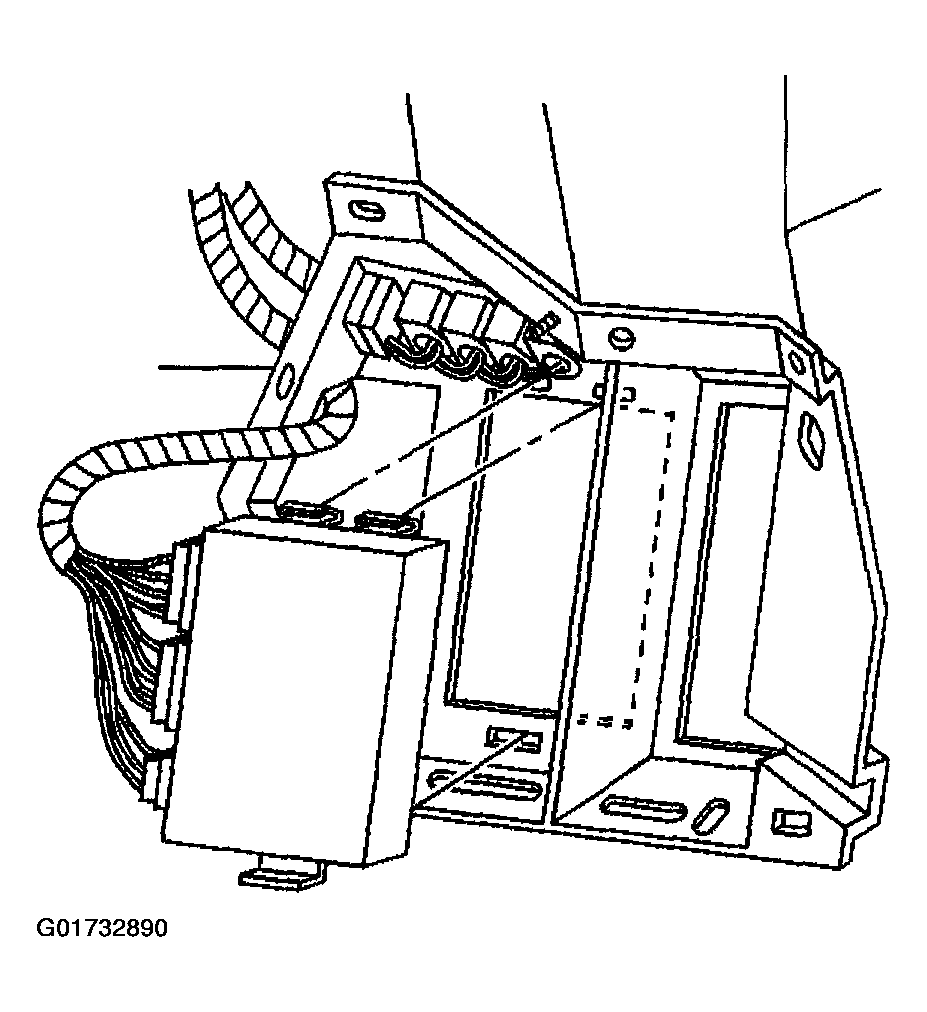

    Fig 1: Removing Body Control Module
    G01732890Courtesy of GENERAL MOTORS CORP.
