Removal Procedure

  1. Turn the ignition OFF.
  2. Drain the cooling system. Refer to DRAIN & REFILL COOLING SYSTEM.
  3. Disconnect and remove the radiator inlet hose.
  4. Loosen the two retaining nuts (1) and carefully reposition the EBCM to access the brake pressure sensor (2).
  5. Disconnect the brake pressure sensor electrical connector.
  6. Remove the brake pressure sensor from the vehicle.

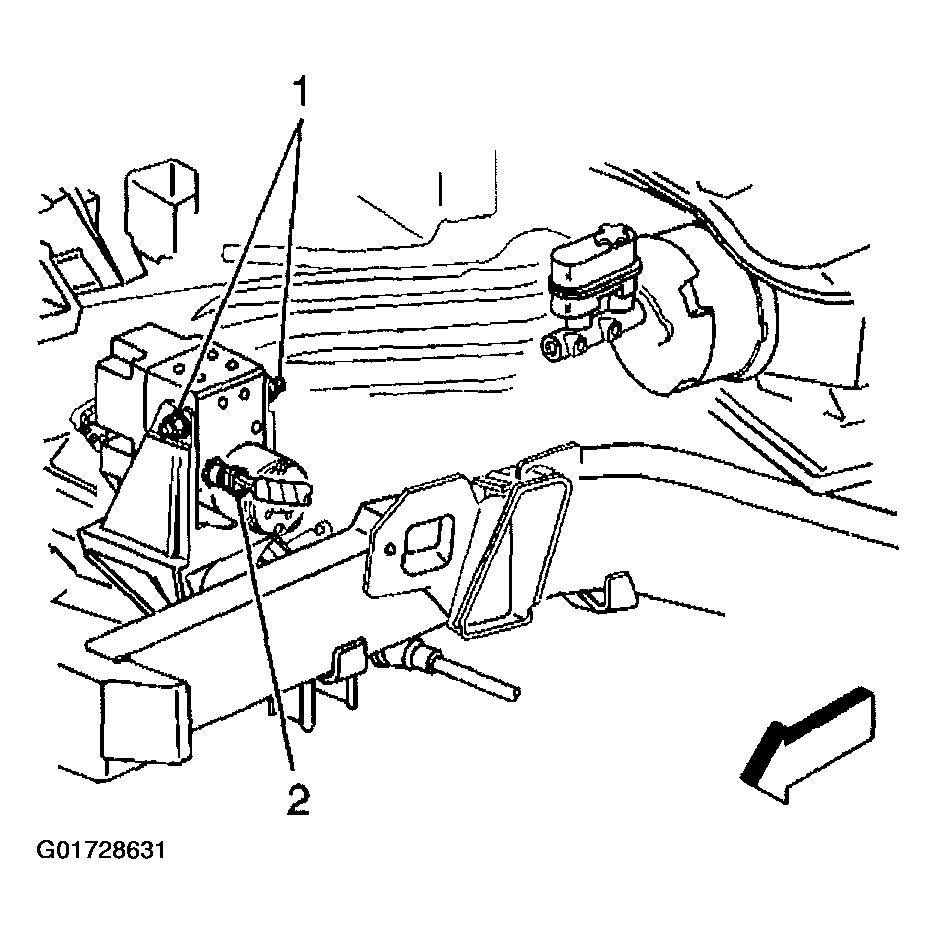

    Fig 1: Removing EBCM Insulator Nuts
    G01728631Courtesy of GENERAL MOTORS CORP.
