Removal Procedure

  1. Remove the push-in retainer attaching the air inlet screen and battery heat shield to the plenum panel.
    Fig 1: Removing Battery Heat Shield Retainer
    G01694896Courtesy of GENERAL MOTORS CORP.
  2. Remove the push-in retainer attaching the battery heat shield to the wheelhouse panel.
  3. Lift the battery heat shield from the ground stud and remove the shield.

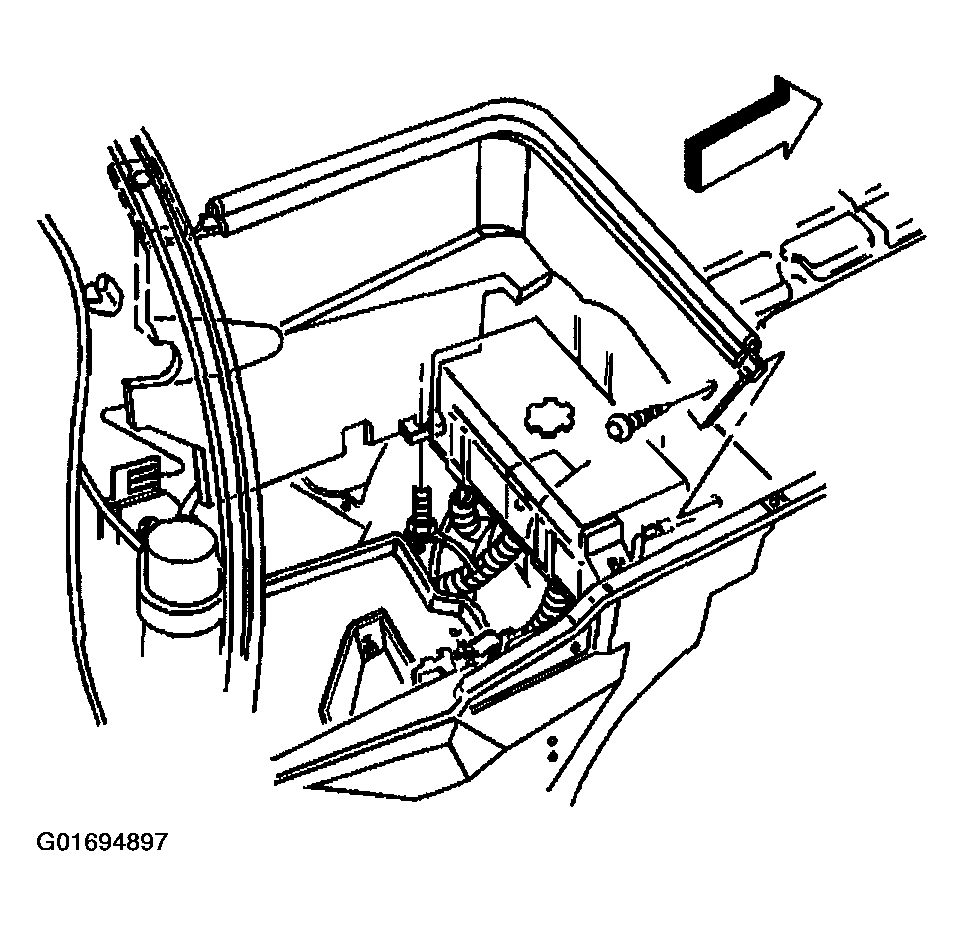

    Fig 2: Removing Battery Heat Shield
    G01694897Courtesy of GENERAL MOTORS CORP.
