Removal Procedure

WARNING: Refer to BATTERY DISCONNECT CAUTION.

Disconnect the negative battery cable. Refer to Battery Tray Replacement .
Disconnect the positive battery cable.

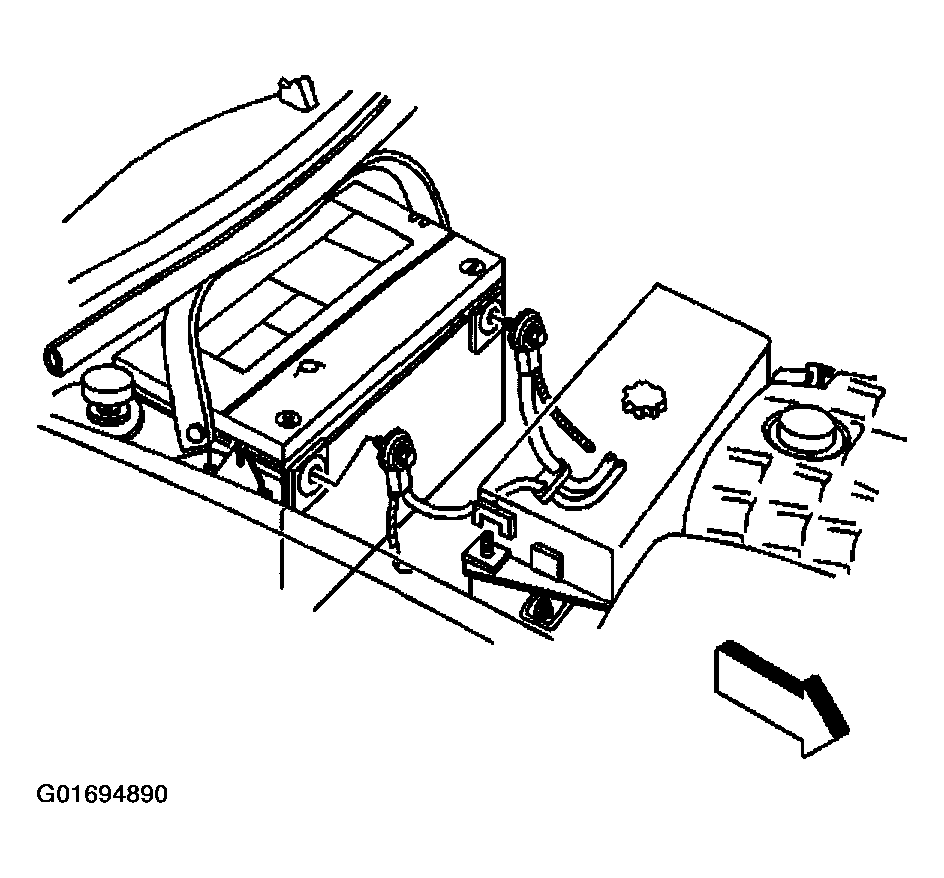

Fig 1: Disconnecting Battery Cables
Courtesy of GENERAL MOTORS CORP.
Remove the battery hold down retainer bolt and retainer.
Remove the battery.

Fig 2: Removing Battery Hold Down Retainer Bolt
Courtesy of GENERAL MOTORS CORP.
