Removal Procedure

Important:  If the steering column connectors are disconnected with the ignition in the ON position, the BCM will enter a fail enable mode and prevent steering column lock operation. The PCM will also inhibit vehicle motion by disabling fuel. To clear the BCM fail enable mode, disconnect the BCM fuse #25 for 15 seconds.

1. Disable the SIR system. Refer to DISABLING SYSTEM .
2. Turn the steering wheel far enough to the left to gain access to the upper coupling bolt.
3. Remove the upper coupling bolt.

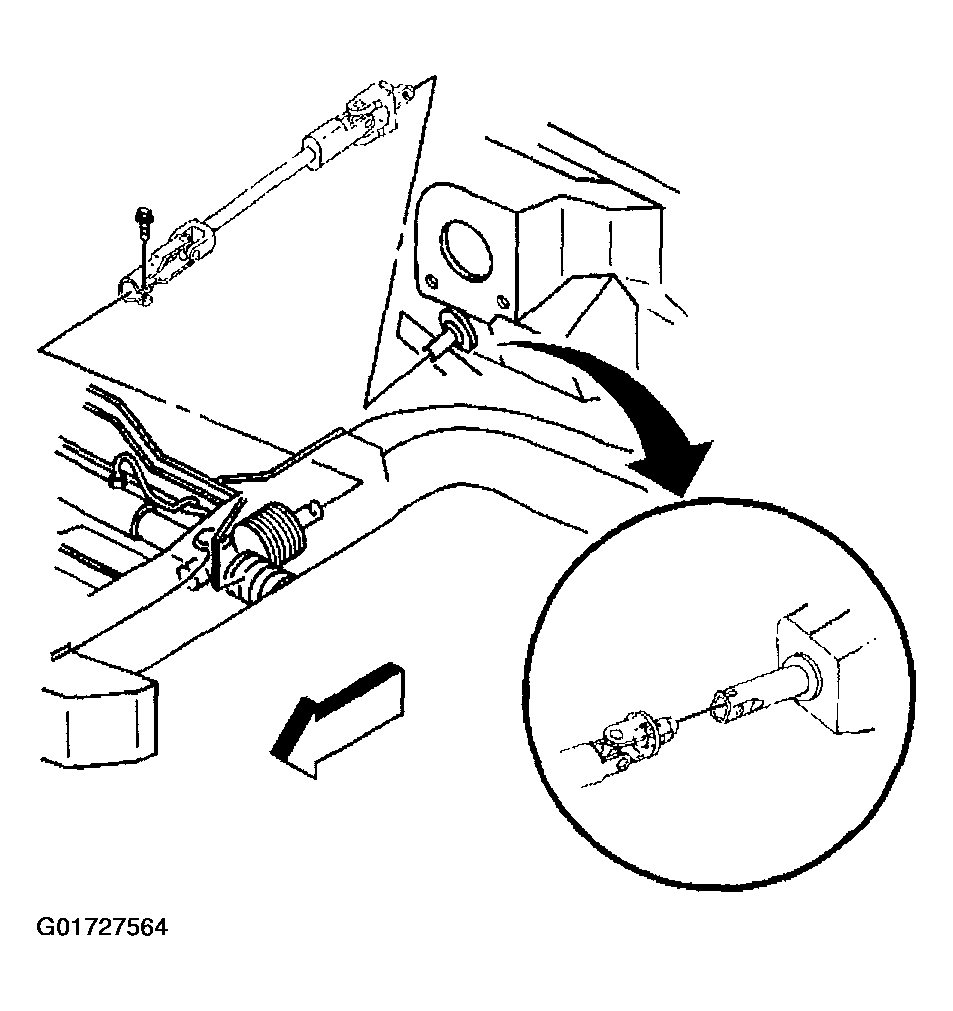

   Fig 1: Removing Upper Coupling Bolt

   Courtesy of GENERAL MOTORS CORP.
4. Turn the steering wheel back to the right until the wheels are in a straight ahead position and then lock the steering column.
5. Install the J 42640  to the steering column.
6. Remove the driver knee bolster trim panel. Refer to INSTRUMENT PANEL ACCESSORY TRIM PLATE & KNEE BOLSTER PANEL .
7. Remove the driver knee bolster bracket. Refer to INSTRUMENT PANEL ACCESSORY TRIM PLATE & KNEE BOLSTER PANEL .
8. Disconnect the electrical connectors from the instrument panel wiring harness.

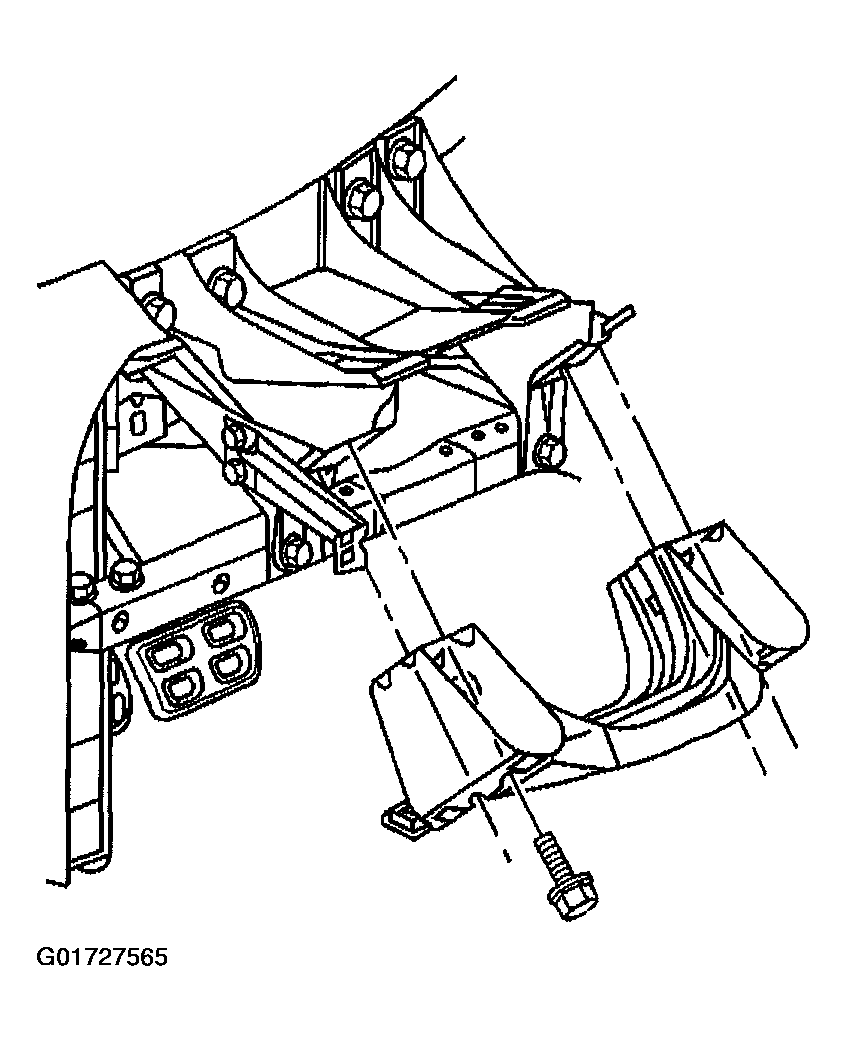

   Fig 2: Removing Driver Knee Bolster Bracket Bolts

   Courtesy of GENERAL MOTORS CORP.
9. Remove the nuts from lower steering column support plate (1).

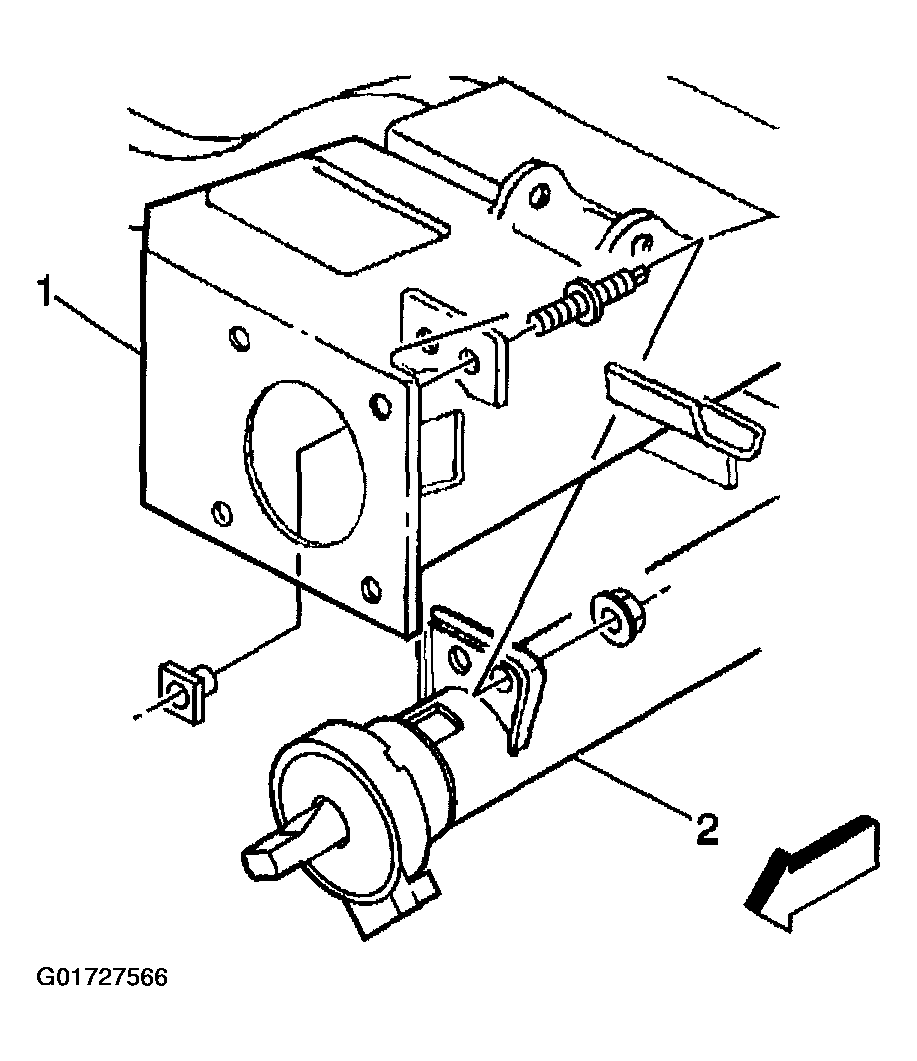

   Fig 3: Removing Lower Steering Column Support Plate Nuts

   Courtesy of GENERAL MOTORS CORP.
10. Remove the upper steering column bracket nuts from the upper reinforcement assembly (3).
11. Slide the steering column (2) off of the intermediate shaft.
12. Remove the steering column (2) from the vehicle. Rotate the steering column clockwise as the bottom of the steering column reaches the reinforcement assembly. This will allow the telescoping steering column motor and the steering wheel position sensor room to clear the instrument panel brace.

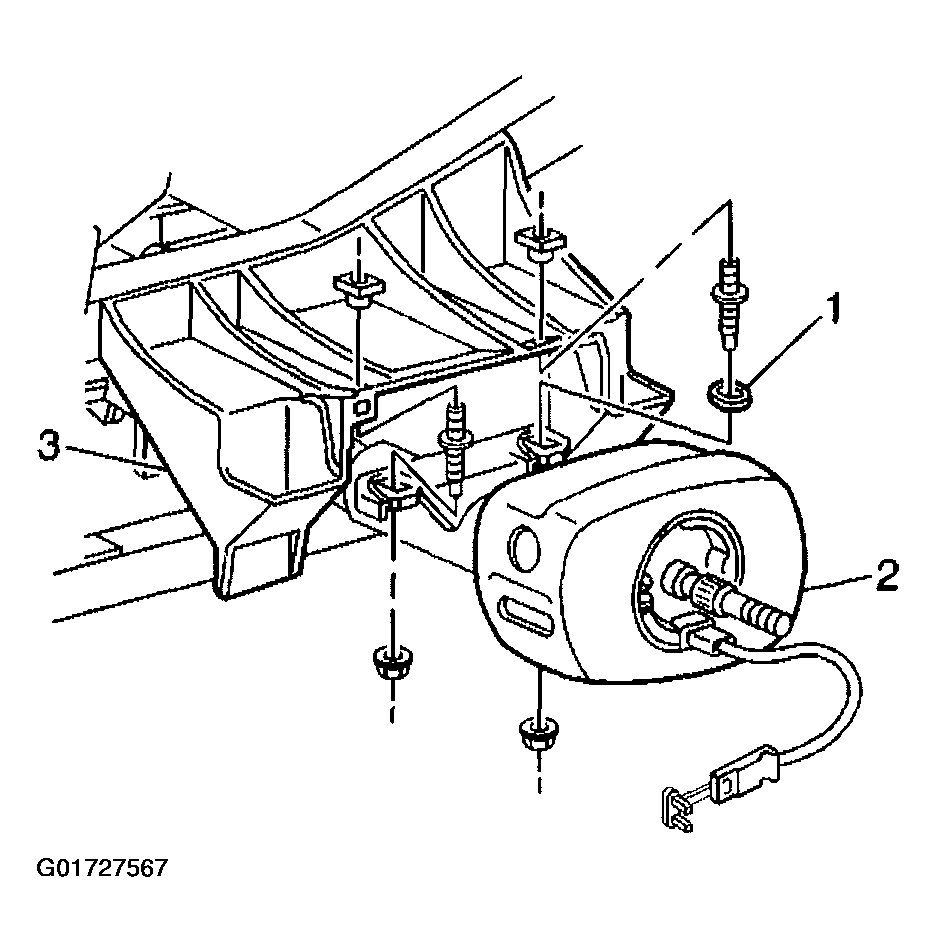

    Fig 4: Removing Upper Steering Column Bracket Nuts

    Courtesy of GENERAL MOTORS CORP.
