Installation Procedure

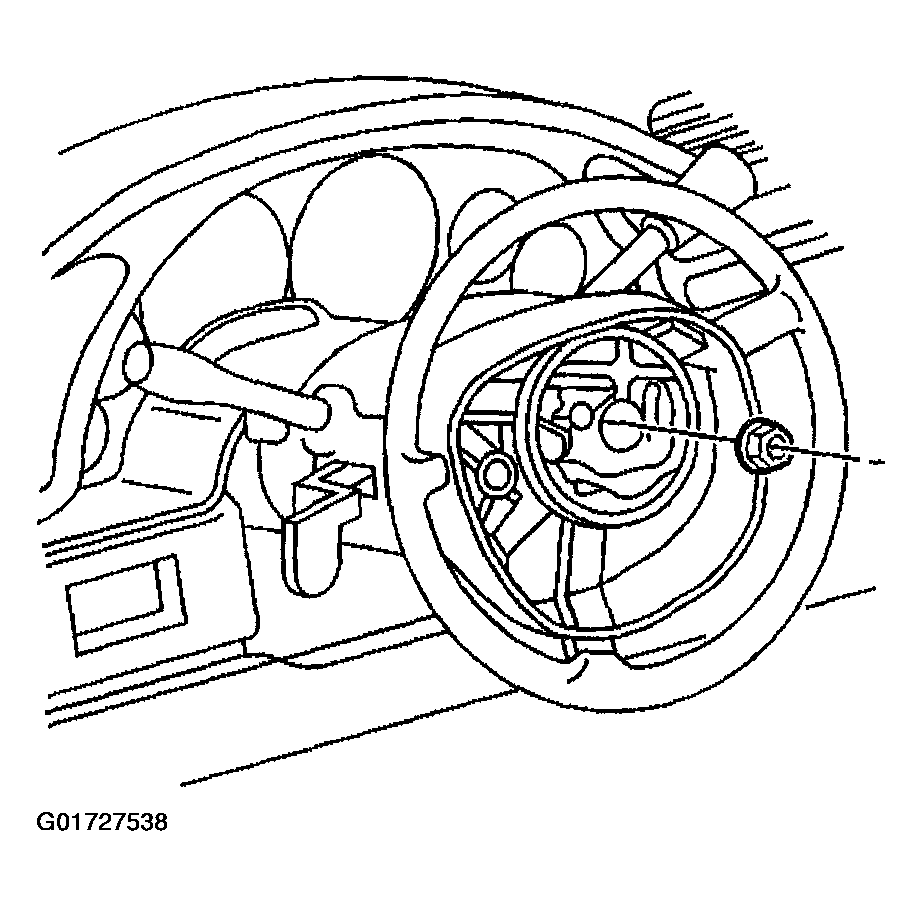

    Fig 1: Installing Steering Wheel Nut
    G01727538Courtesy of GENERAL MOTORS CORP.
  1. Install the steering wheel to the steering column, observing the alignment marks (splines).
    CAUTION: Refer to FASTENER NOTICE .
  2. Install a new steering wheel set nut.

    Tighten

    Tighten the new steering wheel set nut to 41 N.m (30 lb ft).

  3. Remove J 42640  from the steering column.
  4. Connect the horn electrical connector.
  5. Install the steering wheel inflator module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) .
  6. Perform a SIR Diagnostic System Check. Refer to SIR DIAGNOSTIC SYSTEM CHECK .
    Fig 2: Installing Steering Wheel Set Nut
    G01727538Courtesy of GENERAL MOTORS CORP.
