Engine Block - Left Side View

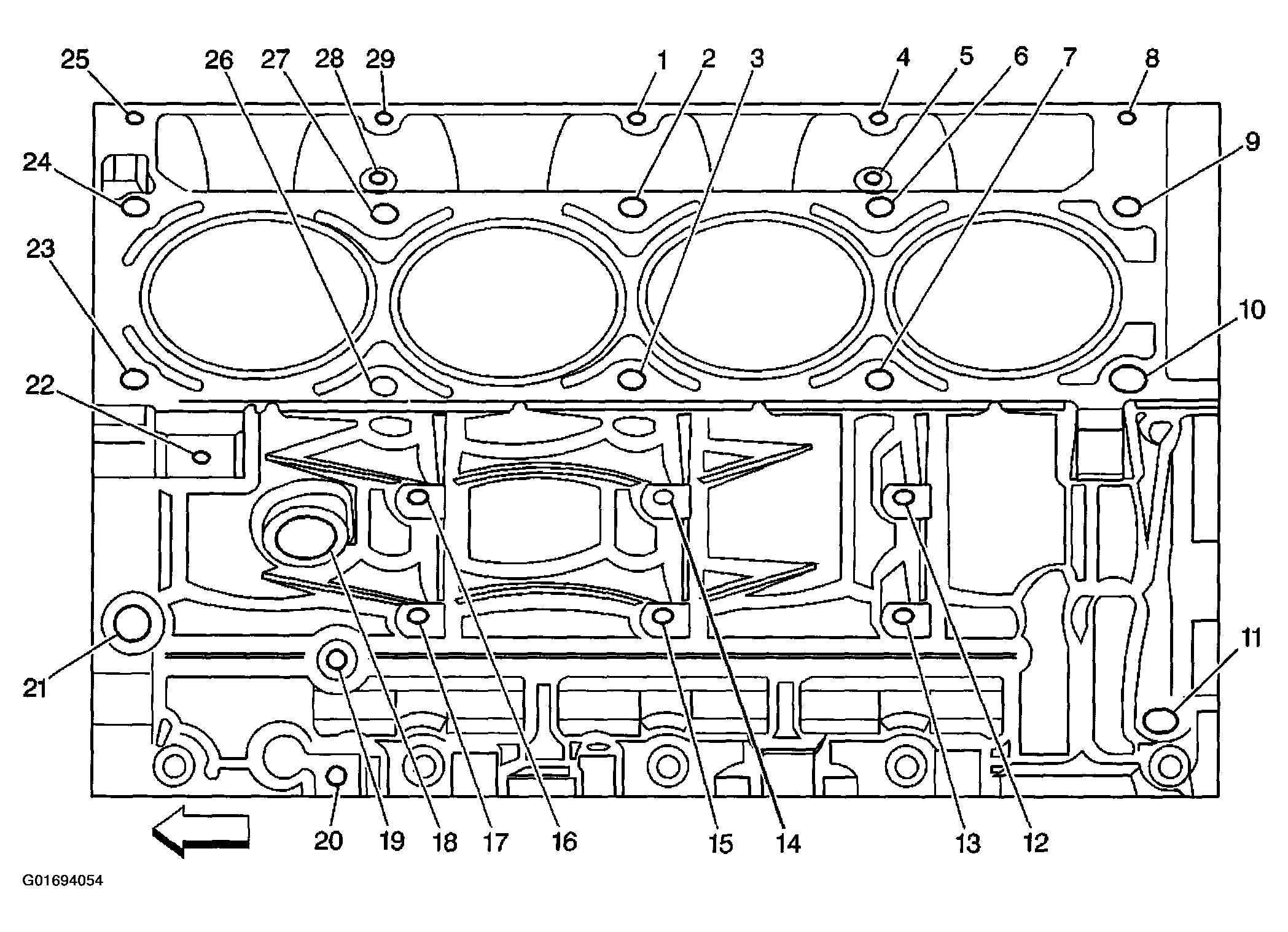

Fig 1: Engine Block - Left Side View
G01694054Courtesy of GENERAL MOTORS CORP.

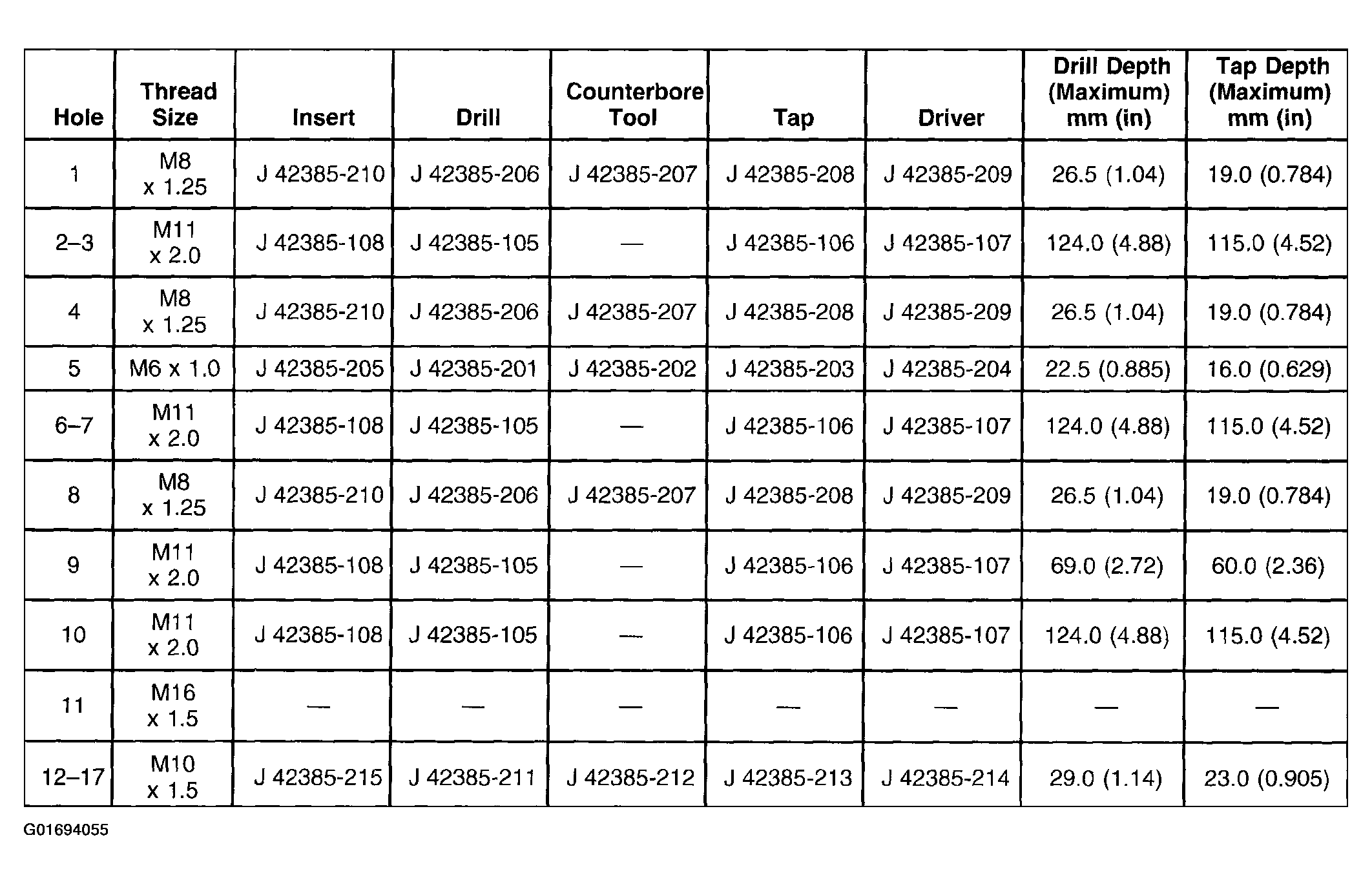

Fig 2: Engine Block Thread Specifications (1 Of 2) - Left Side View
G01694055Courtesy of GENERAL MOTORS CORP.

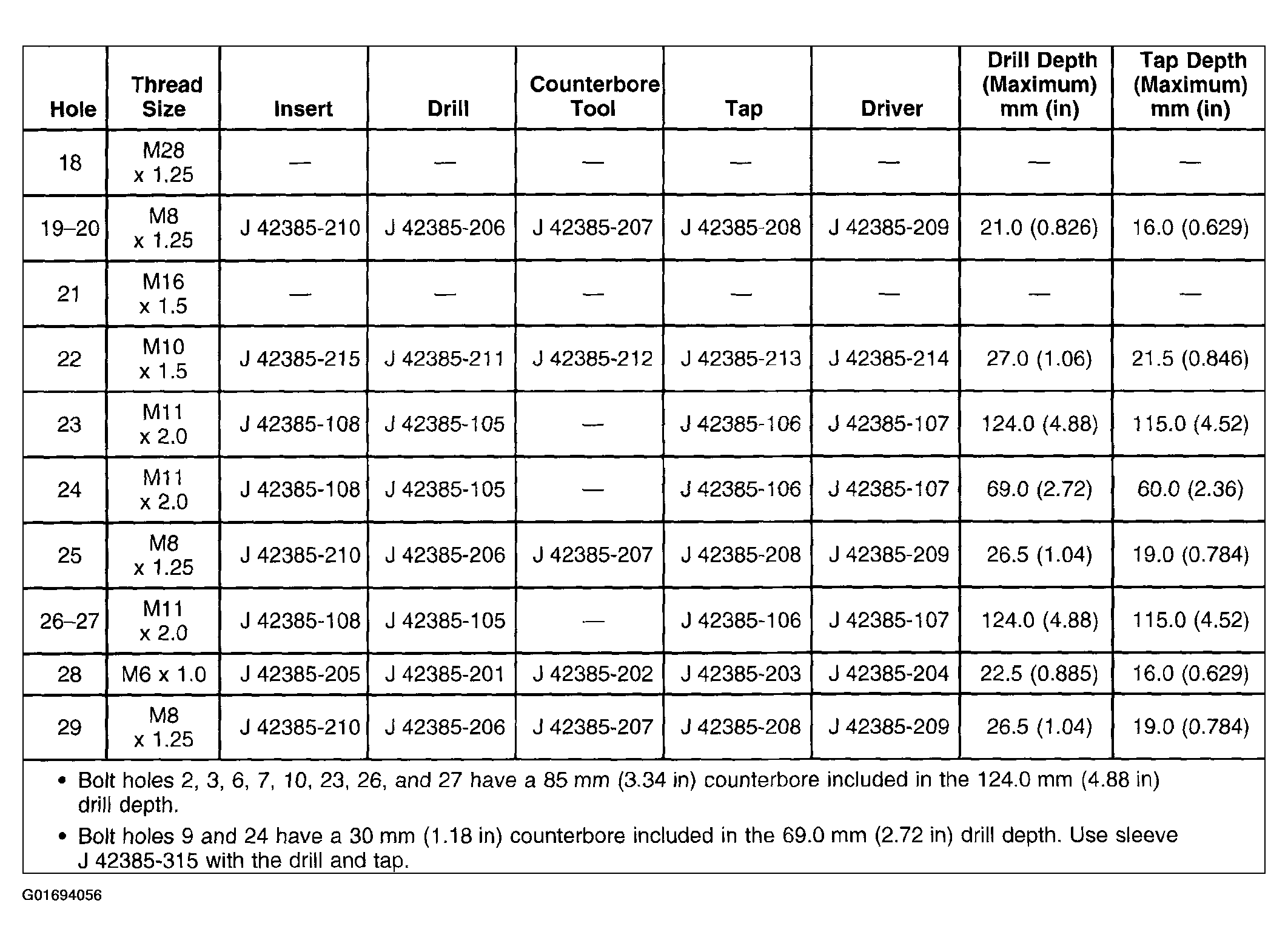

Fig 3: Engine Block Thread Specifications (2 Of 2) - Left Side View
G01694056Courtesy of GENERAL MOTORS CORP.
