Engine Block - Rear View

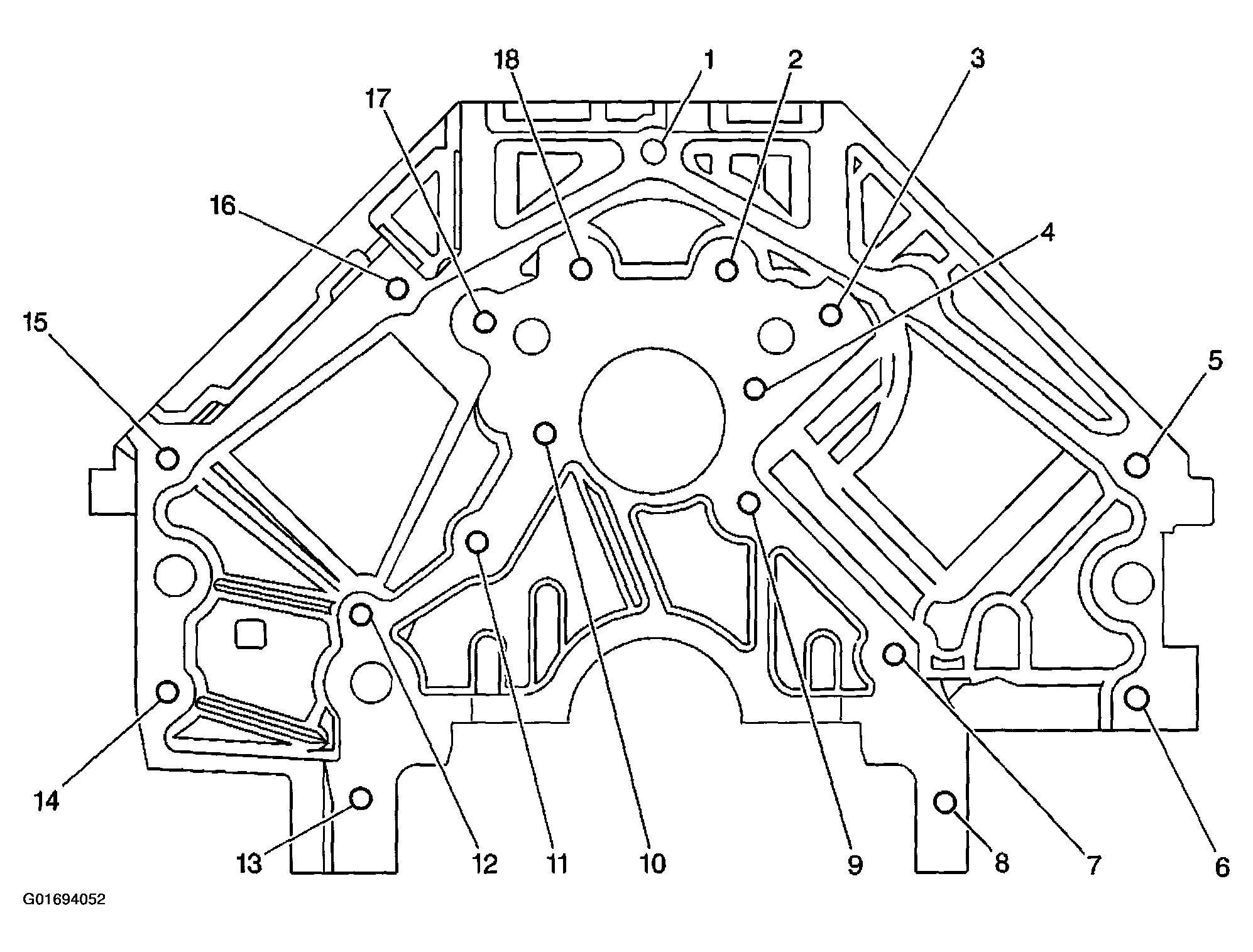

Fig 1: Engine Block - Rear View
G01694052Courtesy of GENERAL MOTORS CORP.

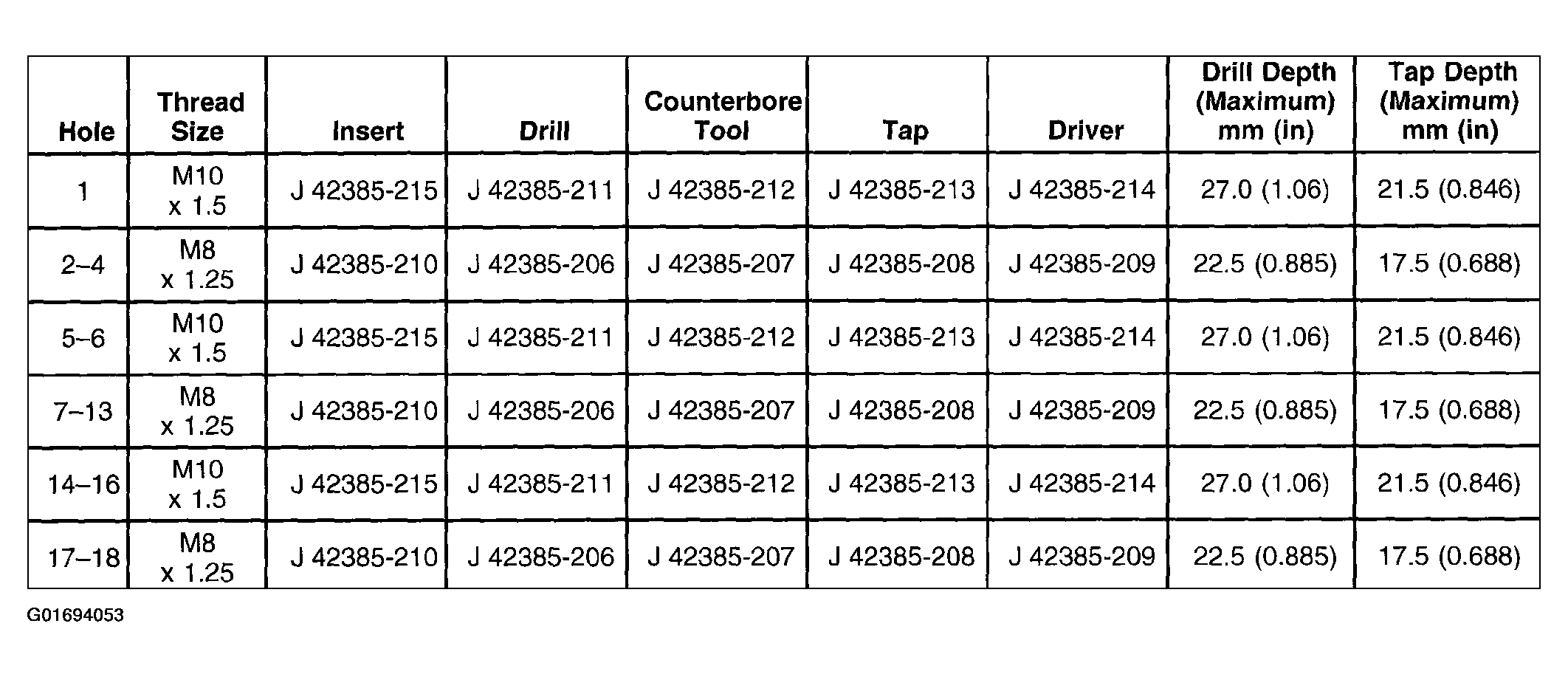

Fig 2: Engine Block Thread Specifications - Rear View
G01694053Courtesy of GENERAL MOTORS CORP.
