Engine Block - Right Side View

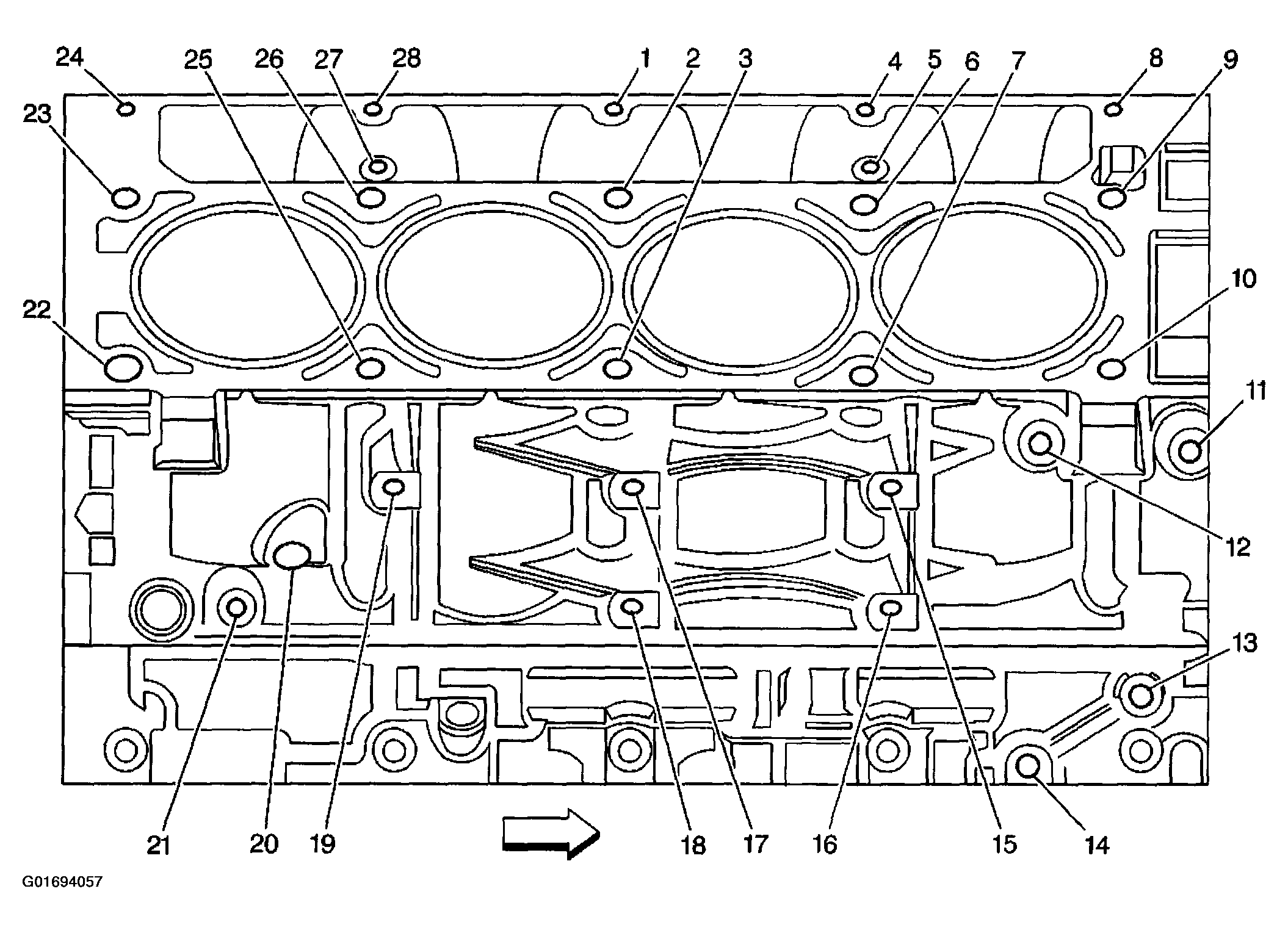

Fig 1: Engine Block - Right Side View
G01694057Courtesy of GENERAL MOTORS CORP.

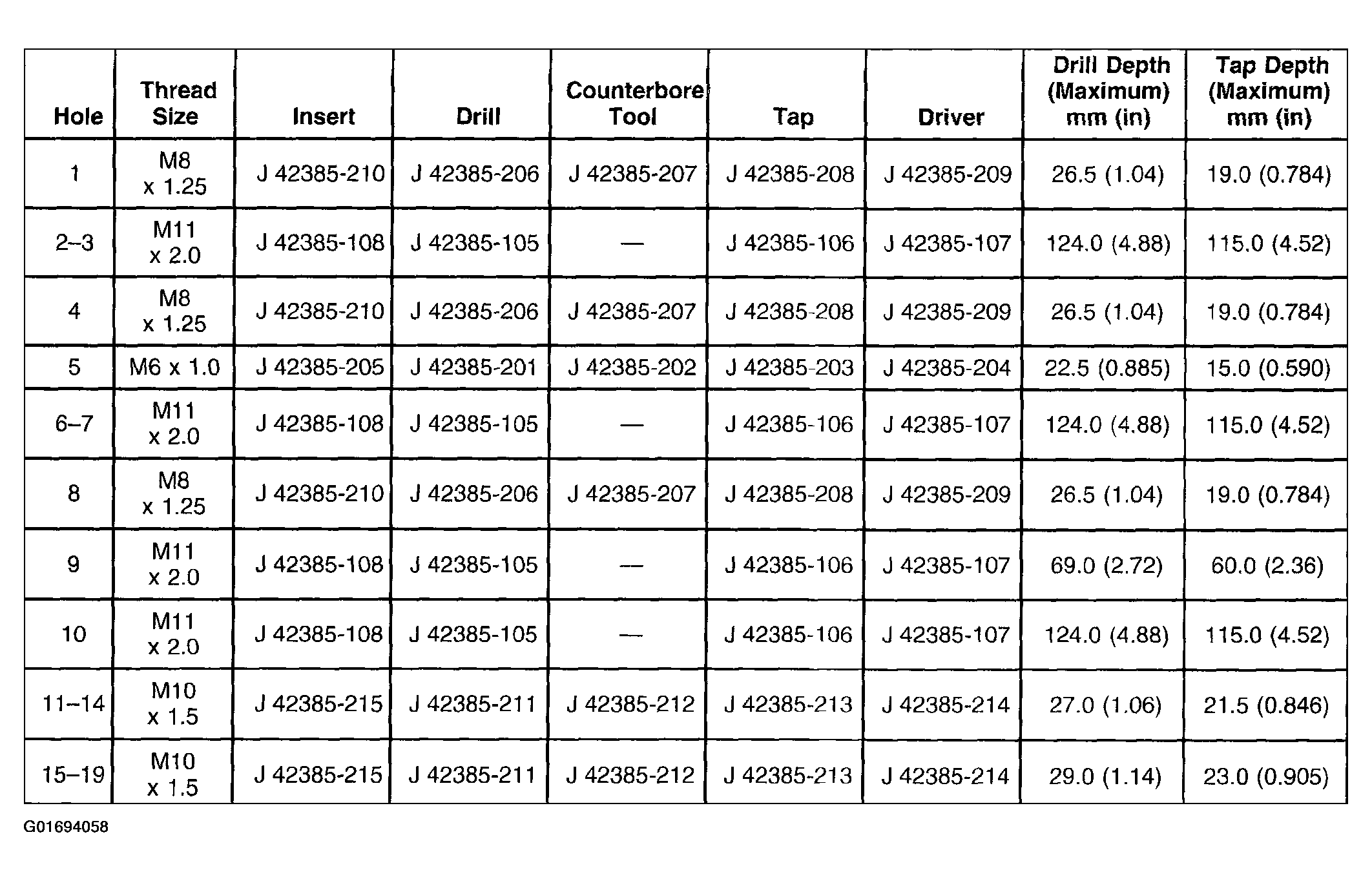

Fig 2: Engine Block Thread Specifications (1 Of 2) - Right Side View
G01694058Courtesy of GENERAL MOTORS CORP.

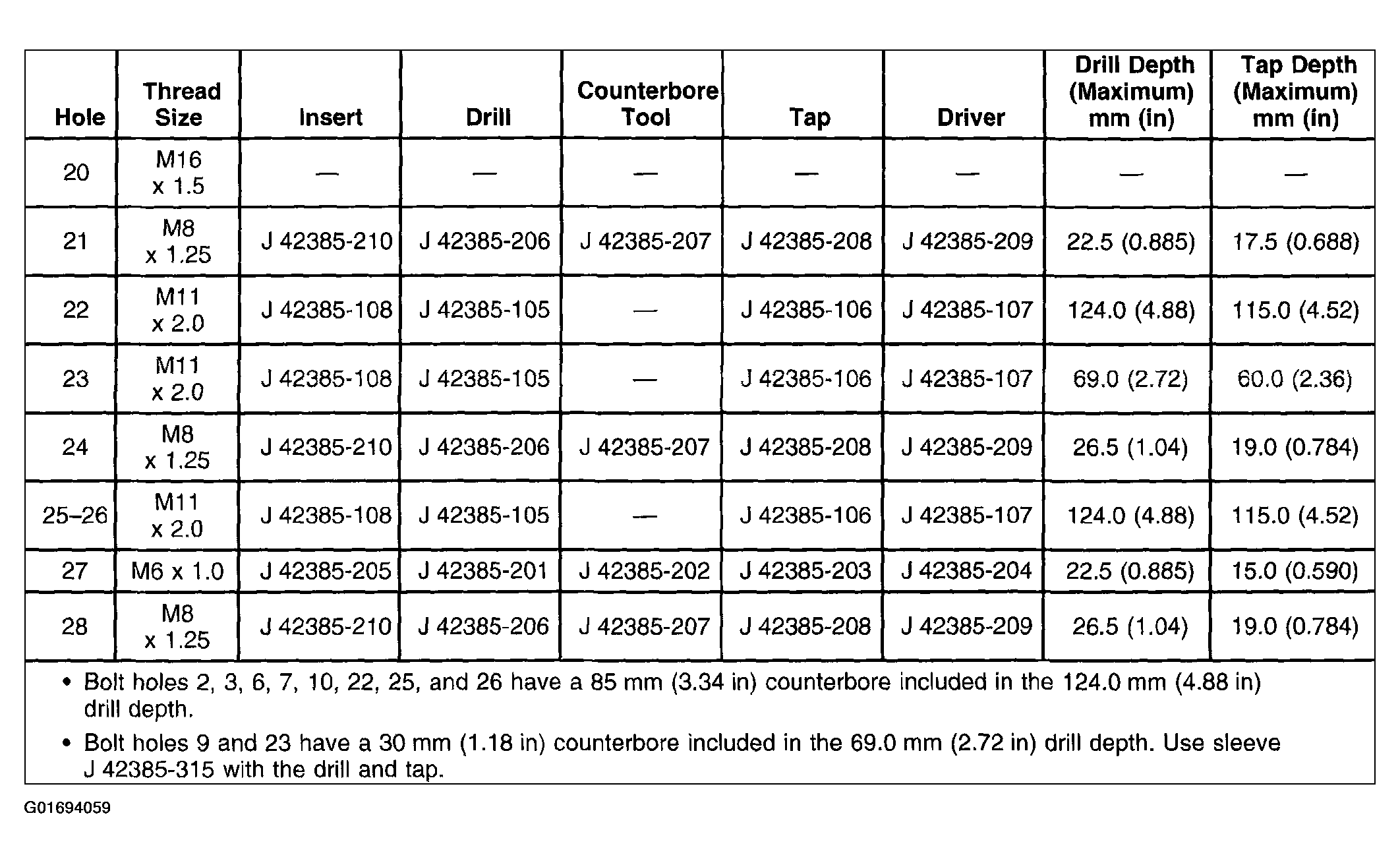

Fig 3: Engine Block Thread Specifications (2 Of 2) - Right Side View
G01694059Courtesy of GENERAL MOTORS CORP.
